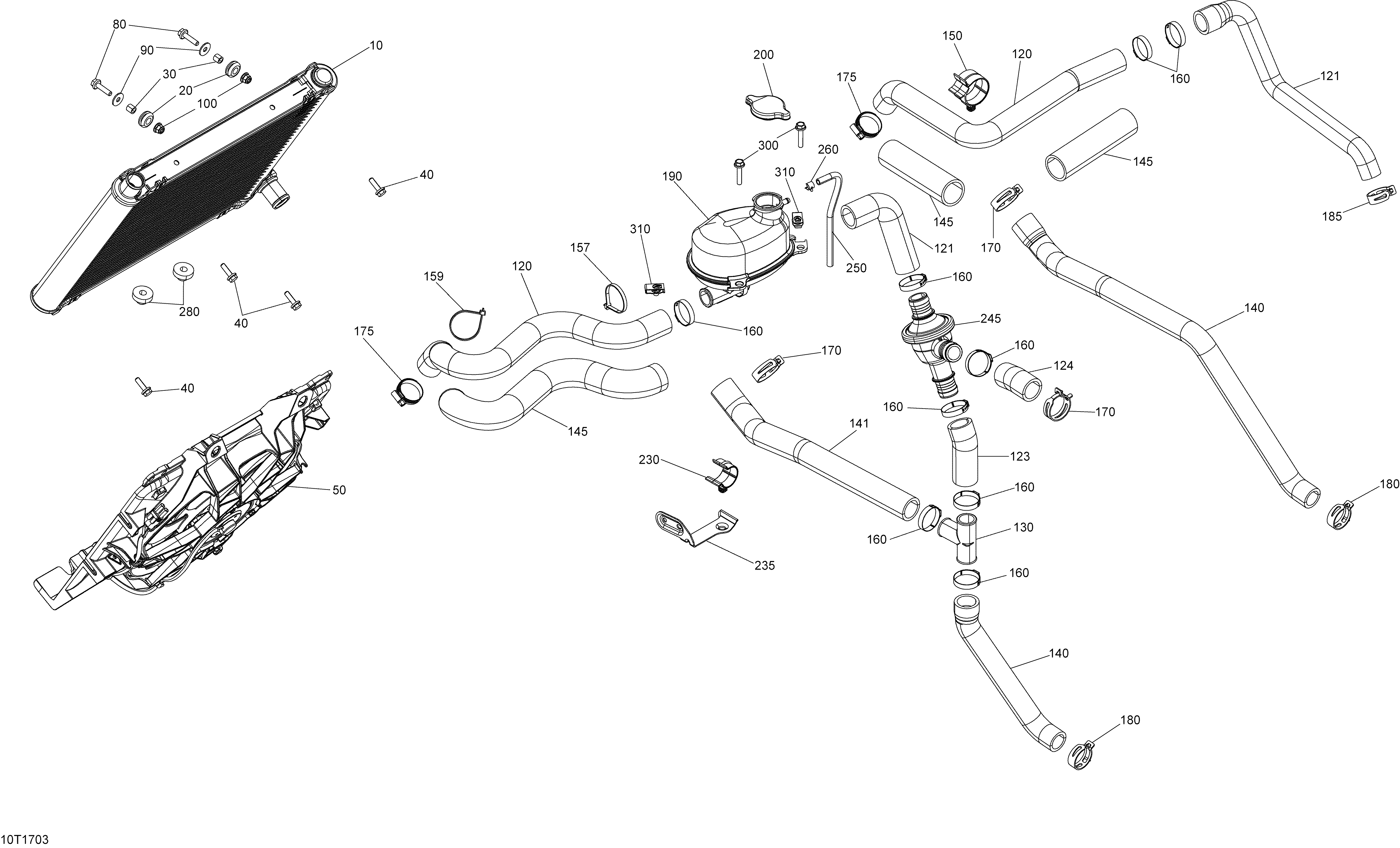

01- Cooling System - All Models для BRP Renegade - 2017
-
№АртикулНазвание
-
10709200286 RadiatorRadiator
-
20293720053 GrommetGrommet
-
30293900105 BushingBushing
-
40207662034 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
50709200563 Fan Ass'y. Engine 570, 850Fan Ass'y. Engine 570, 850
-
50709200564 Fan Ass'y. Engine 1000Fan Ass'y. Engine 1000
-
80207662534 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
90250200082 Flat WasherFlat Washer
-
100233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
120709200278 Radiator Inlet Hose. Except Package XMRRadiator Inlet Hose. Except Package XMR
-
120709200575 Inlet Hose. Package XMRInlet Hose. Package XMR
-
121709200310 Engine Outlet Hose. Engine 570Engine Outlet Hose. Engine 570
-
121709200643 Thermostat Inlet Hose. Engine 850, 1000Thermostat Inlet Hose. Engine 850, 1000
-
123709200629 Cylinder Hose. Engine 850, 1000Cylinder Hose. Engine 850, 1000
-
124709200630 Cylinder Hose. Engine 850, 1000Cylinder Hose. Engine 850, 1000
-
130509000219 T-Fitting. Engine 850, 1000T-Fitting. Engine 850, 1000
-
140709200631 Hose. Engine 850, 1000Hose. Engine 850, 1000
-
140709200637 Radiator Outlet Hose. Engine 570Radiator Outlet Hose. Engine 570
-
141709200638 Radiator Outlet Hose. Engine 850, 1000Radiator Outlet Hose. Engine 850, 1000
-
145515176260 Tubing 35 mmTubing 35 mm
-
150275500590 Retainer. Except Package XMRRetainer. Except Package XMR
-
157414115200 Tie-Rap 180 mm. Package XMRTie-Rap 180 mm. Package XMR
-
159414115200 Tie-Rap 180 mm. Package XMRTie-Rap 180 mm. Package XMR
-
160509000162 Gear ClampGear Clamp
-
170293650166 Norma Spring ClampNorma Spring Clamp
-
175293650098 Norma Gear ClampNorma Gear Clamp
-
180293650108 Norma Spring ClampNorma Spring Clamp
-
185293650109 Norma Spring Clamp. Engine 570Norma Spring Clamp. Engine 570
-
190709200297 Coolant TankCoolant Tank
-
200709200207 Pressure CapPressure Cap
-
230275500526 RetainerRetainer
-
235709200641 Hose SupportHose Support
-
245709200406 Thermostat. Engine 850, 1000Thermostat. Engine 850, 1000
-
250415080200 Hose, PolyurethaneHose, Polyurethane
-
260414554800 Spring ClampSpring Clamp
-
280709200285 GrommetGrommet
-
300207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
310250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
