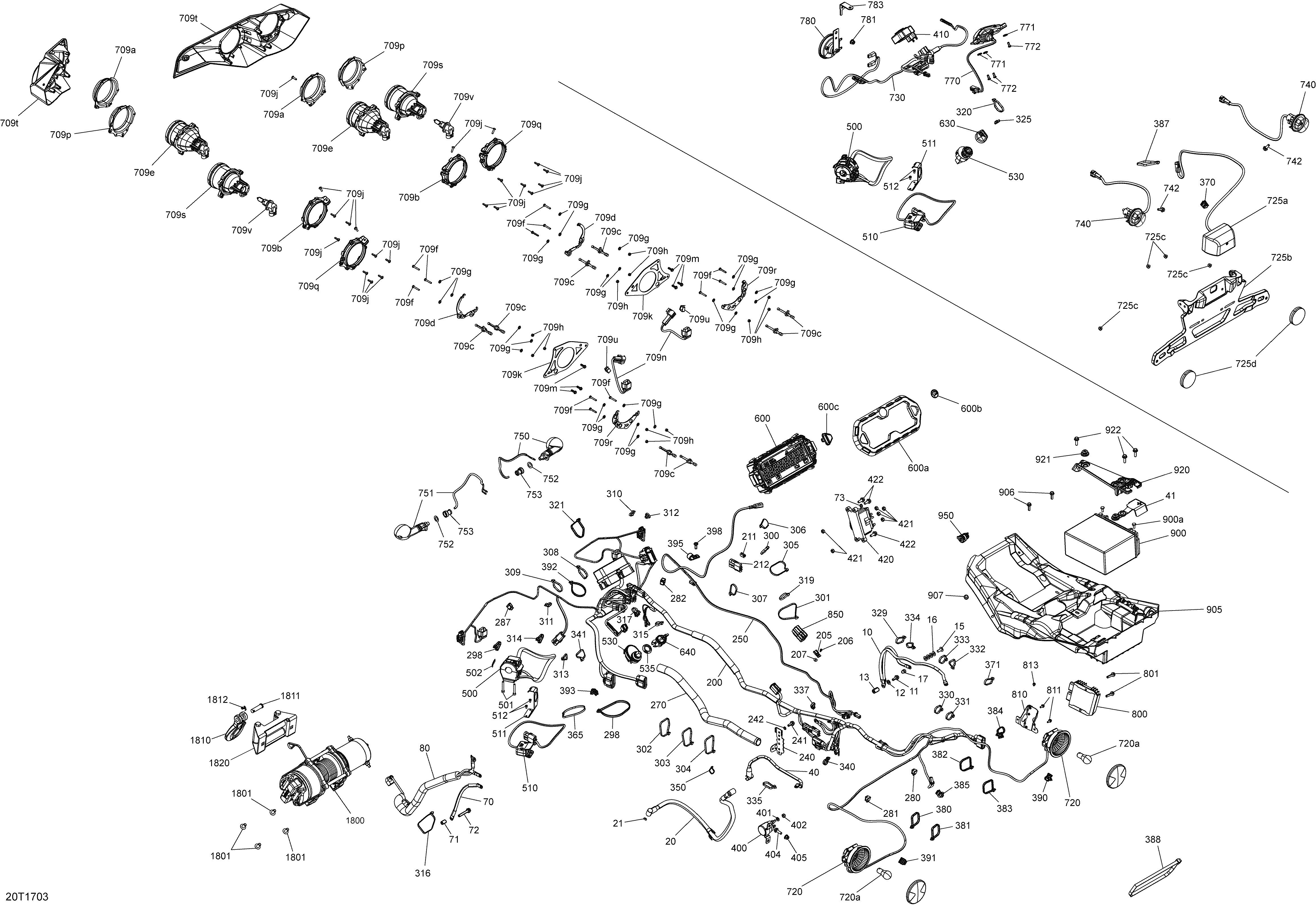

10- Electrical System - All Models для BRP Renegade - 2017
-
№АртикулНазвание
-
10710004382 Ground CableGround Cable
-
11207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. Except Engine 570, 850, EuropeHex. Flanged Screw M6 X 16, Scotch Grip. Except Engine 570, 850, Europe
-
11207564044 Hex. Flanged Screw M6 X 40, Scotch Grip. Engine 570, 850, EuropeHex. Flanged Screw M6 X 40, Scotch Grip. Engine 570, 850, Europe
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
13517203200 Spacer. Engine 570, 850, EuropeSpacer. Engine 570, 850, Europe
-
15250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
16224061121 Flat WasherFlat Washer
-
17232361493 Domed Nut M6Domed Nut M6
-
20710004377 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004375 Connector Ass'y. Model With WinchConnector Ass'y. Model With Winch
-
40710004376 Positive Cable. Model Without WinchPositive Cable. Model Without Winch
-
41710002569 CapCap
-
70710004379 Negative Harness. Model With WinchNegative Harness. Model With Winch
-
71293900078 Sleeve. Model With WinchSleeve. Model With Winch
-
72210264040 Hex Flanged Screw M6 X 40. Model With WinchHex Flanged Screw M6 X 40. Model With Winch
-
73234461608 External Serrated Lock Washer 6 mm. Model With WinchExternal Serrated Lock Washer 6 mm. Model With Winch
-
80710004378 Winch Cables. Model With WinchWinch Cables. Model With Winch
-
200710005005 Main Harness. EuropeMain Harness. Europe
-
200710005036 Main Harness. Except EuropeMain Harness. Except Europe
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
211710000992 Clip. Model With WinchClip. Model With Winch
-
212710000917 Connector Ass'y. Model Without WinchConnector Ass'y. Model Without Winch
-
240710004118 Connector BracketConnector Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
250710004324 Brake HarnessBrake Harness
-
270710003260 Protective Tubing. Package XMRProtective Tubing. Package XMR
-
280414227300 ClipClip
-
281414227300 ClipClip
-
282414227300 ClipClip
-
287414227300 Clip. EuropeClip. Europe
-
298414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
298293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
300414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
301293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
302293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
303293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
304293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
305293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
306293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
307293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
308293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
309293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
310414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
311414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
312414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
312414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
313414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
313414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
314414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
315414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
316293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
317710002896 Tie-Rap ClipTie-Rap Clip
-
319293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
320293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
321293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
325414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
329414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
330414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
331414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
332414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
333414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
334414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
335414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
337293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
340414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
341414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
350293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
365293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
370710002896 Tie-Rap ClipTie-Rap Clip
-
371414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
380414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
381414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
382414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
383414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
384710002896 Tie-Rap ClipTie-Rap Clip
-
385710002896 Tie-Rap ClipTie-Rap Clip
-
387293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
388293750041 Tie-rap 627 mmTie-rap 627 mm
-
390710002896 Tie-Rap ClipTie-Rap Clip
-
391710002896 Tie-Rap ClipTie-Rap Clip
-
392293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
393710002896 Tie-Rap ClipTie-Rap Clip
-
395518321570 Open Clamp. Package XMROpen Clamp. Package XMR
-
398250000720 Torx Screw K50 X 16. Package XMRTorx Screw K50 X 16. Package XMR
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
410710003239 Flasher Unit. EuropeFlasher Unit. Europe
-
420710001000 Winch Solenoid. Model With WinchWinch Solenoid. Model With Winch
-
421232561414 Elastic Stop Nut M6. Model With WinchElastic Stop Nut M6. Model With Winch
-
422210262040 Hex. Flanged Screw M6 X 20. Model With WinchHex. Flanged Screw M6 X 20. Model With Winch
-
500710004040 Multi-Function Handle. EuropeMulti-Function Handle. Europe
-
500710005070 Multi-Function Handle. Package XXC Except EuropeMulti-Function Handle. Package XXC Except Europe
-
500710005070 Multi-Function Handle. Package XMRMulti-Function Handle. Package XMR
-
500710005072 Multi-Function Handle. Package STDMulti-Function Handle. Package STD
-
501205053588 Socket Head Screw M5 X 35. Except EuropeSocket Head Screw M5 X 35. Except Europe
-
502704901835 DPS Label. Package XXC EuropeDPS Label. Package XXC Europe
-
510710005241 Winch Switch. Model With WinchWinch Switch. Model With Winch
-
511710004670 Black Support. Model With WinchBlack Support. Model With Winch
-
512250000153 Hex. Cap Screw 6-32 X 1/4''. Model With WinchHex. Cap Screw 6-32 X 1/4''. Model With Winch
-
530515178225 DESS Switch. Except EuropeDESS Switch. Except Europe
-
530710004570 Ignition Switch. EuropeIgnition Switch. Europe
-
535278002963 Safety Nut. Except EuropeSafety Nut. Except Europe
-
600>600c710005087 Speedometer. Includes 600 to 600cSpeedometer. Includes 600 to 600c
-
600a710001183 Trim Ring Ass'yTrim Ring Ass'y
-
600b704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
600c715900265 ButtonButton
-
630710000817 Black-Electronic Key. EuropeBlack-Electronic Key. Europe
-
630710005232 Green Key RFID. Except EuropeGreen Key RFID. Except Europe
-
640710004964 Grey Key RFID. Except EuropeGrey Key RFID. Except Europe
-
709a710001083 LH Low Front HousingLH Low Front Housing
-
709a710001081 RH Low Front HousingRH Low Front Housing
-
709b710001084 LH Low Rear HousingLH Low Rear Housing
-
709b710001082 RH Low Rear HousingRH Low Rear Housing
-
709c710001147 Setting ScrewSetting Screw
-
709d710001037 LH Low Light SupportLH Low Light Support
-
709d710001094 RH Low Light SupportRH Low Light Support
-
709e710002524 Low Beam Ass'yLow Beam Ass'y
-
709f207142544 Hex. Screw M4 X 25Hex. Screw M4 X 25
-
709g234051410 Flat Washer M5Flat Washer M5
-
709h232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
709j250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
709k705004309 Painted Headlamp SupportPainted Headlamp Support
-
709m241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
709n710004326 Light HarnessLight Harness
-
709p710001087 LH High Front HousingLH High Front Housing
-
709p710001085 RH High Front HousingRH High Front Housing
-
709q710001088 LH High Rear HousingLH High Rear Housing
-
709q710001086 RH High Rear HousingRH High Rear Housing
-
709r710001036 LH High Light SupportLH High Light Support
-
709r710001115 RH High Light SupportRH High Light Support
-
709s710002525 High Beam Ass'yHigh Beam Ass'y
-
709t705004508 LH Front FaciaLH Front Facia
-
709t705004509 RH Front FaciaRH Front Facia
-
709u414227300 ClipClip
-
709v415129249 Halogen BulbHalogen Bulb
-
720>720a710001645 Tail Light. Includes 720 to 720aTail Light. Includes 720 to 720a
-
720a520000758 Bulb. EuropeBulb. Europe
-
725a710002721 Licence Light. EuropeLicence Light. Europe
-
725b708300553 Plate Support. EuropePlate Support. Europe
-
725c233251434 Flanged Elastic Nut M5. EuropeFlanged Elastic Nut M5. Europe
-
725d705002408 Red Reflector. EuropeRed Reflector. Europe
-
730710004680 Main Harness Ass'y. EuropeMain Harness Ass'y. Europe
-
740710002964 Flasher. EuropeFlasher. Europe
-
742207561244 Hex. Flanged Screw M6 X 12, Scotch Grip. EuropeHex. Flanged Screw M6 X 12, Scotch Grip. Europe
-
750710005000 Flasher. EuropeFlasher. Europe
-
751710005001 Flasher. EuropeFlasher. Europe
-
752503175800 Washer. EuropeWasher. Europe
-
753710001826 Cap Guard. EuropeCap Guard. Europe
-
770710001042 Day Light. EuropeDay Light. Europe
-
771250200081 Flat Washer. EuropeFlat Washer. Europe
-
772241641040 Phillips Screw K40 X 10. EuropePhillips Screw K40 X 10. Europe
-
780710004791 Horn. EuropeHorn. Europe
-
781233261414 Hex. Flanged Elastic Nut M6. EuropeHex. Flanged Elastic Nut M6. Europe
-
783709200284 Support. EuropeSupport. Europe
-
800710001103 Voltage Regulator. Package STD Except EuropeVoltage Regulator. Package STD Except Europe
-
800710001191 Voltage Regulator. Package STD EuropeVoltage Regulator. Package STD Europe
-
800710001191 Voltage Regulator. Package XXCVoltage Regulator. Package XXC
-
800710001191 Voltage Regulator. Package XMRVoltage Regulator. Package XMR
-
801210262550 Hex. Flanged Forming Screw M6 X 25Hex. Flanged Forming Screw M6 X 25
-
810710002587 Rectifier SupportRectifier Support
-
811207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
813293830005 Rubber BumperRubber Bumper
-
850710003006 HousingHousing
-
900>900a410301203 Battery Ass'y, 18 Amperes. Includes 900 a 900aBattery Ass'y, 18 Amperes. Includes 900 a 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
905710003990 Battery TrayBattery Tray
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
920710002404 Fixation PlateFixation Plate
-
921705003666 Rubber GrommetRubber Grommet
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
1800705008546 Winch. Model With WinchWinch. Model With Winch
-
1801250000746 Torx Truss Screw M8 X 16. Model With WinchTorx Truss Screw M8 X 16. Model With Winch
-
1810705002329 Hook. Model With WinchHook. Model With Winch
-
1811250400021 Clevis Pin. Model With WinchClevis Pin. Model With Winch
-
1812250400022 Cotter Pin. Model With WinchCotter Pin. Model With Winch
-
1820715000011 Winch Roller. Model With WinchWinch Roller. Model With Winch
Все узлы модели:
- 00- Model Numbers
- 01- Cooling System - All Models
- 01- Crankcase - 1000R EFI (Except XMR)
- 01- Crankcase - 1000R EFI (XMR)
- 01- Crankcase - 570 EFI
- 01- Crankcase - 850 EFI
- 01- Crankshaft and Pistons - 570 EFI
- 01- Crankshaft, Piston and Cylinder - 1000R EFI
- 01- Crankshaft, Piston and Cylinder - 850 EFI
- 01- Cylinder Head, Front - 1000R EFI
- 01- Cylinder Head, Front - 570 EFI
- 01- Cylinder Head, Front - 850 EFI
- 01- Cylinder Head, Rear - 1000R EFI
- 01- Cylinder Head, Rear - 570 EFI
- 01- Cylinder Head, Rear - 850 EFI
- 01- Engine And Engine Support - Except XMR
- 01- Engine And Engine Support - XMR
- 01- Engine Cooling - 1000R EFI
- 01- Engine Cooling - 570 EFI
- 01- Engine Cooling - 850 EFI
- 01- Engine Lubrication - 1000R EFI
- 01- Engine Lubrication - 570 EFI
- 01- Engine Lubrication - 850 EFI
- 01- Exhaust System - All Models
- 01- Gear Box and Components - 570 EFI
- 01- Gear Box and Components - 850 EFI Except XMR
- 01- Gear Box and Components - Renegade STD-XXC 1000R EFI
- 01- Gear Box and Components - Renegade XMR 1000R EFI
- 01- Gear Box Assy - 570 EFI
- 01- Gear Box Assy - 850 EFI
- 01- Gear Box Assy - Renegade STD-XXC 1000R EFI
- 01- Gear Box Assy - Renegade XMR 1000R EFI
- 01- Gear Box Output Shaft - 570 EFI
- 01- Gear Box Output Shaft - 850 EFI
- 01- Gear Box Output Shaft - Renegade STD-XXC 1000R EFI
- 01- Gear Box Output Shaft - Renegade XMR 1000R EFI
- 02- Air Intake Manifold and Throttle Body - 1000R EFI
- 02- Air Intake Manifold and Throttle Body - 570 EFI
- 02- Air Intake Manifold and Throttle Body - 850 EFI
- 02- Air Intake Silencer - All Models
- 02- Fuel System - All Models
- 03- Magneto and Electric Starter - 1000R EFI (Renegade)_2
- 03- Magneto and Electric Starter - 570 EFI (Renegade)
- 03- Magneto and Electric Starter - 850 EFI (Renegade)
- 05- Transmission - 1000R EFI (Renegade)
- 05- Transmission - 570 EFI
- 05- Transmission - 850 EFI (Renegade)
- 06- Brakes - All Models
- 07- Drive System, Front - All Models
- 07- Front Suspension - All Models
- 07- Steering - All Models
- 08- Drive Shaft - 1000R EFI
- 08- Drive Shaft - 570 EFI
- 08- Drive Shaft - 850 EFI
- 08- Drive, Rear Renegade - 1000R
- 08- Drive, Rear Renegade - 570
- 08- Drive, Rear Renegade - 850
- 08- Drive, Rear Renegade - Rear Differential - Except Package XMR 1000R
- 08- Drive, Rear Renegade - Rear Differential - Package XMR 1000R
- 08- Rear Suspension - All Models
- 09- Body And Accessories - All Models
- 09- Decals - All Models
- 09- Frame - All Models
- 09- Rear Cargo Box - All Models
- 09- Seat - All Models
- 10- Electrical Harness - Europe 710004680
- 10- Electrical Harness - Main 710005005 Europe
- 10- Electrical Harness - Main 710005036 Except Europe
- • 10- Electrical System - All Models
- 10- Engine Harness and Electronic Module - 1000R EFI (Renegade)_2
- 10- Engine Harness and Electronic Module - 570 EFI (Renegade)
- 10- Engine Harness and Electronic Module - 850 EFI (Renegade)
