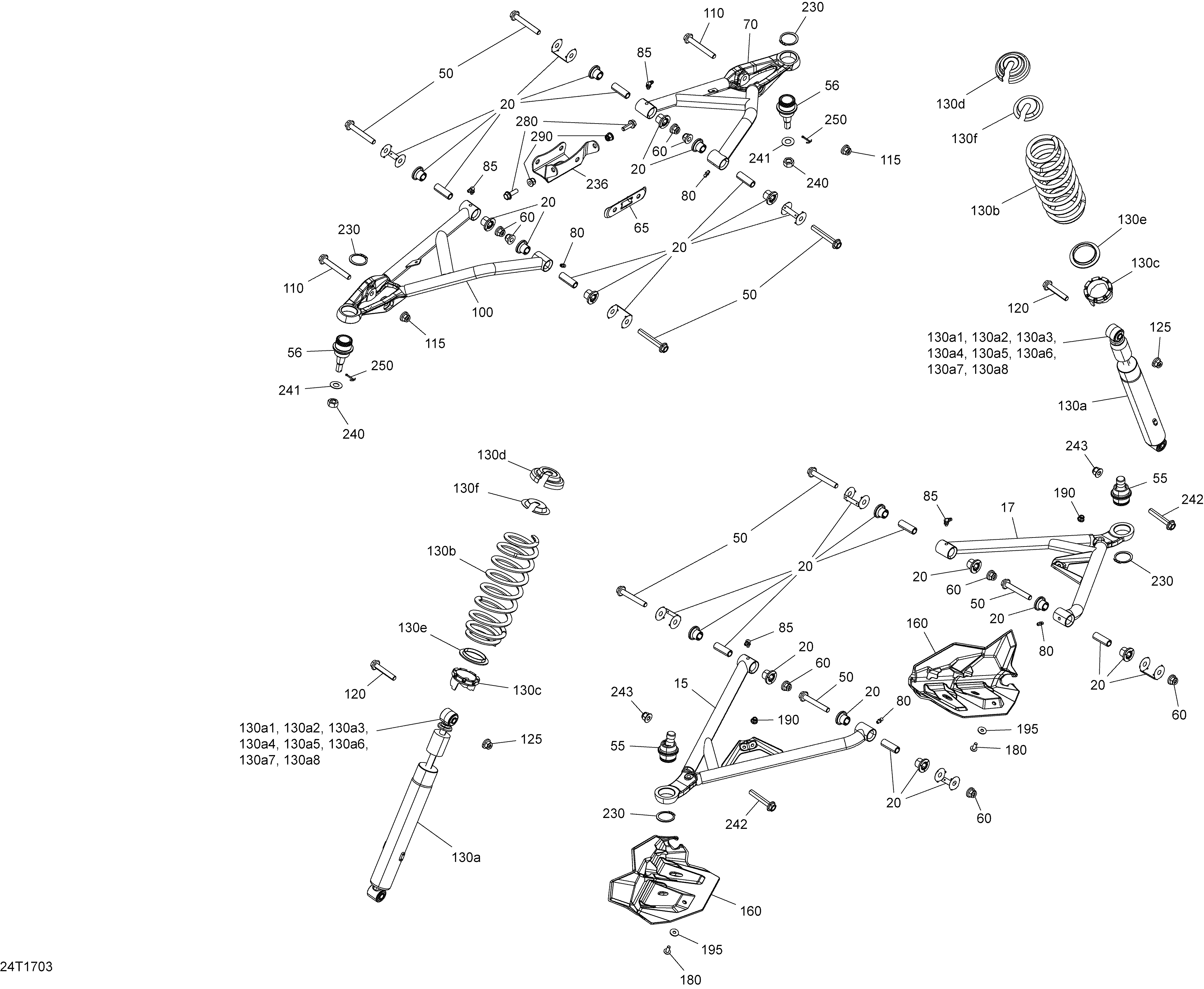

07- Front Suspension - All Models для BRP Renegade - 2017
-
№АртикулНазвание
-
15706201874 Black LH Lower ArmBlack LH Lower Arm
-
17706201875 Black RH Lower ArmBlack RH Lower Arm
-
20703500875 Bushing KitBushing Kit
-
20703500875 Bushing KitBushing Kit
-
20703500875 Bushing KitBushing Kit
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706202045 Ball JointBall Joint
-
56706202044 Ball JointBall Joint
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
65706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
70706201797 Black RH Upper ArmBlack RH Upper Arm
-
80408200700 Grease FittingGrease Fitting
-
85293550056 Grease Fitting 90°Grease Fitting 90°
-
100706201796 Black LH Upper ArmBlack LH Upper Arm
-
110207607587 Flanged Hex. Screw M10 X 75Flanged Hex. Screw M10 X 75
-
115233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
120207605546 Hex. Flanged Screw M10 X 55Hex. Flanged Screw M10 X 55
-
125233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
130a706201170 Front Shock. Package STD, Moteur 570Front Shock. Package STD, Moteur 570
-
130a706202113 Shock Absorber. Package STD, Engine 850, 1000Shock Absorber. Package STD, Engine 850, 1000
-
130a706202113 Shock Absorber. Package XMR, Moteur 570Shock Absorber. Package XMR, Moteur 570
-
130a1>130a8706202735 Shock Absorber. Package XMR, Engine 1000RShock Absorber. Package XMR, Engine 1000R
-
130a1>130a7706202117 Shock Absorber. Package XXCShock Absorber. Package XXC
-
130a1715900209 O-Ring Bushing. Package XXCO-Ring Bushing. Package XXC
-
130a2715900210 Interior Bushing. Package XXCInterior Bushing. Package XXC
-
130a3706201584 Bushing. Package STD, Engine 850, 1000Bushing. Package STD, Engine 850, 1000
-
130a3706201584 Bushing. Package XMR, Moteur 570Bushing. Package XMR, Moteur 570
-
130a3706201648 Bushing. Package XXC, XMR, Engine 1000RBushing. Package XXC, XMR, Engine 1000R
-
130a4706201585 Bushing Sleeve. Except Package STD, Engine 570Bushing Sleeve. Except Package STD, Engine 570
-
130a5706201586 Bushing Sleeve. Except Package STD, Engine 570Bushing Sleeve. Except Package STD, Engine 570
-
130a6715900251 Spherical Bearing. Package XXCSpherical Bearing. Package XXC
-
130a6715900336 Ball Journal. Package XMR, Engine 1000RBall Journal. Package XMR, Engine 1000R
-
130a7715900252 Retaining Ring. Package XXC, XMR, Engine 1000RRetaining Ring. Package XXC, XMR, Engine 1000R
-
130a8715900331 Protector. Package XMR, Engine 1000RProtector. Package XMR, Engine 1000R
-
130b706202555 Red Spring. Package STD, Moteur 570Red Spring. Package STD, Moteur 570
-
130b706202628 Red Spring. Package XXC, Model Red/White/BlackRed Spring. Package XXC, Model Red/White/Black
-
130b706202628 Red Spring. Package XMR, Model Red/White/BlackRed Spring. Package XMR, Model Red/White/Black
-
130b706202631 Black Spring. Package XXC, Model BlackBlack Spring. Package XXC, Model Black
-
130b706202663 Blue Spring. Package XMR, Model Gulfstream BlueBlue Spring. Package XMR, Model Gulfstream Blue
-
130b706202674 Red Spring. Package STD, Engine 850, 1000Red Spring. Package STD, Engine 850, 1000
-
130b706202674 Red Spring. Package XMR, Moteur 570Red Spring. Package XMR, Moteur 570
-
130c505073625 Adjustment Cam. Package STD, Moteur 570Adjustment Cam. Package STD, Moteur 570
-
130d706200881 Spring Stopper. Package STD, Moteur 570Spring Stopper. Package STD, Moteur 570
-
130e503187500 Spring Guide. Package STD, Moteur 570Spring Guide. Package STD, Moteur 570
-
130f706200785 Cap. Package STD, Moteur 570Cap. Package STD, Moteur 570
-
160706201829 LH Joint ProtectorLH Joint Protector
-
160706201830 RH Joint ProtectorRH Joint Protector
-
180250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
190233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
195234062670 Flat Washer, StainlessFlat Washer, Stainless
-
230293370035 CirclipCirclip
-
236705203247 Upper Front HolderUpper Front Holder
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
242207606044 Hex. Flange Screw M10 X 60Hex. Flange Screw M10 X 60
-
243233201434 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
250211400017 Cotter PinCotter Pin
-
280207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
