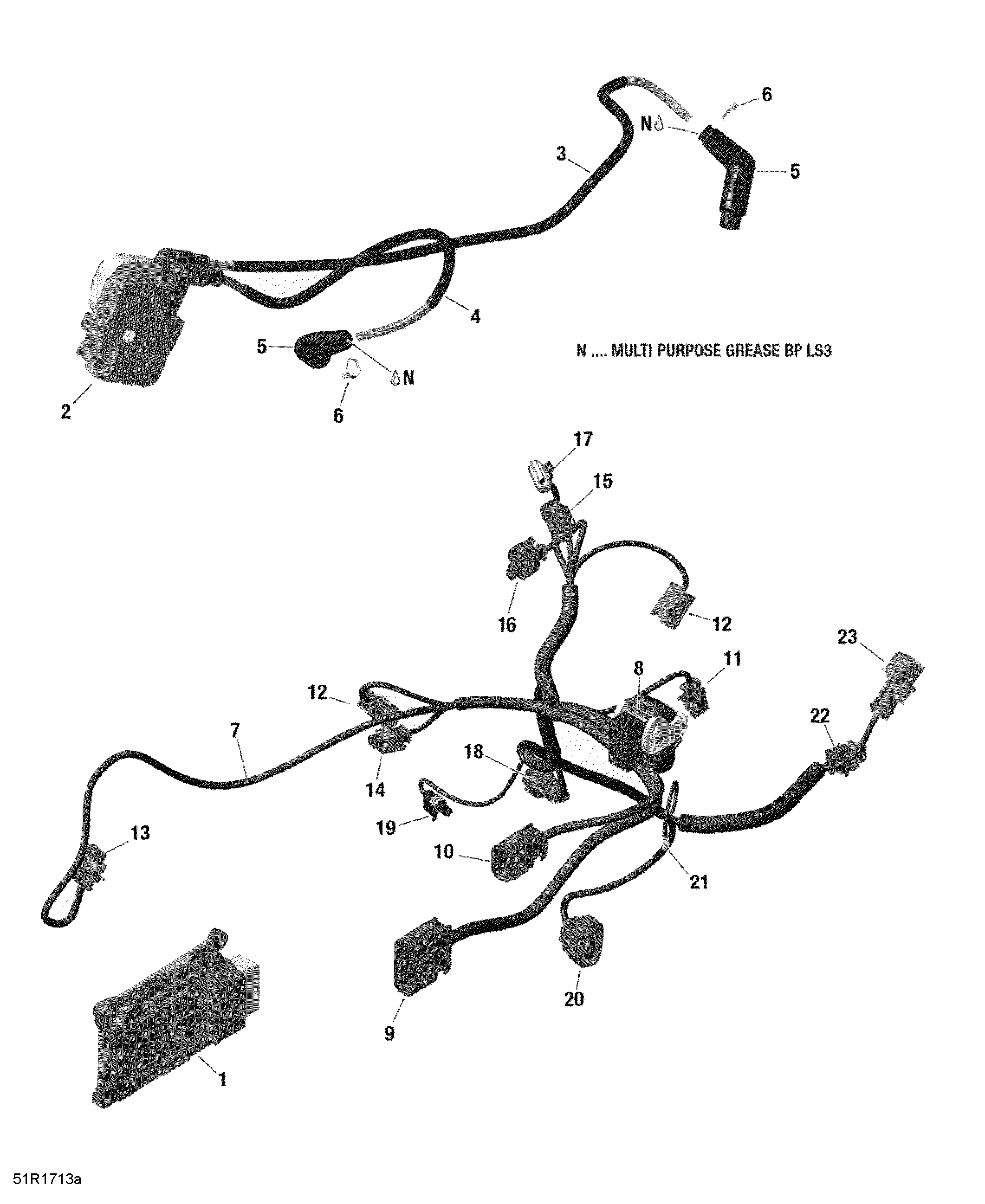

10- Engine Harness and Electronic Module - 1000R EFI (Renegade)_2 для BRP Renegade - 2017
-
№АртикулНазвание
-
1420666996 ECM, Engine Control Module. Except XMR, Except EuropeECM, Engine Control Module. Except XMR, Except Europe
-
1420666998 ECM, Engine Control Module. Package XMRECM, Engine Control Module. Package XMR
-
1420666997 ECM, Engine Control Module. EuropeECM, Engine Control Module. Europe
-
2a278001546 Ignition Coil. Includes 2a to 2bIgnition Coil. Includes 2a to 2b
-
2b710000568 HousingHousing
-
3420464155 Spark Plug Cable, 315 mm, MAG SideSpark Plug Cable, 315 mm, MAG Side
-
4420464165 Spark Plug Cable, 530 mm, PTO SideSpark Plug Cable, 530 mm, PTO Side
-
5420265020 Spark Plug ConnectorSpark Plug Connector
-
6420866710 Tie RapTie Rap
-
7>23420666573 Engine Wiring Harness. Includes 7 to 23, Except XMREngine Wiring Harness. Includes 7 to 23, Except XMR
-
7>23420666507 Engine Wiring Harness. Includes 7 to 23, Package XMREngine Wiring Harness. Includes 7 to 23, Package XMR
-
9710001227 HousingHousing
-
10710001927 HousingHousing
-
11278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
13278000997 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
14278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
15278001829 Housing Connector, 3 CircuitsHousing Connector, 3 Circuits
-
16515176410 Housing ConnectorHousing Connector
-
17710001169 ConnectorConnector
-
18409207000 ConnectorConnector
-
19278001012 Male Housing, 1 CircuitMale Housing, 1 Circuit
-
20710000329 Male Housing, 4 CircuitsMale Housing, 4 Circuits
-
21a278001007 Insulated SheathInsulated Sheath
-
22a278001007 Insulated SheathInsulated Sheath
