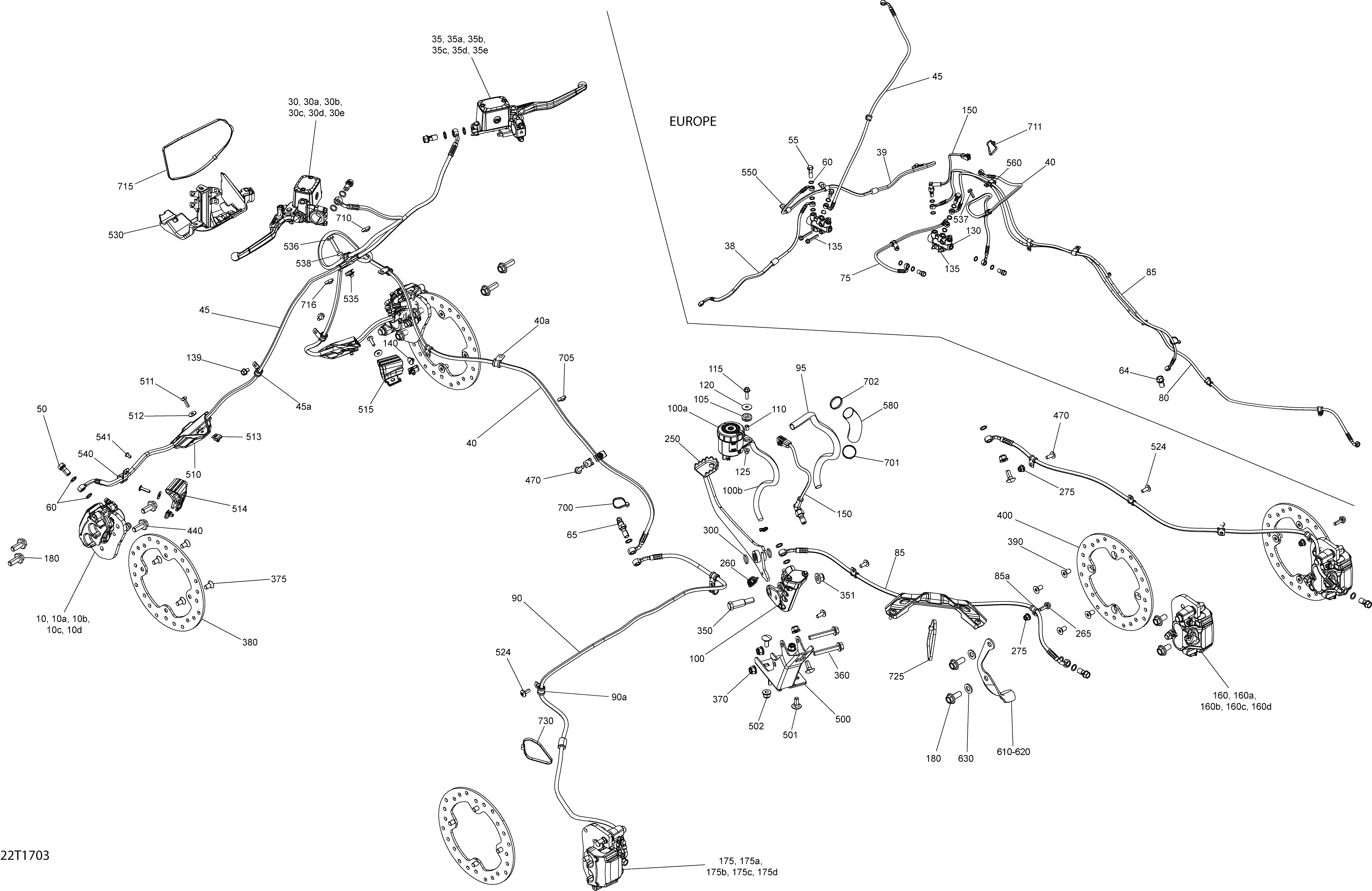

06- Brakes - All Models для BRP Renegade - 2017
-
№АртикулНазвание
-
10>10d705600861 RH Front Caliper Ass'y. Except Model XMR. Includes 10 to 10dRH Front Caliper Ass'y. Except Model XMR. Includes 10 to 10d
-
10>10d703500967 RH Front Caliper Ass'y. Model XMR. Includes 10 to 10dRH Front Caliper Ass'y. Model XMR. Includes 10 to 10d
-
10>10d705600862 LH Front Caliper Ass'y. Except Model XMR. Includes 10 to 10dLH Front Caliper Ass'y. Except Model XMR. Includes 10 to 10d
-
10>10d703500968 LH Front Caliper Ass'y. Model XMR. Includes 10 to 10dLH Front Caliper Ass'y. Model XMR. Includes 10 to 10d
-
10a705601014 RH Brake Pad Kit. Except Model XMRRH Brake Pad Kit. Except Model XMR
-
10a715900249 RH Brake Pad Kit. Model XMRRH Brake Pad Kit. Model XMR
-
10a705601015 LH Brake Pad Kit. Except Model XMRLH Brake Pad Kit. Except Model XMR
-
10a715900248 LH Brake Pad Kit. Model XMRLH Brake Pad Kit. Model XMR
-
10b705601016 Pin SetPin Set
-
10c705601017 Bleeding ScrewBleeding Screw
-
10d705601018 SpringSpring
-
30705601431 LH Front Master Cylinder Ass'yLH Front Master Cylinder Ass'y
-
30a705601013 Lever SetLever Set
-
30b507032477 Clamp And Screw KitClamp And Screw Kit
-
30b1250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
30c219800096 Cap SetCap Set
-
30c1415129356 Screw M4 X 20Screw M4 X 20
-
35705601432 RH Front Master Cylinder Ass'yRH Front Master Cylinder Ass'y
-
35a705601011 Lever SetLever Set
-
35b507032477 Clamp And Screw KitClamp And Screw Kit
-
35b1250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
35c219800096 Cap SetCap Set
-
35c1415129356 Screw M4 X 20Screw M4 X 20
-
35d705601012 Kit SwitchKit Switch
-
38705601523 LH Front Brake HoseLH Front Brake Hose
-
39705601522 RH Front Brake HoseRH Front Brake Hose
-
40>40a705601546 Brake Line. Except Europe. Includes 40 to 40aBrake Line. Except Europe. Includes 40 to 40a
-
40>40a705601525 LH Brake Handle Hose. Europe. Includes 40 to 40aLH Brake Handle Hose. Europe. Includes 40 to 40a
-
40a705600459 ClampClamp
-
45>45a705600970 RH Brake Handle Line Ass'y. Europe. Includes 45 to 45aRH Brake Handle Line Ass'y. Europe. Includes 45 to 45a
-
45>45a705601489 Front Brake Hose. Except Europe. Includes 45 to 45aFront Brake Hose. Except Europe. Includes 45 to 45a
-
45a705600459 ClampClamp
-
50705600609 Banjo BoltBanjo Bolt
-
55705600958 Banjo Bolt. EuropeBanjo Bolt. Europe
-
60705600310 Copper Washer. EuropeCopper Washer. Europe
-
64250000163 Hex. Screw M10 X 14, Scotch Grip. EuropeHex. Screw M10 X 14, Scotch Grip. Europe
-
65705601051 Bleeding Screw. Except EuropeBleeding Screw. Except Europe
-
75705600981 Brake Line. EuropeBrake Line. Europe
-
80705600980 Outlet Hose, Master Cylinder. EuropeOutlet Hose, Master Cylinder. Europe
-
85705601553 RH Rear Brake Line Ass'y. EuropeRH Rear Brake Line Ass'y. Europe
-
85>85a705601301 RH Rear Hose. Except Europe. Includes 85 to 85aRH Rear Hose. Except Europe. Includes 85 to 85a
-
85a705600459 ClampClamp
-
90>90a705600911 Brake Line Ass'y. Except Europe. Includes 90 to 90aBrake Line Ass'y. Except Europe. Includes 90 to 90a
-
90A705600459 ClampClamp
-
95415079900 Tubing 10 mmTubing 10 mm
-
100>100b705601274 Rear Master Cylinder. Includes 100 to 100bRear Master Cylinder. Includes 100 to 100b
-
100a705601020 Oil TankOil Tank
-
100b705601019 Housing Oil HoseHousing Oil Hose
-
105414036300 GrommetGrommet
-
110293900112 BushingBushing
-
115207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
120224060201 Flat WasherFlat Washer
-
125233251434 Flanged Elastic Nut M5Flanged Elastic Nut M5
-
130705600994 Splitter. EuropeSplitter. Europe
-
135210265040 Hex. Screw M6 X 40. EuropeHex. Screw M6 X 40. Europe
-
139210261640 Hex Flanged Screw M6 X 16Hex Flanged Screw M6 X 16
-
140390406500 Pop Rivet 3/16''Pop Rivet 3/16''
-
150705601250 Brake Switch. EuropeBrake Switch. Europe
-
150705601251 Brake Switch. Except EuropeBrake Switch. Except Europe
-
160>160d705600859 RH Rear Caliper Ass'y. Except Model XMR. Includes 160 to 160dRH Rear Caliper Ass'y. Except Model XMR. Includes 160 to 160d
-
160>160d703500969 RH Rear Caliper Ass'y. Model XMR. Includes 160 to 160dRH Rear Caliper Ass'y. Model XMR. Includes 160 to 160d
-
160a705601016 Pin SetPin Set
-
160b705601017 Bleeding ScrewBleeding Screw
-
160c705601018 SpringSpring
-
160d705601014 RH Brake Pad Kit. Except Model XMRRH Brake Pad Kit. Except Model XMR
-
160d715900249 RH Brake Pad Kit. Model XMRRH Brake Pad Kit. Model XMR
-
175>175d705600860 LH Rear Caliper Ass'y. Except Europe, Except XMR. Includes 175to 175dLH Rear Caliper Ass'y. Except Europe, Except XMR. Includes 175to 175d
-
175>175d703500970 LH Rear Caliper Ass'y. Model XMR. Includes 175to 175dLH Rear Caliper Ass'y. Model XMR. Includes 175to 175d
-
175a705601016 Pin Set. Except EuropePin Set. Except Europe
-
175b705601017 Bleeding Screw. Except EuropeBleeding Screw. Except Europe
-
175c705601018 Spring. Except EuropeSpring. Except Europe
-
175d705601015 LH Brake Pad Kit. Except Europe, Except XMRLH Brake Pad Kit. Except Europe, Except XMR
-
175d715900248 LH Brake Pad Kit. Model XMRLH Brake Pad Kit. Model XMR
-
180207502046 Hex. Flanged Screw M10 X 20Hex. Flanged Screw M10 X 20
-
250705601155 Brake PedalBrake Pedal
-
260705600792 Brake Pedal SpringBrake Pedal Spring
-
265207662044 Hex. Flanged Screw M6 X 20. Except EuropeHex. Flanged Screw M6 X 20. Except Europe
-
275233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
300293300144 O-RingO-Ring
-
350250000513 Shoulder Screw M10Shoulder Screw M10
-
351233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
360207685544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
370233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
375235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
380705600999 Disc BrakeDisc Brake
-
390235381646 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
-
400705600999 Disc Brake. EuropeDisc Brake. Europe
-
400705600999 Disc Brake. Except EuropeDisc Brake. Except Europe
-
440207502546 Hex. Flanged Screw M10 X 25. Except Package XMR, Engine 570Hex. Flanged Screw M10 X 25. Except Package XMR, Engine 570
-
440207503046 Hex. Flanged Screw M10 X 30, Scotch Grip. Package XMR, Moteur 570Hex. Flanged Screw M10 X 30, Scotch Grip. Package XMR, Moteur 570
-
500705202000 Bracket Brake PedalBracket Brake Pedal
-
501207782044 Carriage Bolt, M8 X 20Carriage Bolt, M8 X 20
-
502233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
510705600962 Front Hose ProtectorFront Hose Protector
-
511250000724 Torx Screw M5 X 20Torx Screw M5 X 20
-
512250200025 Washer M5Washer M5
-
513250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
514705601048 LH Hose BracketLH Hose Bracket
-
515705601049 RH Hose BracketRH Hose Bracket
-
524250000755 Torx Screw M6 X 16Torx Screw M6 X 16
-
525390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
530705600983 Front Hose BracketFront Hose Bracket
-
535250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
536207563044 Hex. Flanged Screw M6 X 30, Scotch Grip. Except EuropeHex. Flanged Screw M6 X 30, Scotch Grip. Except Europe
-
537207562044 Flanged Screw M6 X 20, Scotch Grip. EuropeFlanged Screw M6 X 20, Scotch Grip. Europe
-
538293900104 Bushing. Except EuropeBushing. Except Europe
-
550293650219 Clamp. EuropeClamp. Europe
-
560293650220 Clamp. EuropeClamp. Europe
-
610705601214 LH Deflector. Package XMR, Engine 570LH Deflector. Package XMR, Engine 570
-
620705601215 RH Deflector. Package XMR, Engine 570RH Deflector. Package XMR, Engine 570
-
630234001410 Flat Washer 10 mm. Package XMR, Engine 570Flat Washer 10 mm. Package XMR, Engine 570
-
700414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
705414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
710414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
711414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
711414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
715293750041 Tie-rap 627 mmTie-rap 627 mm
-
715293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
716414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
725293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
730293750008 Tie-Rap 350 mmTie-Rap 350 mm
