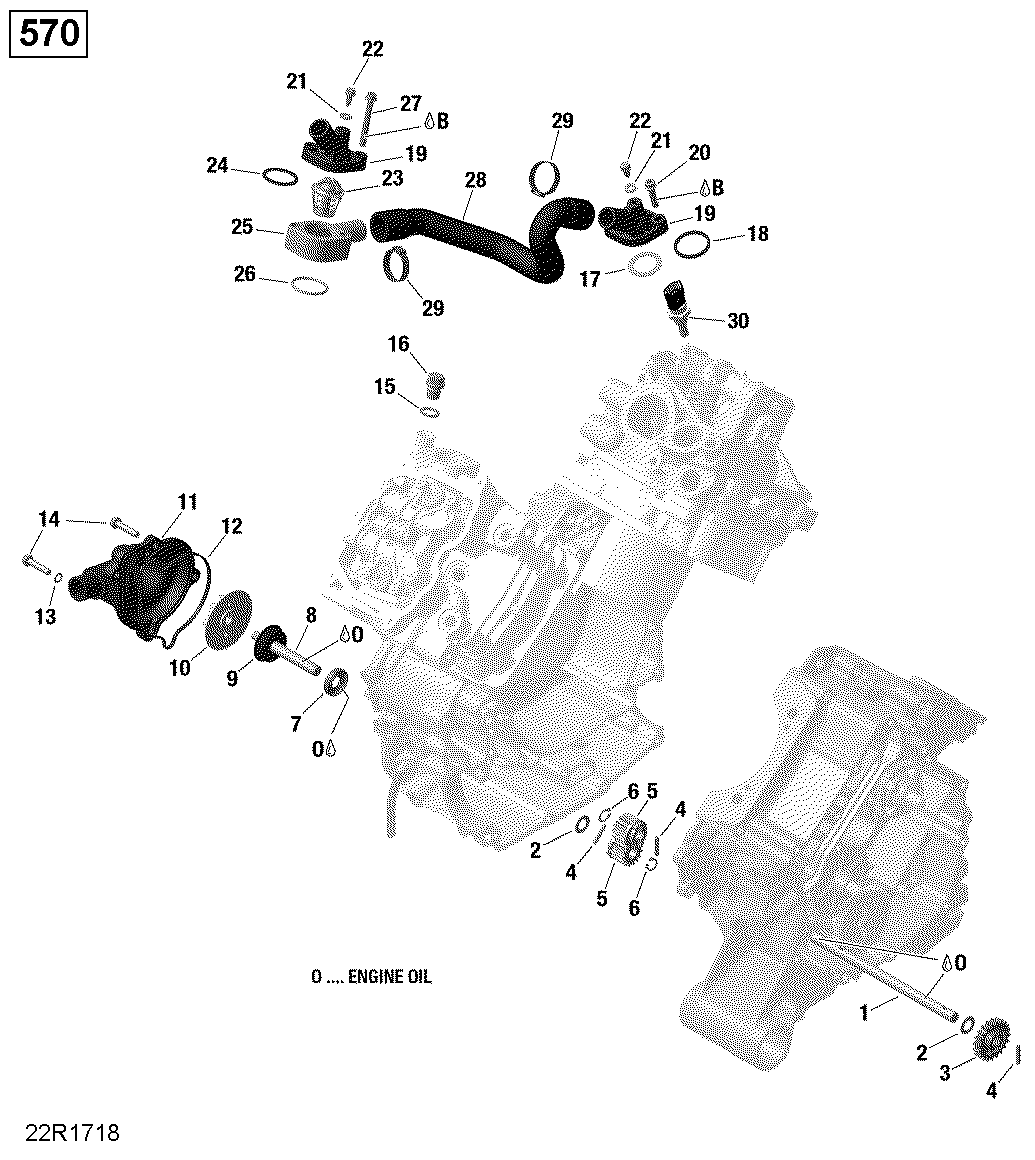

01- Engine Cooling - 570 EFI для BRP Renegade - 2017
-
№АртикулНазвание
-
1420620500 Intermediate ShaftIntermediate Shaft
-
2420827590 Thrust WasherThrust Washer
-
3420434330 Water Pump GearWater Pump Gear
-
4420232420 Needle PinNeedle Pin
-
5420234627 Pump Gear, 15 TeethPump Gear, 15 Teeth
-
6504152282 CirclipCirclip
-
7420650310 Oil SealOil Seal
-
8>9420620175 Water Pump Shaft Ass'yWater Pump Shaft Ass'y
-
9420650370 Rotary SealRotary Seal
-
10420822750 Water ImpellerWater Impeller
-
11420622020 Water Pump HousingWater Pump Housing
-
12420651190 GasketGasket
-
13420230415 Seal WasherSeal Washer
-
14420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
15420250640 Copper WasherCopper Washer
-
16420841921 Plug Screw M12 X 1.5Plug Screw M12 X 1.5
-
17>18420927837 Spacer Ass'ySpacer Ass'y
-
18420650300 Thermostat GasketThermostat Gasket
-
19420222691 Thermostat CoverThermostat Cover
-
20420641238 Flanged Torx Screw M6 X 25Flanged Torx Screw M6 X 25
-
21420650255 Gasket RingGasket Ring
-
22420441621 Screw M5 X 16Screw M5 X 16
-
23>24420222494 Thermostat 65° With Gasket Ass'yThermostat 65° With Gasket Ass'y
-
24420650300 Thermostat GasketThermostat Gasket
-
25420222890 Connection SocketConnection Socket
-
26420631300 O-RingO-Ring
-
27420641198 Flanged Torx Screw M6 X 45Flanged Torx Screw M6 X 45
-
28420822352 Water TubeWater Tube
-
29420251573 Gear ClampGear Clamp
-
30278002895 Temperature SensorTemperature Sensor
