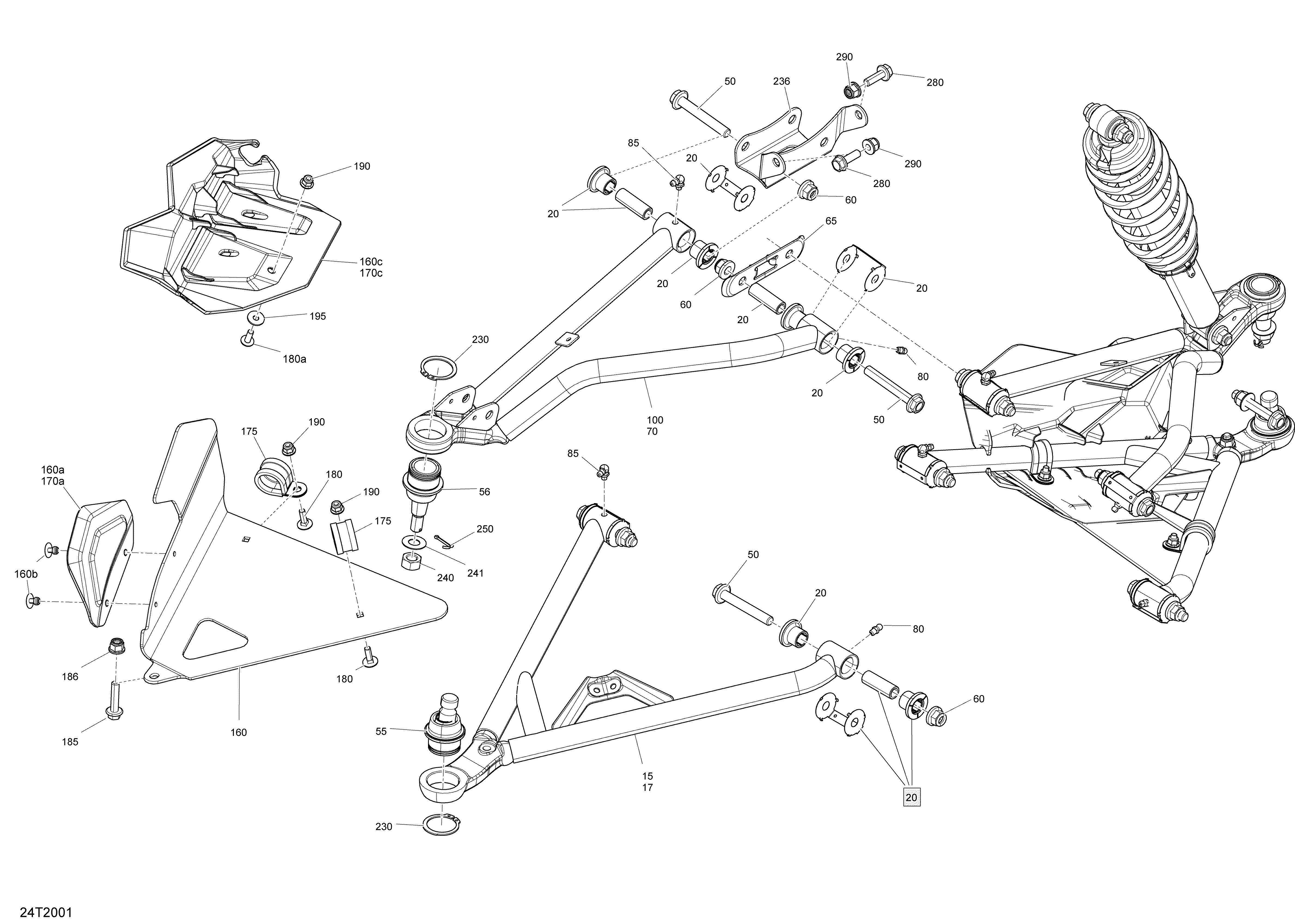

07- Front Suspension для BRP 001 - Outlander 450 EFI - North America - 2020
-
№АртикулНазвание
-
15706202869 Black, LH Lower ArmBlack, LH Lower Arm
-
17706202870 Black, RH Lower ArmBlack, RH Lower Arm
-
20703500875 Bushing KitBushing Kit
-
50207607046 Hex. Flanged Screw M10 X 70Hex. Flanged Screw M10 X 70
-
55706202045 Ball JointBall Joint
-
56706202044 Ball JointBall Joint
-
60233201436 Flanged Elastic Nut M10Flanged Elastic Nut M10
-
65706200998 Front Suspension Cross PlateFront Suspension Cross Plate
-
70706201877 Black, RH Upper ArmBlack, RH Upper Arm
-
80408200700 Grease FittingGrease Fitting
-
85293550056 Grease Fitting 90°Grease Fitting 90°
-
100706201876 Black, LH Upper ArmBlack, LH Upper Arm
-
160715001667 A Arm Protector Kit. Package Hunting EditionA Arm Protector Kit. Package Hunting Edition
-
160a706201186 RH Protector. Package Hunting EditionRH Protector. Package Hunting Edition
-
160b293150104 Pop Rivet 3/16''. Package Hunting EditionPop Rivet 3/16''. Package Hunting Edition
-
160c706202808 LH Joint Protector. Packages STD & DPSLH Joint Protector. Packages STD & DPS
-
170c706202809 RH Joint Protector . Packages STD & DPSRH Joint Protector . Packages STD & DPS
-
170a706201185 LH Protector. Package Hunting EditionLH Protector. Package Hunting Edition
-
175709200036 Hose Anchor. Package Hunting EditionHose Anchor. Package Hunting Edition
-
180207762044 Carriage Bolt M6 X 20. Package Hunting EditionCarriage Bolt M6 X 20. Package Hunting Edition
-
180a250000755 Torx Screw M6 X 16. Packages STD & DPSTorx Screw M6 X 16. Packages STD & DPS
-
185207683534 Hex. Flanged Screw M8 X 35. Package Hunting EditionHex. Flanged Screw M8 X 35. Package Hunting Edition
-
186233281434 Hex. Flanged Elastic Nut M8. Package Hunting EditionHex. Flanged Elastic Nut M8. Package Hunting Edition
-
190233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
195234062670 Flat Washer, Stainless. Packages STD & DPSFlat Washer, Stainless. Packages STD & DPS
-
230293370035 CirclipCirclip
-
236705203247 Upper Front HolderUpper Front Holder
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
280207682534 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
290233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
