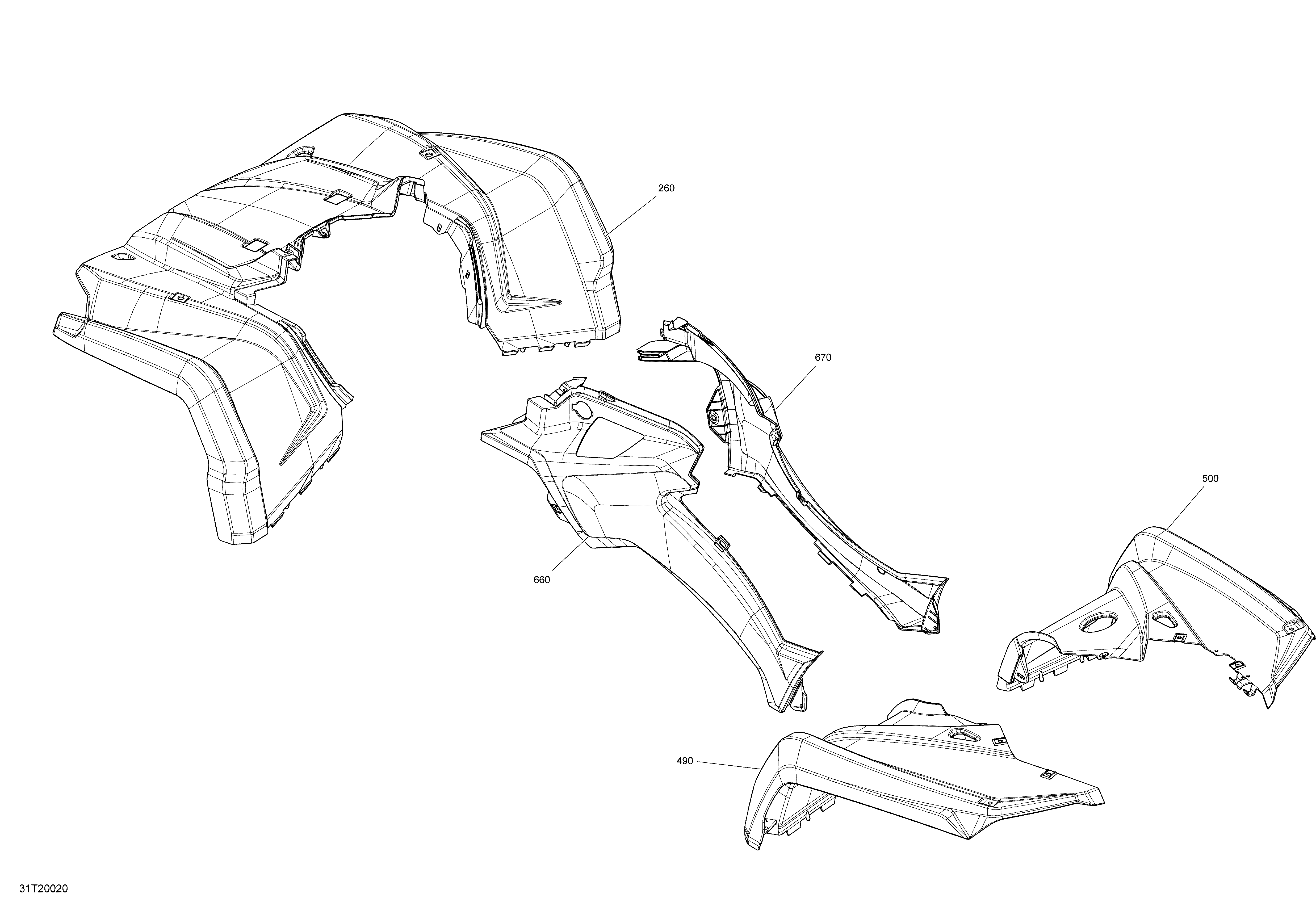

09- Fender Kit - Camo для BRP 001 - Outlander 450 EFI - North America - 2020
-
№АртикулНазвание
-
260715005935 Camo, Front Fender KitCamo, Front Fender Kit
-
490715005973 Camo, LH Rear Fender KitCamo, LH Rear Fender Kit
-
500705009754 Camo, RH Rear FenderCamo, RH Rear Fender
-
660705009903 Camo, LH Lateral PannelCamo, LH Lateral Pannel
-
670705009912 Camo, RH Lateral PannelCamo, RH Lateral Pannel
