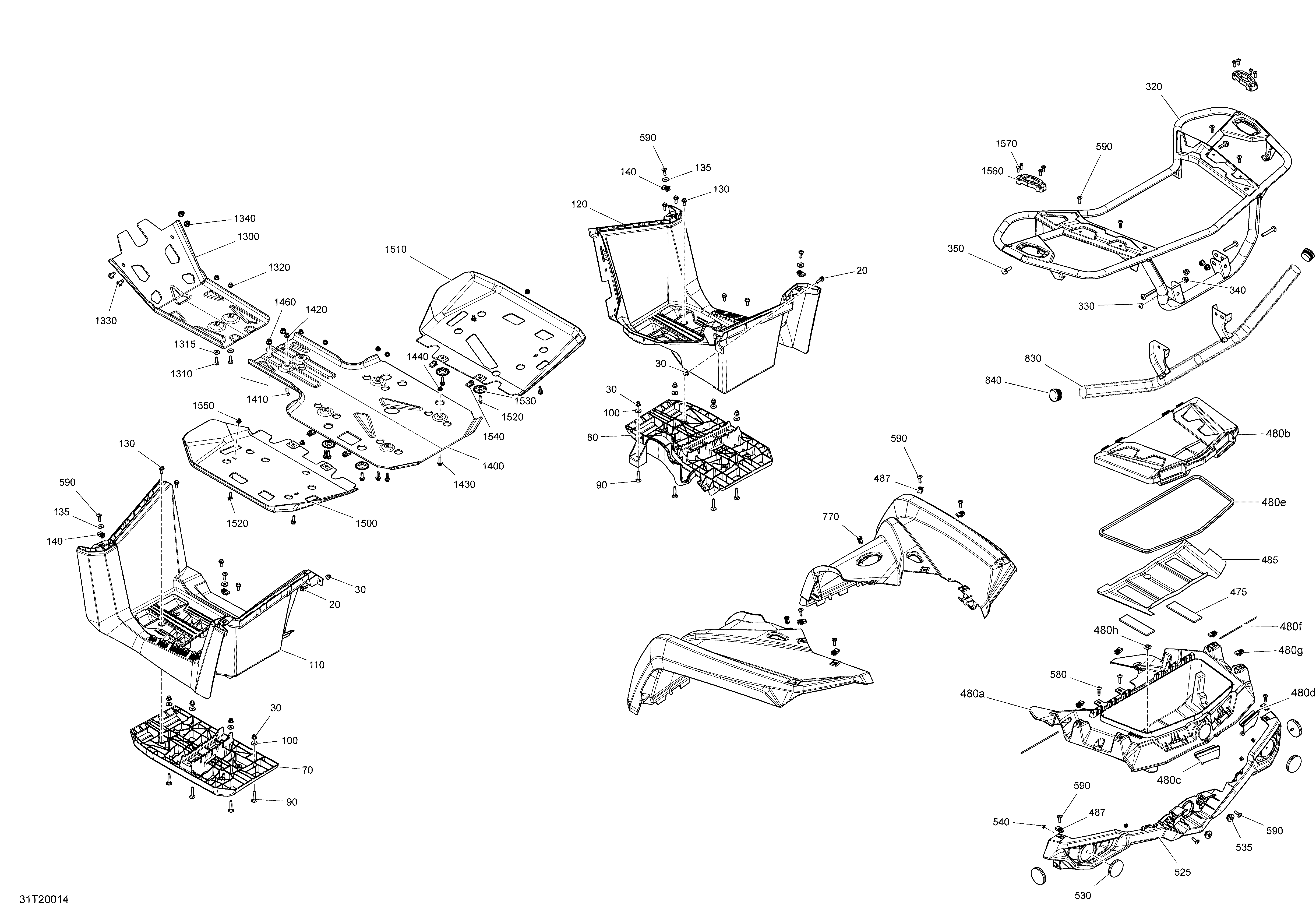

09- Body - Rear Section - Mossy Oak Edition для BRP 001 - Outlander 450 EFI - North America - 2020
-
№АртикулНазвание
-
20207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
70705011540 LH Structural Footboard. Includes 70 to 70aLH Structural Footboard. Includes 70 to 70a
-
80705011542 RH Structural Footboard. Includes 80 to 80aRH Structural Footboard. Includes 80 to 80a
-
90207763554 Carriage Bolt M6 X 35Carriage Bolt M6 X 35
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
110705007040 LH FootrestLH Footrest
-
120705007723 RH FootrestRH Footrest
-
130207661654 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
135224061201 Flat WasherFlat Washer
-
140250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
320715005986 Black, Rear Luggage RackBlack, Rear Luggage Rack
-
330250000761 Torx Truss Screw M8 X 50Torx Truss Screw M8 X 50
-
340233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
350250001016 Hex Flanged Screw M8 X 25 S.GripHex Flanged Screw M8 X 25 S.Grip
-
475293830163 Rubber PadRubber Pad
-
480a705007136 Rear BoxRear Box
-
480b715004412 Storage CoverStorage Cover
-
480c705007448 LH Box Rear LatchLH Box Rear Latch
-
480d705007921 RH Box Rear Latch. Includes 480d to 480eRH Box Rear Latch. Includes 480d to 480e
-
480e715900411 Neoprene SealNeoprene Seal
-
480f705007531 Retaining RodRetaining Rod
-
480g250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
480h414859400 CapCap
-
485705007487 Heat Deflector SheetHeat Deflector Sheet
-
487250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
525705005576 Rear FaciaRear Facia
-
530705011221 Red ReflectorRed Reflector
-
535705003666 Rubber GrommetRubber Grommet
-
540233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
580250000807 Torx Truss Screw M6 X 25Torx Truss Screw M6 X 25
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
830715001911 Rear Bumper kitRear Bumper kit
-
840705202455 CapCap
-
1300705205019 Front Skid PlateFront Skid Plate
-
1310250000712 Torx Screw M6 X 20Torx Screw M6 X 20
-
1315234062670 Flat Washer, StainlessFlat Washer, Stainless
-
1320233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
1330236282054 Hex. Screw M8 X 20Hex. Screw M8 X 20
-
1340233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1400705204031 Central Skid PlateCentral Skid Plate
-
1410207762044 Carriage Bolt M6 X 20Carriage Bolt M6 X 20
-
1420233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
1430207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1440250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1460233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
1500705010659 LH Skid PlateLH Skid Plate
-
1510705010660 RH Skid PlateRH Skid Plate
-
1520207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
1530705007171 CupCup
-
1540250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
1550250100199 Insert Half Hex Body M6 x 1.0Insert Half Hex Body M6 x 1.0
-
1560715002350 Linq Base KitLinq Base Kit
-
1570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
