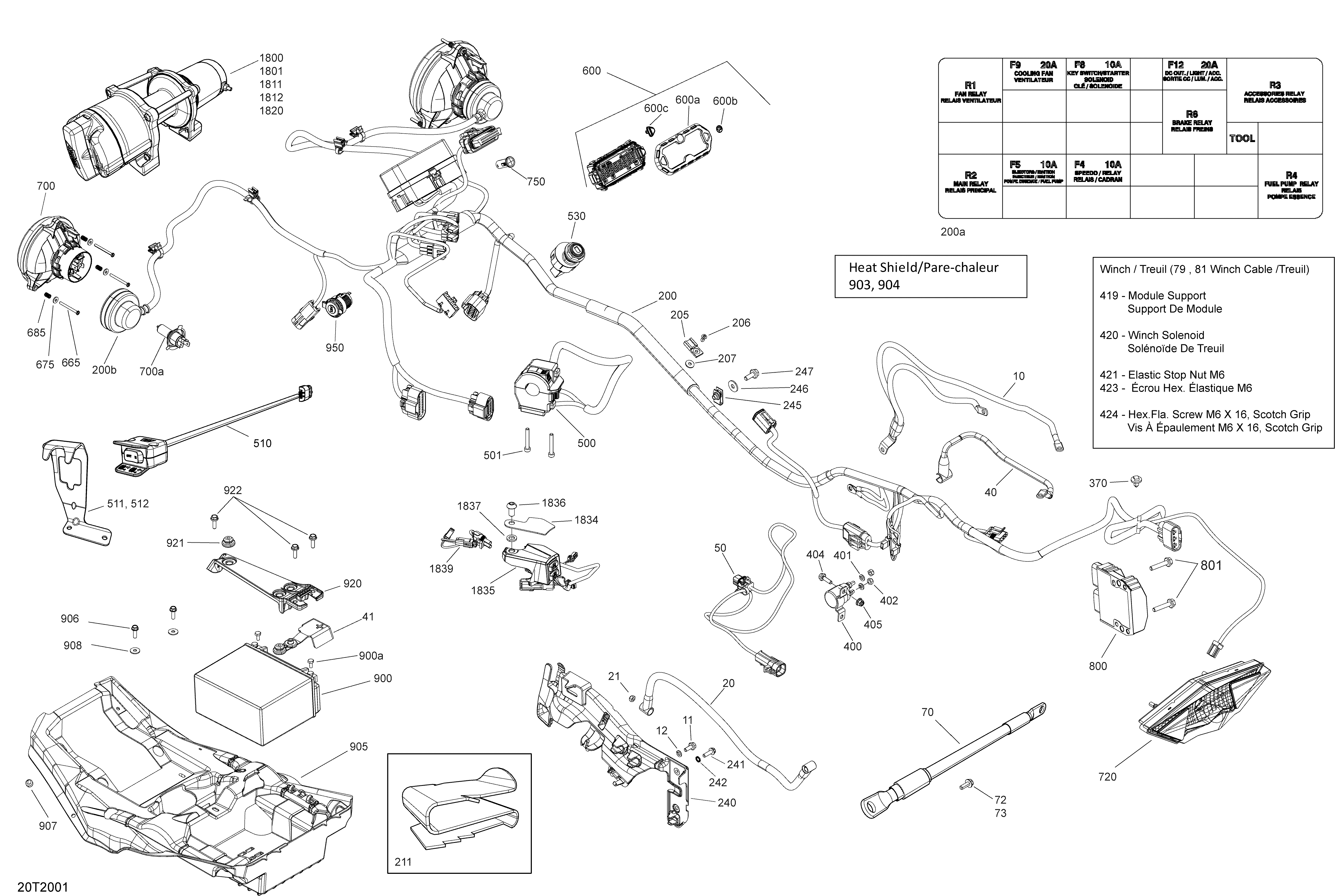

10- Electrical System для BRP 001 - Outlander 450 EFI - North America - 2020
-
№АртикулНазвание
-
10710004380 Ground CableGround Cable
-
11207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
12234161601 Lock Washer Helical M6Lock Washer Helical M6
-
20710004381 Positive CablePositive Cable
-
21232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
40710004376 Positive Cable. Packages STD & DPSPositive Cable. Packages STD & DPS
-
40710004375 Connector Ass'y. Package Hunting EditionConnector Ass'y. Package Hunting Edition
-
41710006729 Cap Battery CableCap Battery Cable
-
50710005819 Extension Cable 02 Sensor. Packages DPS & Hunting EditionExtension Cable 02 Sensor. Packages DPS & Hunting Edition
-
70710005163 Negative Cable. Package Hunting EditionNegative Cable. Package Hunting Edition
-
72210261640 Hex Flanged Screw M6 X 16. Package Hunting EditionHex Flanged Screw M6 X 16. Package Hunting Edition
-
73234461608 External Serrated Lock Washer 6 mm. Package Hunting EditionExternal Serrated Lock Washer 6 mm. Package Hunting Edition
-
79710005164 Winch Cable. Package Hunting EditionWinch Cable. Package Hunting Edition
-
81710005246 Winch Cable. Package Hunting EditionWinch Cable. Package Hunting Edition
-
200710006173 Harness Ass'y. Package STD. Includes 200 to 200bHarness Ass'y. Package STD. Includes 200 to 200b
-
200710006172 Electric Harness. Packages DPS & Hunting Edition. Includes 200 to 200bElectric Harness. Packages DPS & Hunting Edition. Includes 200 to 200b
-
200a710003976 Fuse Shematic Decal. Packages DPS & Hunting EditionFuse Shematic Decal. Packages DPS & Hunting Edition
-
200b710004020 Headlamp Protector Cap. Packages DPS & Hunting EditionHeadlamp Protector Cap. Packages DPS & Hunting Edition
-
205270000141 ClipClip
-
206390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
207391301600 WasherWasher
-
211710000992 Clip. Packages XT & Hunting EditionClip. Packages XT & Hunting Edition
-
240707001280 Cable BracketCable Bracket
-
241210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
242234461608 External Serrated Lock Washer 6 mmExternal Serrated Lock Washer 6 mm
-
245250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
246234062410 Flat Washer 6 mmFlat Washer 6 mm
-
247207561644 Hex.Fla. Screw M6 X 16, Scotch GripHex.Fla. Screw M6 X 16, Scotch Grip
-
370293730040 Mount DartMount Dart
-
400710001364 Starter RelayStarter Relay
-
401234161601 Lock Washer Helical M6Lock Washer Helical M6
-
402232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
404207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
405233261414 Hex. Flanged Elastic Nut M6 x 1.0Hex. Flanged Elastic Nut M6 x 1.0
-
419710004935 Module Support. Package Hunting EditionModule Support. Package Hunting Edition
-
420710001000 Winch Solenoid. Package Hunting EditionWinch Solenoid. Package Hunting Edition
-
421232561414 Elastic Stop Nut M6. Package Hunting EditionElastic Stop Nut M6. Package Hunting Edition
-
423232561414 Elastic Stop Nut M6. Package Hunting EditionElastic Stop Nut M6. Package Hunting Edition
-
424207561644 Hex.Fla. Screw M6 X 16, Scotch Grip. Package Hunting EditionHex.Fla. Screw M6 X 16, Scotch Grip. Package Hunting Edition
-
500710005072 Multi-Function Handle. Packages DPS & Hunting EditionMulti-Function Handle. Packages DPS & Hunting Edition
-
501205053588 Socket Head Screw M5 X 35Socket Head Screw M5 X 35
-
510710005241 Winch Switch. Package Hunting EditionWinch Switch. Package Hunting Edition
-
511710004670 Black Support. Package Hunting EditionBlack Support. Package Hunting Edition
-
512250000153 Hex. Cap Screw 6-32 X 1/4''. Package Hunting EditionHex. Cap Screw 6-32 X 1/4''. Package Hunting Edition
-
530710005153 Ignition Switch With Keys. Packages DPS & Hunting EditionIgnition Switch With Keys. Packages DPS & Hunting Edition
-
600710005553 Speedometer. Packages DPS & Hunting EditionSpeedometer. Packages DPS & Hunting Edition
-
600a710001183 Trim Ring Ass'y. Includes toTrim Ring Ass'y. Includes to
-
600b704904615 BRP Logo, 13 mmBRP Logo, 13 mm
-
600c715900265 ButtonButton
-
665250000718 Hex. Screw K40 X 45Hex. Screw K40 X 45
-
675517225900 Flat WasherFlat Washer
-
685517168600 SpringSpring
-
700710003900 Low BeamLow Beam
-
700a710000871 Bulb, 12V 35/35WBulb, 12V 35/35W
-
720710001203 Tail Light Housing Ass'yTail Light Housing Ass'y
-
750710003910 Pilot Lamp CapPilot Lamp Cap
-
800710001103 Voltage Regulator. Package STDVoltage Regulator. Package STD
-
800710005569 Voltage Regulator. Package DPSVoltage Regulator. Package DPS
-
801207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
900410301203 Battery Ass'y, 18 Amperes. Includes 900 to 900aBattery Ass'y, 18 Amperes. Includes 900 to 900a
-
900a250000282 Battery Bolt KitBattery Bolt Kit
-
903710006532 Heat ShieldHeat Shield
-
904710006533 Heat ShieldHeat Shield
-
905710006561 Battery SupportBattery Support
-
906210262050 Washer Head Hexagonal ScrewWasher Head Hexagonal Screw
-
907293830005 Rubber BumperRubber Bumper
-
908234062670 Flat Washer, StainlessFlat Washer, Stainless
-
920710002404 Fixation PlateFixation Plate
-
921705014429 Stopper RubberStopper Rubber
-
922207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
950710001248 Outlet DCOutlet DC
-
1800705008546 Winch. Package Hunting EditionWinch. Package Hunting Edition
-
1801250000746 Torx Truss Screw M8 X 16. Package Hunting EditionTorx Truss Screw M8 X 16. Package Hunting Edition
-
1811250400021 Clevis Pin. Package Hunting EditionClevis Pin. Package Hunting Edition
-
1812250400022 Cotter Pin. Package Hunting EditionCotter Pin. Package Hunting Edition
-
1820715000011 Winch Roller. Package Hunting EditionWinch Roller. Package Hunting Edition
-
1834715004008 Top Plate. Package Hunting EditionTop Plate. Package Hunting Edition
-
1835710004990 Multifonction Housing Assembly. Package Hunting EditionMultifonction Housing Assembly. Package Hunting Edition
-
1836710005908 Screw M10 X1.25 X 20 BHCS S.Grip. Package Hunting EditionScrew M10 X1.25 X 20 BHCS S.Grip. Package Hunting Edition
-
1837503192496 Washer. Package Hunting EditionWasher. Package Hunting Edition
-
1839710004567 Cable. Package Hunting EditionCable. Package Hunting Edition
