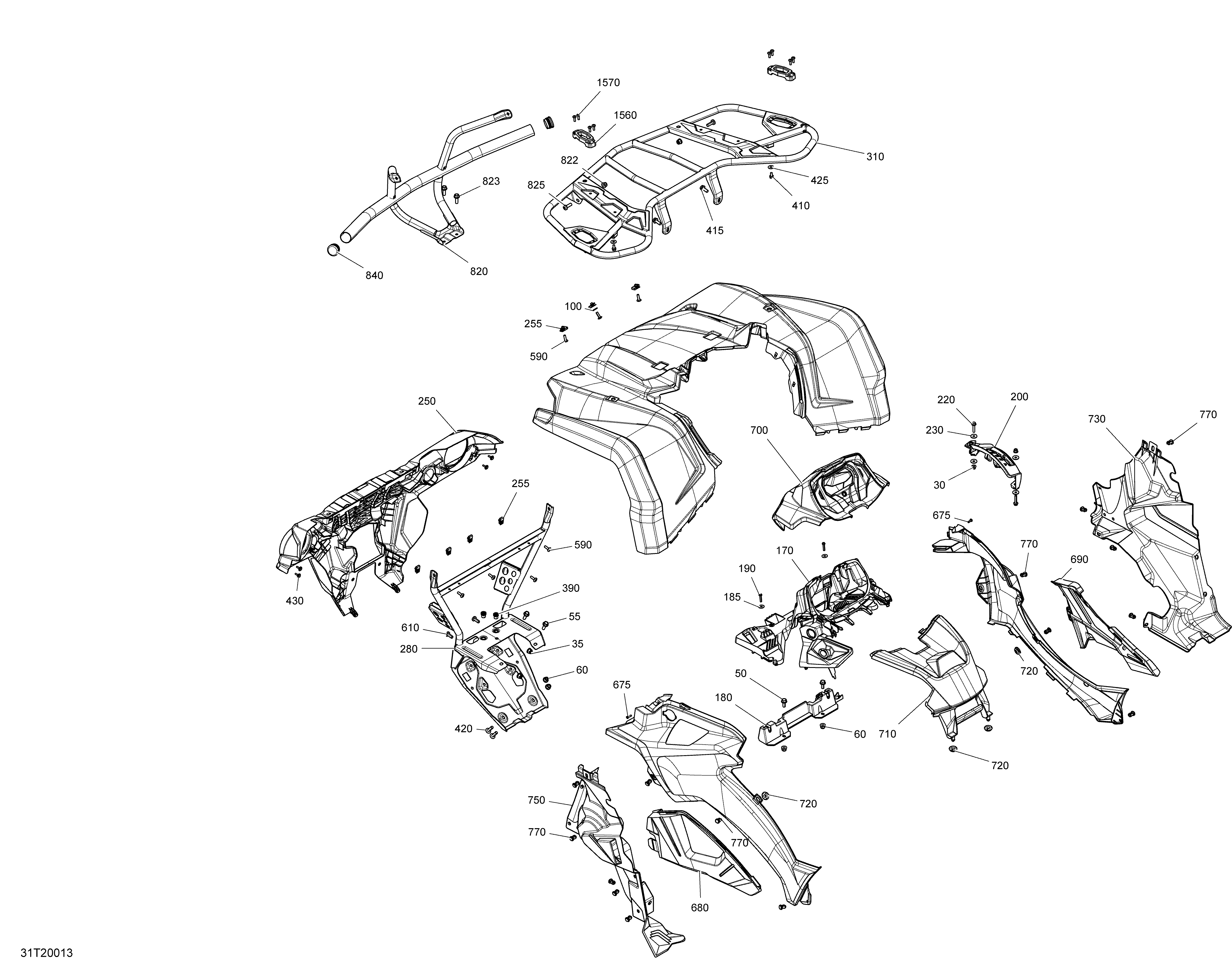

09- Body - Front Section - Mossy Oak Edition для BRP 001 - Outlander 450 EFI - North America - 2020
-
№АртикулНазвание
-
30233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
35233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50207682044 Hex. Flanged Screw M8 X 20Hex. Flanged Screw M8 X 20
-
55207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
60233281434 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
100234062410 Flat Washer 6 mmFlat Washer 6 mm
-
170715003984 Dash Support KitDash Support Kit
-
180705010406 Console Support InsertConsole Support Insert
-
185234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
190241152540 Hex. Flanged Screw K50 X 2.24 X 25Hex. Flanged Screw K50 X 2.24 X 25
-
200715003973 Shifter Gate KitShifter Gate Kit
-
220207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
230224061201 Flat WasherFlat Washer
-
250705009334 Front FaciaFront Facia
-
255250000957 Extruded Panel Nut M6Extruded Panel Nut M6
-
280705009256 Front StructureFront Structure
-
310705006887 Black, Front Luggage RackBlack, Front Luggage Rack
-
390293450307 Insert Half Hex Body M8 x 1.25Insert Half Hex Body M8 x 1.25
-
410210261250 Hex. Flanged Screw M6 X 12Hex. Flanged Screw M6 X 12
-
415207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
420250000886 Torx Screw M8 X 30Torx Screw M8 X 30
-
425234062670 Flat Washer, StainlessFlat Washer, Stainless
-
430250000725 Screw M4 X 16Screw M4 X 16
-
590250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
610205003044 Socket Screw M10 x 30Socket Screw M10 x 30
-
675250000723 Phillips Screw K40 X 16Phillips Screw K40 X 16
-
680705014060 LH Central PanelLH Central Panel
-
690705003444 Engine CoverEngine Cover
-
700705007066 Gage SupportGage Support
-
710715005837 Dash KitDash Kit
-
720705003264 GrommetGrommet
-
730705010714 RH Inner FenderRH Inner Fender
-
750705012338 LH Inner FenderLH Inner Fender
-
770293150230 Tuflok Plastic RivetTuflok Plastic Rivet
-
820715001910 Front Bumper kitFront Bumper kit
-
822233281464 Elastic Flange Nut M8Elastic Flange Nut M8
-
823207582544 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
825250000898 Screw Pan Torx M8 X 25Screw Pan Torx M8 X 25
-
840705202455 CapCap
-
1560715002350 Linq Base KitLinq Base Kit
-
1570250000720 Torx Screw K50 X 16Torx Screw K50 X 16
