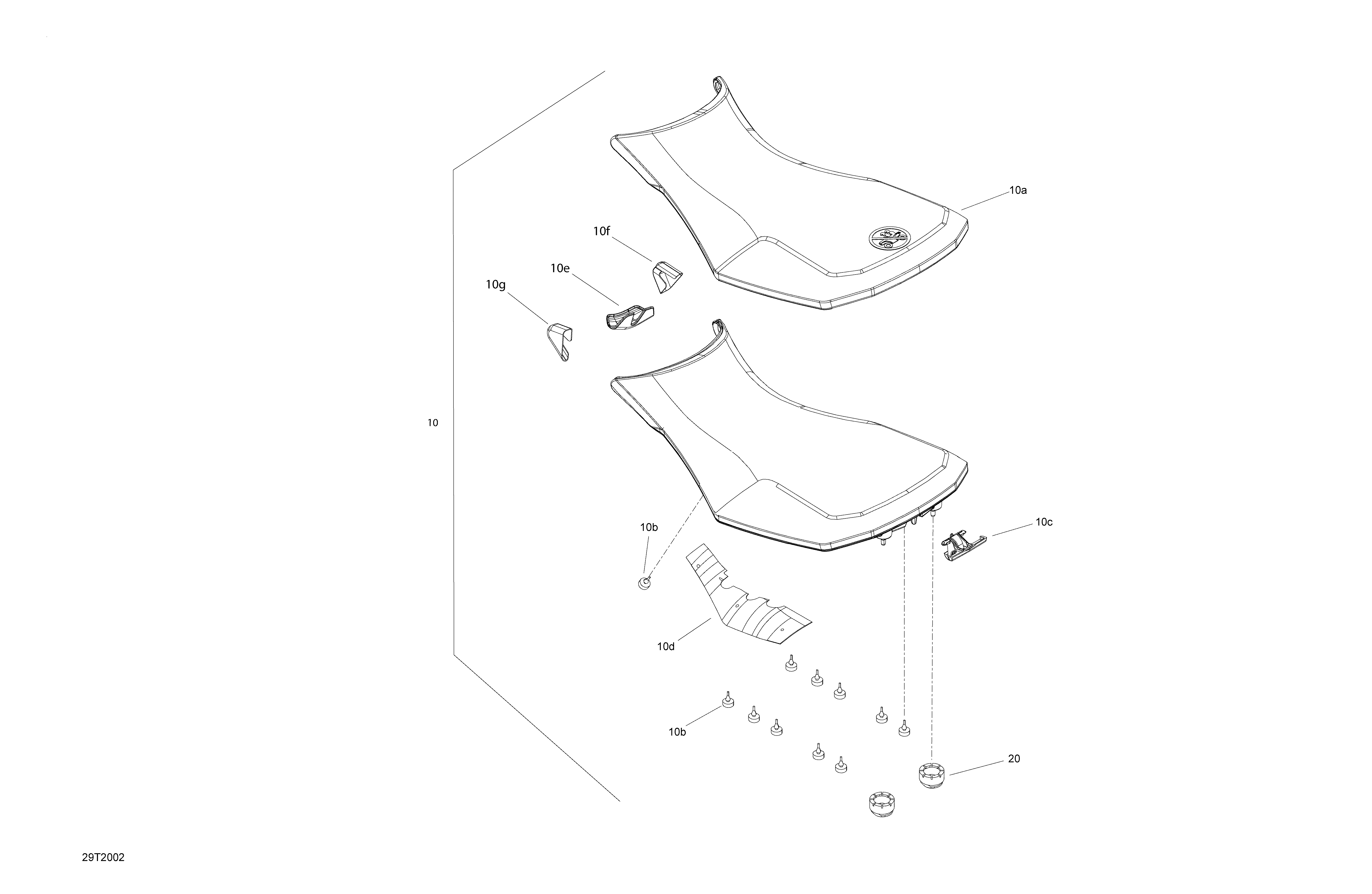

09- Seat для BRP 001 - Outlander 450 EFI - North America - 2020
-
№АртикулНазвание
-
10708002491 Seat Ass'y. Package DPS. Includes 10 to 10dSeat Ass'y. Package DPS. Includes 10 to 10d
-
10a708000724 Black Seat Cover. Package DPSBlack Seat Cover. Package DPS
-
10b708000759 Rubber Stopper. Package DPSRubber Stopper. Package DPS
-
10c708000909 Latch. Package DPSLatch. Package DPS
-
10d705005761 Heat Shield. Package DPSHeat Shield. Package DPS
-
10708002491 Seat Ass'y. Package STD. Includes 10 to 10dSeat Ass'y. Package STD. Includes 10 to 10d
-
10a708000724 Black Seat Cover. Package STDBlack Seat Cover. Package STD
-
10b708000759 Rubber Stopper. Package STDRubber Stopper. Package STD
-
10c708000909 Latch. Package STDLatch. Package STD
-
10d705005761 Heat Shield. Package STDHeat Shield. Package STD
-
10708002493 Assembly Seat. Package Hunting Edition. Includes 10 to 10hAssembly Seat. Package Hunting Edition. Includes 10 to 10h
-
10a708001972 Seat Cover. Package Hunting EditionSeat Cover. Package Hunting Edition
-
10b708000759 Rubber Stopper. Package Hunting EditionRubber Stopper. Package Hunting Edition
-
10c708000909 Latch. Package Hunting EditionLatch. Package Hunting Edition
-
10d705005761 Heat Shield. Package Hunting EditionHeat Shield. Package Hunting Edition
-
10e708002077 Center Corner Seat. Package Hunting EditionCenter Corner Seat. Package Hunting Edition
-
10f269001669 RH Corner Seat. Package Hunting EditionRH Corner Seat. Package Hunting Edition
-
10g269001670 LH Corner Seat. Package Hunting EditionLH Corner Seat. Package Hunting Edition
-
20708003053 Stopper RubberStopper Rubber
