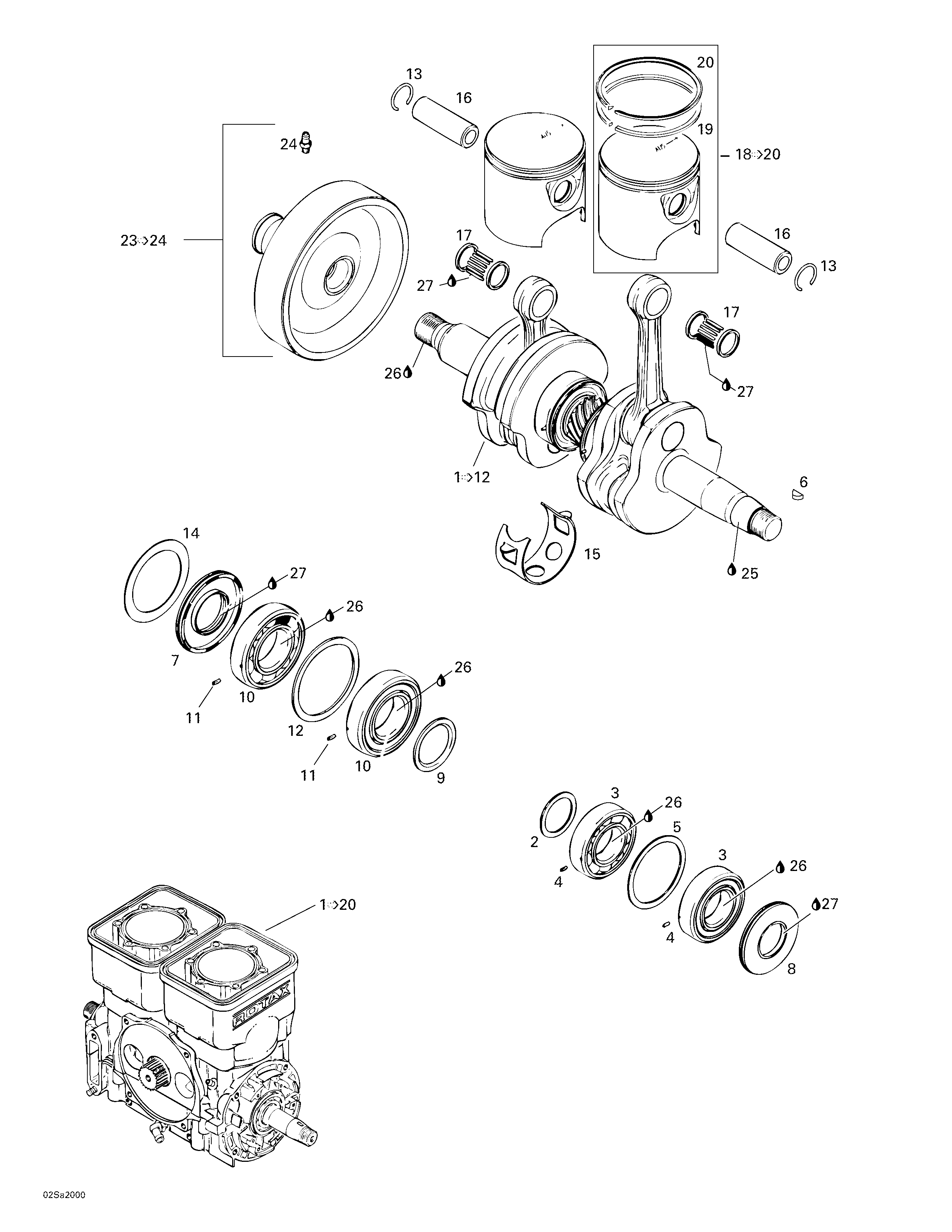

01- Crankshaft And Pistons для BRP GS, 5644/5827 - 2000
-
№АртикулНазвание
-
1290071703 Short Block Ass'y. Includes 1 - 20.Short Block Ass'y. Includes 1 - 20.
-
1290887867 Crankshaft Ass'y. Includes 1 - 12.Crankshaft Ass'y. Includes 1 - 12.
-
2290827447 Distance RingDistance Ring
-
3420832538 Ball Bearing 6206 Ass'y. Includes 3 - 4.Ball Bearing 6206 Ass'y. Includes 3 - 4.
-
4420929972 Dowel PinDowel Pin
-
5420827050 Retaining DiskRetaining Disk
-
6420246055 Woodruff KeyWoodruff Key
-
7290831952 Oil Seal P.T.OOil Seal P.T.O
-
8290830749 Oil SealOil Seal
-
9420827760 Distance RingDistance Ring
-
10420832574 Ball Bearing 6207 Ass'y. Includes 10 - 11.Ball Bearing 6207 Ass'y. Includes 10 - 11.
-
11420929972 Dowel PinDowel Pin
-
12420927710 Retaining DiskRetaining Disk
-
13420845100 CirclipCirclip
-
14290926060 Retaining ShimRetaining Shim
-
15290926070 Retaining RingRetaining Ring
-
16290916403 Piston PinPiston Pin
-
17290832420 Needle BearingNeedle Bearing
-
18290887670 Piston with 2 Rings, 81.90 mm. Includes 18 - 20.Piston with 2 Rings, 81.90 mm. Includes 18 - 20.
-
290887671 Piston with 2 Rings, 82.15 mmPiston with 2 Rings, 82.15 mm
-
290887672 Piston with 2 Rings, 82.40 mmPiston with 2 Rings, 82.40 mm
-
19290815080 Rectangular Ring 82.00 mmRectangular Ring 82.00 mm
-
290815081 Rectangular Ring 82.25 mmRectangular Ring 82.25 mm
-
290815082 Rectangular Ring 82.50 mmRectangular Ring 82.50 mm
-
20290815070 Semi-Trapez Ring 82.00 mmSemi-Trapez Ring 82.00 mm
-
290815071 Semi-Trapez Ring 82.25 mmSemi-Trapez Ring 82.25 mm
-
290815072 Semi-Trapez Ring 82.50 mmSemi-Trapez Ring 82.50 mm
-
21290886317 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
22290886316 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
-
23290958012 Clutch-Flywheel. Includes 23 - 24.Clutch-Flywheel. Includes 23 - 24.
-
24290499113 Grease FittingGrease Fitting
-
25293800060 Loctite 243, 10mlLoctite 243, 10ml
-
26293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
27413707000 Molykote 111Molykote 111
