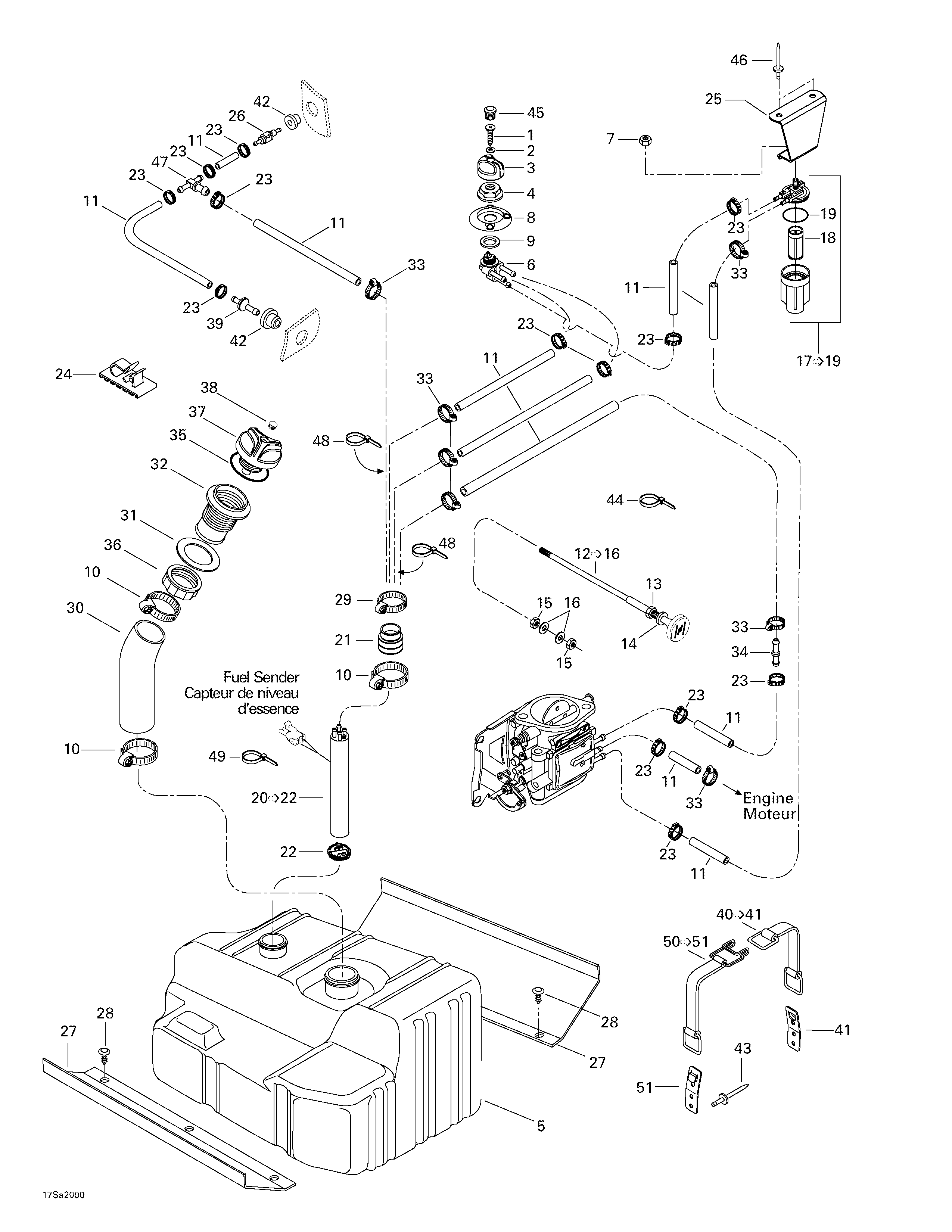

02- Fuel System для BRP GS, 5644/5827 - 2000
-
№АртикулНазвание
-
1208640860 Countersunk Phillips Screw M4 x 8Countersunk Phillips Screw M4 x 8
-
2234040600 Washer 4 mmWasher 4 mm
-
3275500263 Fuel Valve KnobFuel Valve Knob
-
4212100009 Nut Hex. PlasticNut Hex. Plastic
-
5275500291 Fuel TankFuel Tank
-
6275500098 Fuel ValveFuel Valve
-
7232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
8275500285 Fuel Valve PlateFuel Valve Plate
-
9293250004 Valve GasketValve Gasket
-
10293650023 Tridon ClampTridon Clamp
-
11275500139 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
12270000728 Choke Cable. Includes 12 - 16.Choke Cable. Includes 12 - 16.
-
13211100030 Nut HexNut Hex
-
15212100003 Lock Nut M6Lock Nut M6
-
16213200001 Flat Washer 6 mmFlat Washer 6 mm
-
17275500088 Fuel Filter Ass'y. Includes 17 - 19.Fuel Filter Ass'y. Includes 17 - 19.
-
18275500089 Fuel FilterFuel Filter
-
19275500090 O-RingO-Ring
-
20275500473 Baffle Pick Up. Includes 20 - 22.Baffle Pick Up. Includes 20 - 22.
-
21275500111 Tube AdapterTube Adapter
-
22275500397 Fuel FilterFuel Filter
-
23293650042 Clamp OetikerClamp Oetiker
-
24293750005 Tie ClampTie Clamp
-
25275500287 Fuel Filter SupportFuel Filter Support
-
26275500479 Pressure Relief ValvePressure Relief Valve
-
27293830077 Pad RubberPad Rubber
-
28293730006 Dart (Black)Dart (Black)
-
29293650035 Tridon ClampTridon Clamp
-
30275500295 Filler Neck HoseFiller Neck Hose
-
31293250029 GasketGasket
-
32275500231 Filler NeckFiller Neck
-
33293650038 Tridon ClampTridon Clamp
-
34293710039 Straight FittingStraight Fitting
-
35293250075 GasketGasket
-
36211100012 Nut Neck Filler FuelNut Neck Filler Fuel
-
37275500430 Fuel Tank Cap. Includes 37 - 38.Fuel Tank Cap. Includes 37 - 38.
-
38293000034 Cap Snap (Black)Cap Snap (Black)
-
39275500398 Check ValveCheck Valve
-
40293850026 Strap. Includes 40 - 41.Strap. Includes 40 - 41.
-
41293850024 Strap ClipStrap Clip
-
42293720029 GrommetGrommet
-
43293150037 Rivet Avdel 3/16Rivet Avdel 3/16
-
44293750008 Tie Rap 350 mmTie Rap 350 mm
-
45275500241 PlugPlug
-
46293150043 Pop Rivet 3/16Pop Rivet 3/16
-
47293710024 > Fitting> Fitting
-
48414115200 Tie RapTie Rap
-
49293750001 Tie Rap 94 mmTie Rap 94 mm
-
50293850025 Strap. Includes 50 - 51.Strap. Includes 50 - 51.
-
51293850024 Strap ClipStrap Clip
