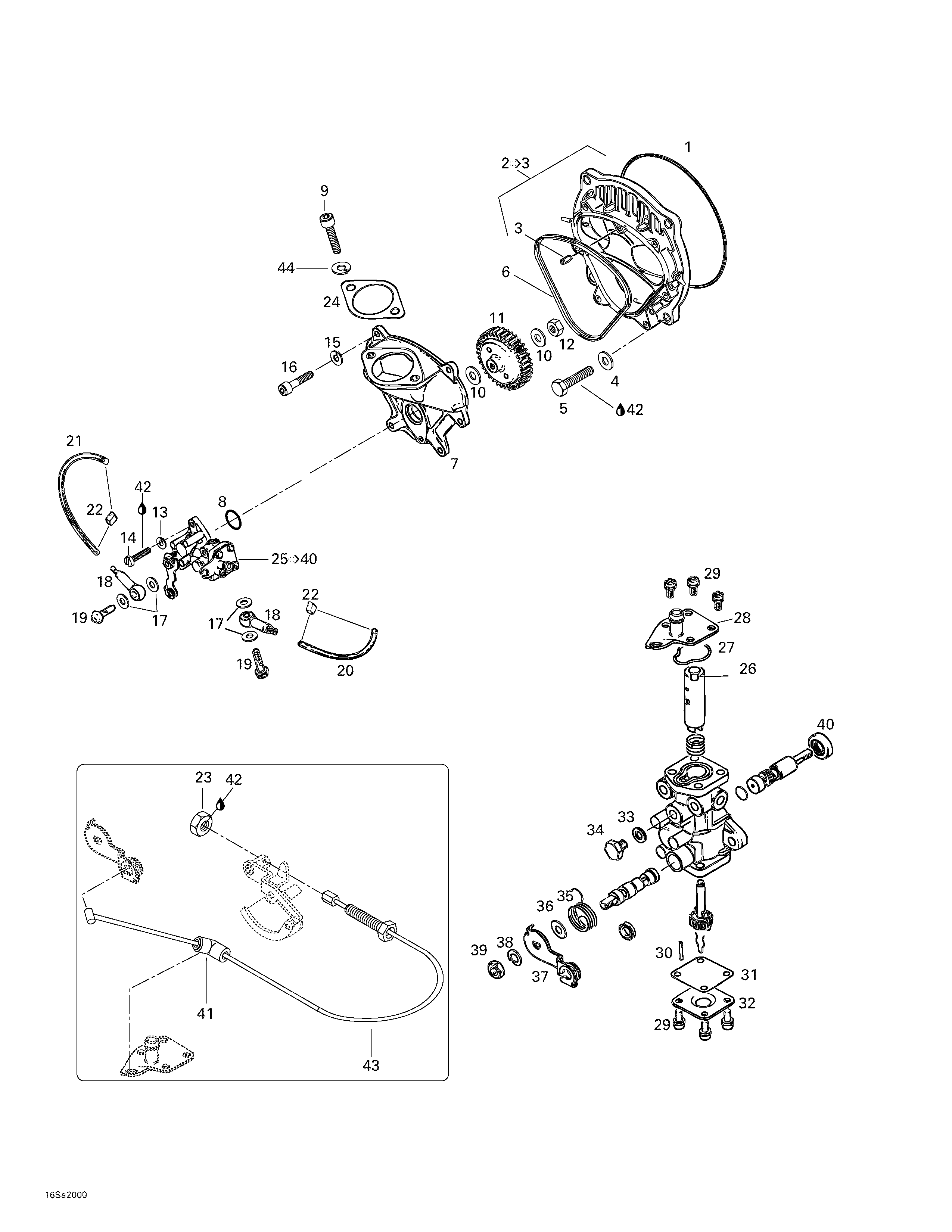

02- Oil Injection System, Oil Pump, Rotary Valve для BRP GS, 5644/5827 - 2000
-
№АртикулНазвание
-
1293300023 O-RingO-Ring
-
2290811252 Rotary Valve Cover. Includes 2 - 3.Rotary Valve Cover. Includes 2 - 3.
-
3420929650 Dowel PinDowel Pin
-
4290250313 Washer 8.4 mmWasher 8.4 mm
-
5290940598 Hexagonal Screw M8 x 20Hexagonal Screw M8 x 20
-
6290850160 O-RingO-Ring
-
7290811193 Oil Pump FlangeOil Pump Flange
-
8293300018 O-RingO-Ring
-
9205587560 Screw Allen M8 x 75 (Scotch Grip)Screw Allen M8 x 75 (Scotch Grip)
-
10420927945 Washer 6.2 mmWasher 6.2 mm
-
11420935945 Oil Pump Gear 41 TeethOil Pump Gear 41 Teeth
-
12232561414 Lock Nut M6Lock Nut M6
-
13290845389 Lock WasherLock Washer
-
14205051660 Cylindrical Slotted Screw M5 x 16Cylindrical Slotted Screw M5 x 16
-
15290845381 Lock Washer 6 mmLock Washer 6 mm
-
16205062060 Allen Screw M6 x 20Allen Screw M6 x 20
-
17404146600 Seal WasherSeal Washer
-
18420956010 Check ValveCheck Valve
-
19290241830 Valve Bolt M6 x 16Valve Bolt M6 x 16
-
20414413800 Oil Line (120 mm - 190 mm)Oil Line (120 mm - 190 mm)
-
21414413800 Oil Line (120 mm - 190 mm)Oil Line (120 mm - 190 mm)
-
22290853843 Clamp 3.5 mmClamp 3.5 mm
-
23232160600 Jam Nut M6Jam Nut M6
-
24293250070 GasketGasket
-
25290996725 Oil Pump Ass'y. Includes 25 - 40.Oil Pump Ass'y. Includes 25 - 40.
-
26290256085 RetainerRetainer
-
27293300019 O-RingO-Ring
-
28290956340 Pump Upper PlatePump Upper Plate
-
29420241975 Screw with Lock Washer 4 mm x 8Screw with Lock Washer 4 mm x 8
-
30290929900 Stop PinStop Pin
-
31420850200 GasketGasket
-
32290956031 Pump Lower PlatePump Lower Plate
-
33420227505 GasketGasket
-
34290841583 Hexagonal Screw M6 x 8Hexagonal Screw M6 x 8
-
36290227665 Washer 6.2 mmWasher 6.2 mm
-
37290848162 Lever ControlLever Control
-
38290845381 Lock Washer 6 mmLock Washer 6 mm
-
39290242623 Nut M6Nut M6
-
40293200038 SealSeal
-
41270000187 Cable GuideCable Guide
-
42293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
43270000386 Injection CableInjection Cable
-
44234081600 Lock Washer 8 mmLock Washer 8 mm
-
45290886316 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
-
46290886317 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
