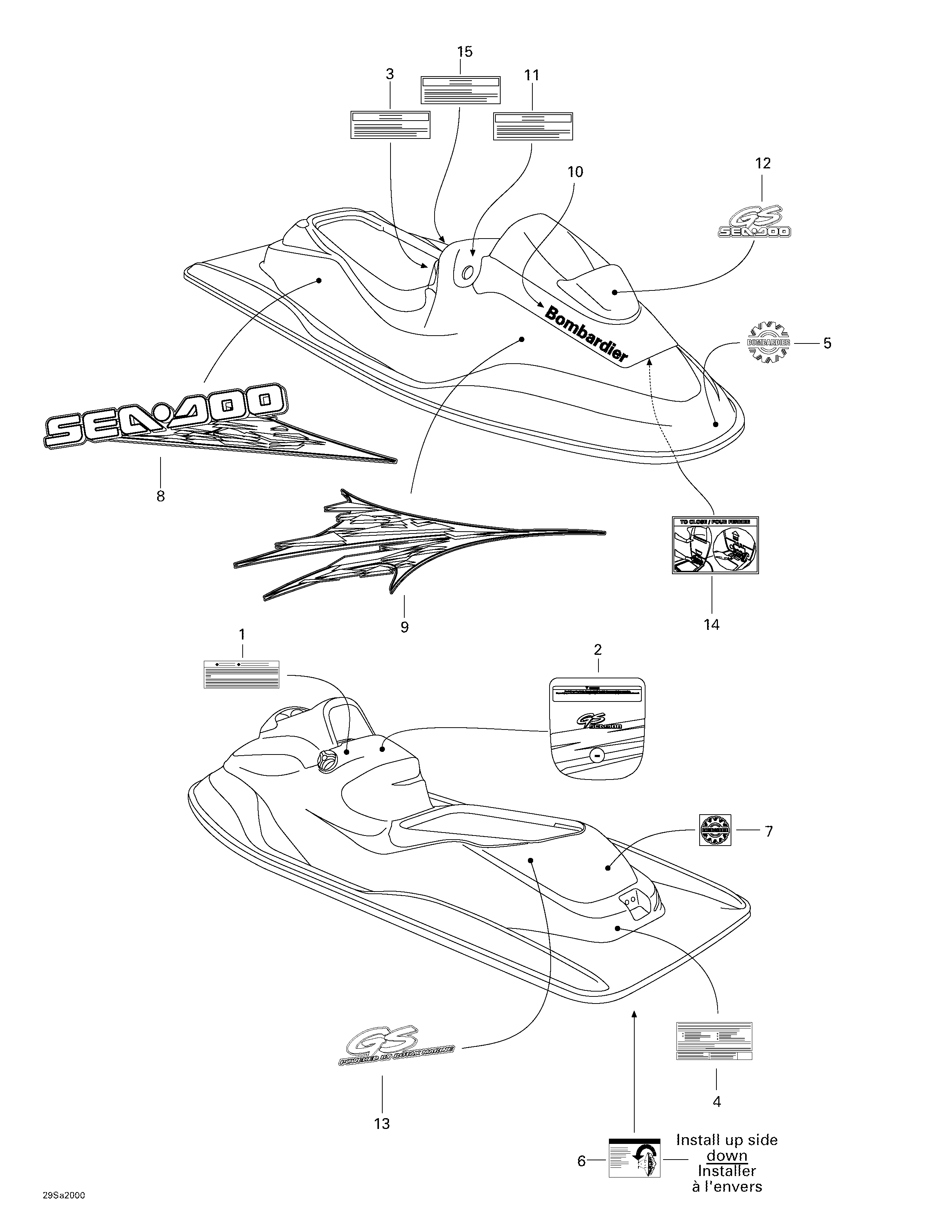

09- Decals для BRP GS, 5644/5827 - 2000
-
№АртикулНазвание
-
1219901209 > Decal> Decal
-
2219901217 Dash Decal GSDash Decal GS
-
3219900965 Warning Decal (Battery)Warning Decal (Battery)
-
4219900656 > Decal> Decal
-
5516000282 > Logo> Logo
-
6219900934 > Decal> Decal
-
7219901180 > Logo Decal> Logo Decal
-
8219901216 R.H. Lateral Rear DecalR.H. Lateral Rear Decal
-
219901215 LH Lateral Rear DecalLH Lateral Rear Decal
-
9219901214 R.H. Lateral Front DecalR.H. Lateral Front Decal
-
219901213 LH Lateral Front DecalLH Lateral Front Decal
-
10219901219 > Decal> Decal
-
11219900933 Warning Decal (Oil)Warning Decal (Oil)
-
12219901220 > Identification Decal> Identification Decal
-
13219901218 > Identification Decal> Identification Decal
-
14219900795 Instruction DecalInstruction Decal
-
15219901527 EPA 717 DecalEPA 717 Decal
