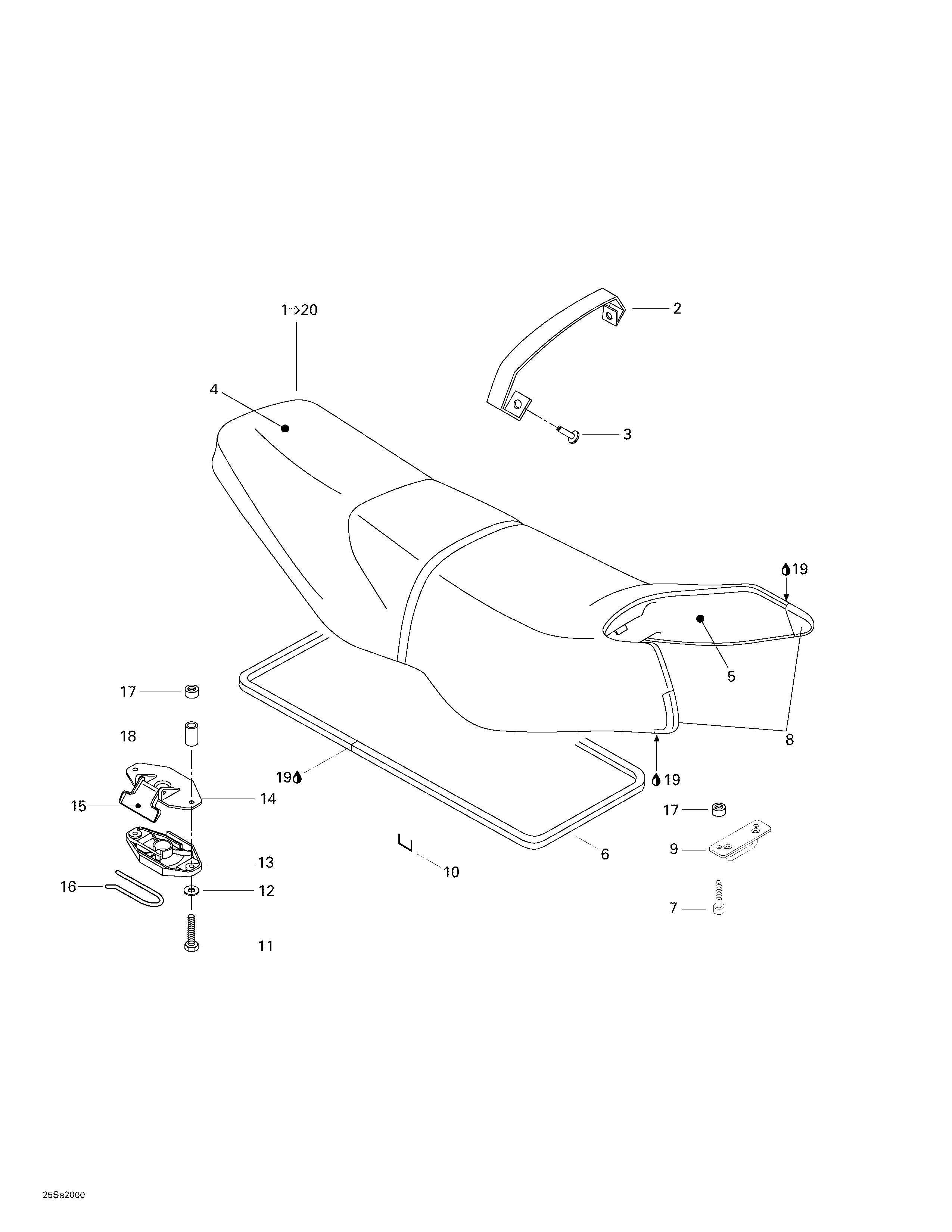

09- Seat And Engine Cover для BRP GS, 5644/5827 - 2000
-
№АртикулНазвание
-
1269000531 Seat Ass'y (Wine Red). Includes 1 - 19.Seat Ass'y (Wine Red). Includes 1 - 19.
-
2269000557 Seat StrapSeat Strap
-
3293150067 Rivet TriFastRivet TriFast
-
4269000556 Seat Cover with FoamSeat Cover with Foam
-
6293200017 > Neoprene Seal (Meter)> Neoprene Seal (Meter)
-
7205561660 Hex. Screw M6 x 16 (Scotch Grip)Hex. Screw M6 x 16 (Scotch Grip)
-
8269000559 RH Corner SeatRH Corner Seat
-
269000558 LH Corner SeatLH Corner Seat
-
9291001357 Base KeeperBase Keeper
-
10293730005 Staple (Monelle)Staple (Monelle)
-
11207363560 Hex. Screw M6 x 35 (Scotch Grip)Hex. Screw M6 x 35 (Scotch Grip)
-
12234061600 Washer 6 mmWasher 6 mm
-
13269000015 Latch BaseLatch Base
-
14269700020 Latch CoverLatch Cover
-
15269000016 Latch LeverLatch Lever
-
16269700017 SpringSpring
-
17293100003 Nut M6Nut M6
-
18291000532 SpacerSpacer
-
19413705800 Loctite 414, 29,5 ccLoctite 414, 29,5 cc
