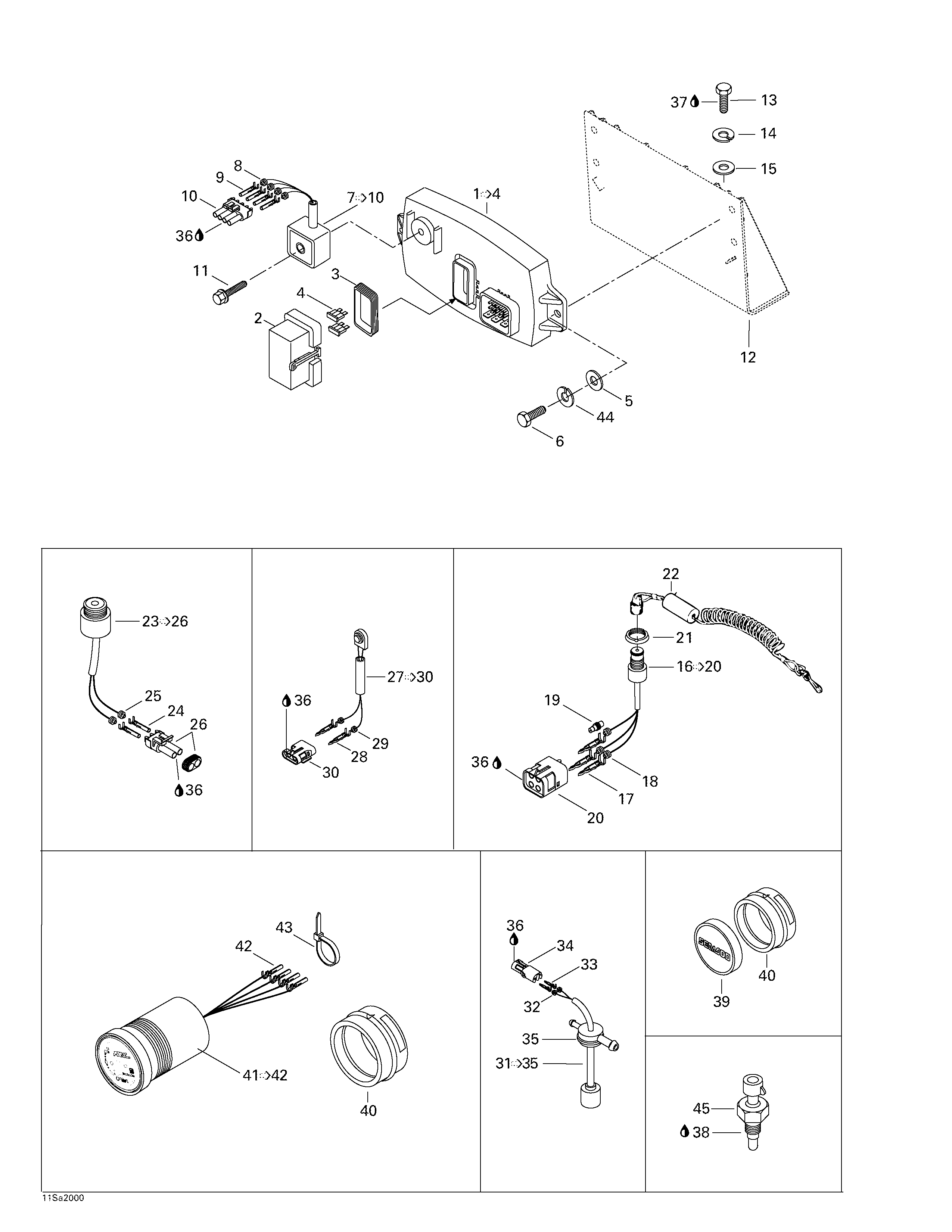

10- Electronic Module And Electrical Accessories для BRP GS, 5644/5827 - 2000
-
№АртикулНазвание
-
1278001496 Electronic Module Ass'y. Includes 1 - 4.Electronic Module Ass'y. Includes 1 - 4.
-
2278001069 Fuse Holder CapFuse Holder Cap
-
3278001070 SealSeal
-
4278000343 Fuse 15 AmpFuse 15 Amp
-
278000344 Fuse 5 AmpFuse 5 Amp
-
5234062600 Washer 6 mmWasher 6 mm
-
6207161660 Screw Hex. M6 x 16Screw Hex. M6 x 16
-
7278001239 Rectifier Ass'y. Includes 7 - 10.Rectifier Ass'y. Includes 7 - 10.
-
8278000218 Wire SealWire Seal
-
9409007300 Female Terminal (16 Gauge)(Packard)Female Terminal (16 Gauge)(Packard)
-
10278000395 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
11211000139 Screw Hex. Tapping M5.74 x 35Screw Hex. Tapping M5.74 x 35
-
13243042060 Screw Plastite M4Screw Plastite M4
-
14211200043 Lock WasherLock Washer
-
15234052600 Washer 5 mmWasher 5 mm
-
16278000977 Safety Switch. Includes 16 - 20.Safety Switch. Includes 16 - 20.
-
17278000222 Male terminal (18 Gauge)Male terminal (18 Gauge)
-
18278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
19278000216 Wire Seal(Packard)Wire Seal(Packard)
-
20278000890 Female Housing (4 Circuits)Female Housing (4 Circuits)
-
21278000508 Safety Switch NutSafety Switch Nut
-
22278001543 Safety Landyard Ass'ySafety Landyard Ass'y
-
23278000978 Buzzer Ass'y. Includes 23 - 26.Buzzer Ass'y. Includes 23 - 26.
-
24278000223 Female Terminal (18 Gauge)Female Terminal (18 Gauge)
-
25278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
26278000220 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
27278001358 Ignition Switch Ass'y (Stop / Start). Includes 27 - 30.Ignition Switch Ass'y (Stop / Start). Includes 27 - 30.
-
28278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
29278000218 Wire Seal (16-18 Gauge) (Green) (Packard)Wire Seal (16-18 Gauge) (Green) (Packard)
-
30278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
31278001401 Oil sensor. Includes 31 - 35.Oil sensor. Includes 31 - 35.
-
32278000218 Wire Seal (16 and 18 gauge - green)Wire Seal (16 and 18 gauge - green)
-
33278000222 Male terminal (18 Gauge)(Packard)Male terminal (18 Gauge)(Packard)
-
34278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
35293720008 GrommetGrommet
-
36293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
37293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
38293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
39293000088 Gauge CapGauge Cap
-
40293720047 Gauge SupportGauge Support
-
41278001365 Oil / Fuel Level Gauge. Includes 41 - 42.Oil / Fuel Level Gauge. Includes 41 - 42.
-
42278000995 Female Terminal(AMP)Female Terminal(AMP)
-
43293750002 Tie Rap 130 mmTie Rap 130 mm
-
44234161601 Lock Washer 6mmLock Washer 6mm
-
45278000965 Temperature SensorTemperature Sensor
