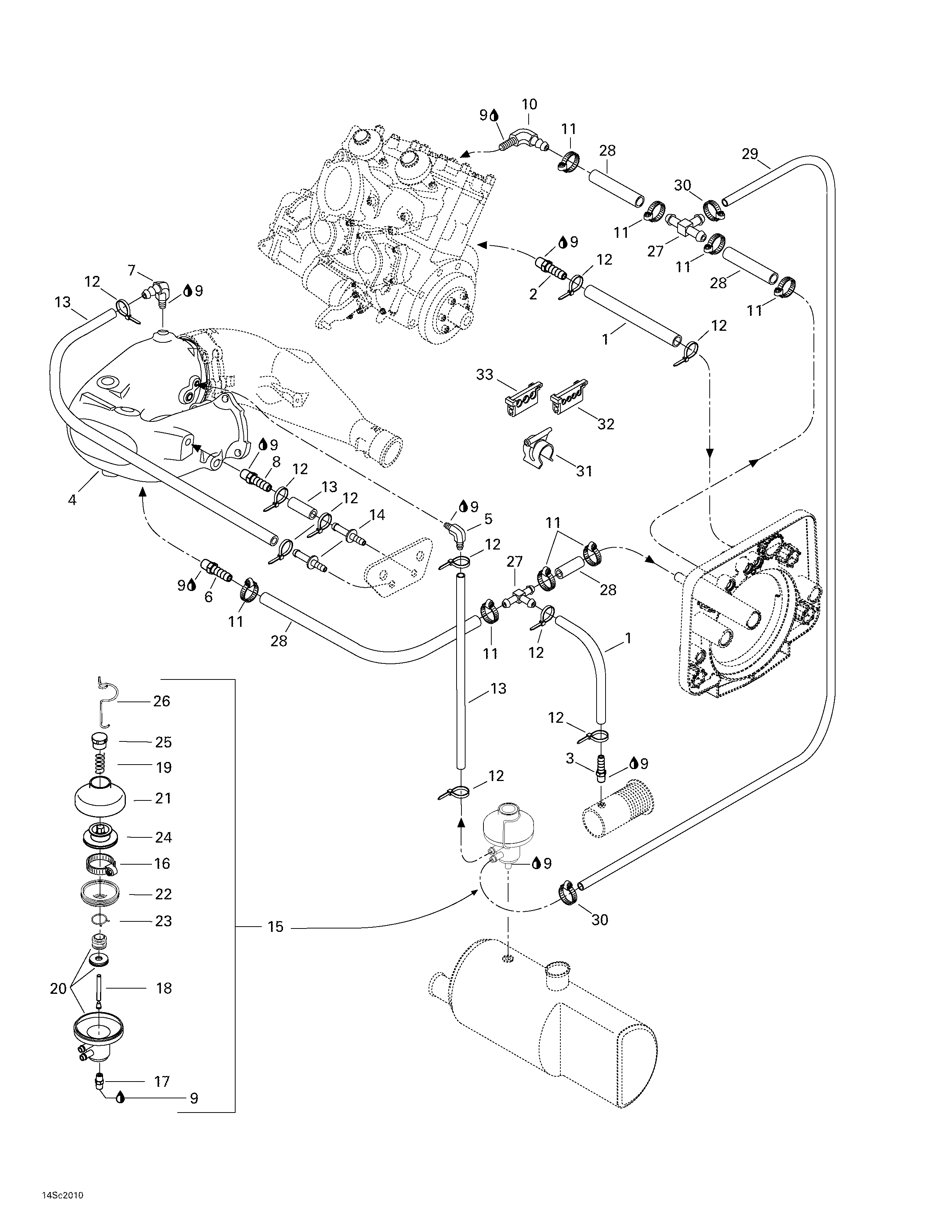

01- Cooling System для BRP LRV, 5688 - 2000
-
№АртикулНазвание
-
1275000007 Hose 8 mmHose 8 mm
-
2293710066 Male ConnectorMale Connector
-
3293710017 Male ConnectorMale Connector
-
4274000768 Head Pipe Ass'y. Includes 4 - 8.Head Pipe Ass'y. Includes 4 - 8.
-
5293710018 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
6293710021 Male ConnectorMale Connector
-
7293710048 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
8293710037 Male ConnectorMale Connector
-
9293800013 Loctite 56765, Pipe Sealant, 250mlLoctite 56765, Pipe Sealant, 250ml
-
10293700023 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
11293650037 Tridon ClampTridon Clamp
-
12293750001 Tie Rap 94 mmTie Rap 94 mm
-
13276000048 Hose 6 mmHose 6 mm
-
14291000306 Bleed FittingBleed Fitting
-
15274000556 Pressure Regulator Ass'y. Includes 15 - 26.Pressure Regulator Ass'y. Includes 15 - 26.
-
16293650065 ClampClamp
-
17293700010 Male FittingMale Fitting
-
18274000423 Feeding RodFeeding Rod
-
19274000382 SpringSpring
-
21420911551 Valve CoverValve Cover
-
22420260721 BellowsBellows
-
23420838190 ClampClamp
-
24420253255 Exhaust ValveExhaust Valve
-
25420241220 Adjustment ScrewAdjustment Screw
-
26420838082 Spring ClampSpring Clamp
-
27293710025 T FittingT Fitting
-
28276000001 Hose 12.5 mmHose 12.5 mm
-
29275500345 Hose 8 mmHose 8 mm
-
30293650038 Tridon ClampTridon Clamp
-
31278000559 Support CollarSupport Collar
-
32278000346 4-Wire Support4-Wire Support
-
33278000245 3-Wire Support3-Wire Support
