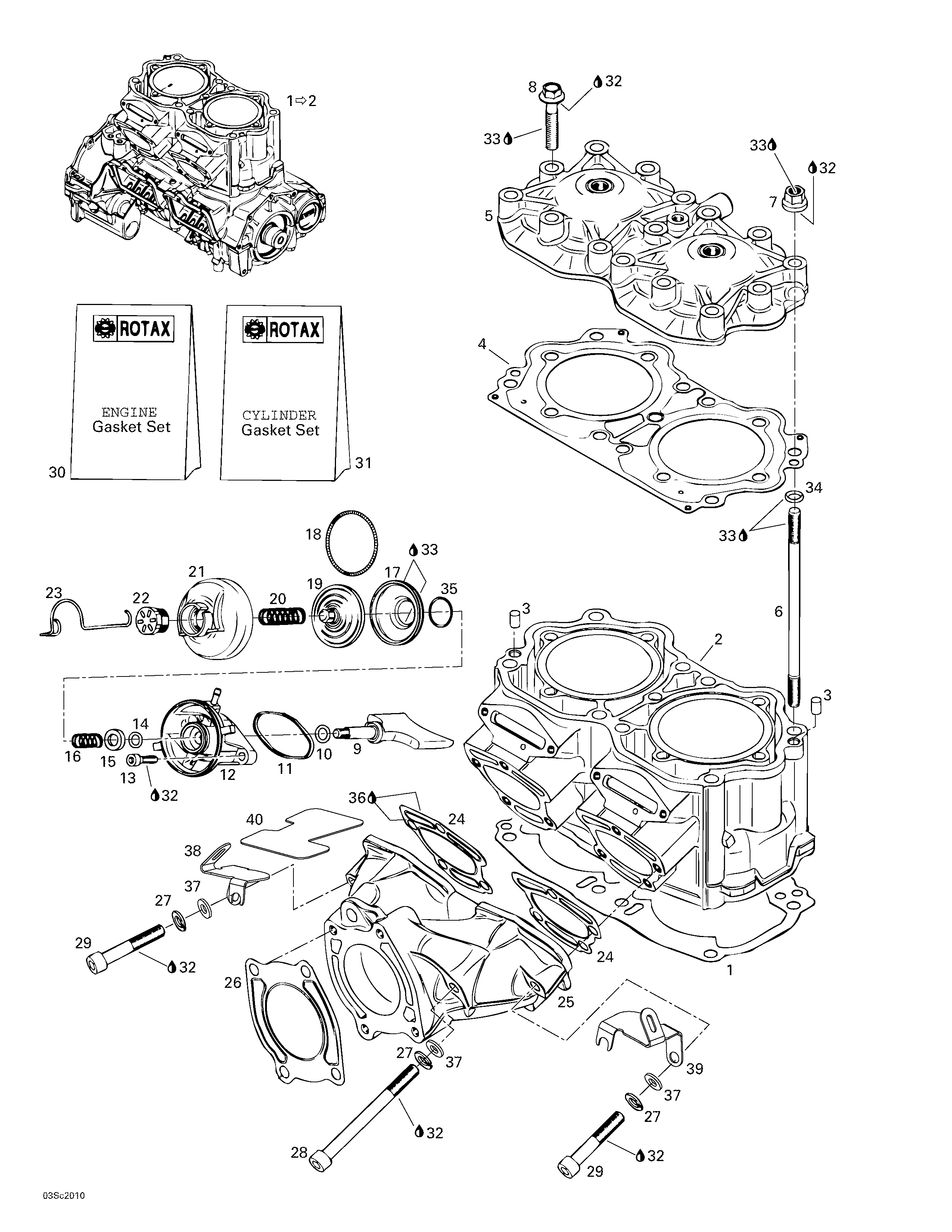

01- Cylinder, Exhaust Manifold для BRP LRV, 5688 - 2000
-
№АртикулНазвание
-
1290094702 Short Block Ass'y. Includes 1 - 2.Short Block Ass'y. Includes 1 - 2.
-
1290931687 Gasket Cylinder 0.8 mmGasket Cylinder 0.8 mm
-
290931686 Gasket Cylinder 0.6 mmGasket Cylinder 0.6 mm
-
290931685 Gasket Cylinder 0.5 mmGasket Cylinder 0.5 mm
-
2290923569 Cylinder with Sleeve (Silver)Cylinder with Sleeve (Silver)
-
3290632010 Pin 8 x 12Pin 8 x 12
-
4290931702 Cylinder Head GasketCylinder Head Gasket
-
5290923584 Head Cylinder (Silver)Head Cylinder (Silver)
-
6290640232 Stud M10 x 200Stud M10 x 200
-
7290842863 Stud Nut M10Stud Nut M10
-
8290841708 Screw Hex. Flange M10 x 60Screw Hex. Flange M10 x 60
-
9290854410 Exhaust ValveExhaust Valve
-
10290931765 O-RingO-Ring
-
11290931670 Rubber GasketRubber Gasket
-
12290854435 Valve HousingValve Housing
-
13205062560 Socket Head Screw M6 x 25Socket Head Screw M6 x 25
-
14290931765 O-RingO-Ring
-
15290926220 Support RingSupport Ring
-
16290838260 SpringSpring
-
17290260723 BellowsBellows
-
18290239048 Hose SpringHose Spring
-
19290854445 Exhaust ValveExhaust Valve
-
20290939137 Spring CompressionSpring Compression
-
21290911555 Cover ValveCover Valve
-
22420241220 Screw AdjustmentScrew Adjustment
-
23420838082 Spring ClipSpring Clip
-
24293250081 GasketGasket
-
25290979604 Exhaust Manifold (Silver)Exhaust Manifold (Silver)
-
26293250080 GasketGasket
-
27234101601 Lock Washer 10 mmLock Washer 10 mm
-
28290941483 Socket Head Screw M10 x 110Socket Head Screw M10 x 110
-
29205006060 Socket Head Screw M10 x 60Socket Head Screw M10 x 60
-
30290888131 Engine Gasket SetEngine Gasket Set
-
31290888136 Cylinder Gasket SetCylinder Gasket Set
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33413707000 Molykote 111Molykote 111
-
34290850460 O-RingO-Ring
-
35420838253 Clamp SpringClamp Spring
-
36293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
37234000600 Flat Washer 10 mmFlat Washer 10 mm
-
38273000156 Duct Support (MAG)Duct Support (MAG)
-
39273000155 Duct Support (PTO)Duct Support (PTO)
-
40273000161 Pad ProtectorPad Protector
