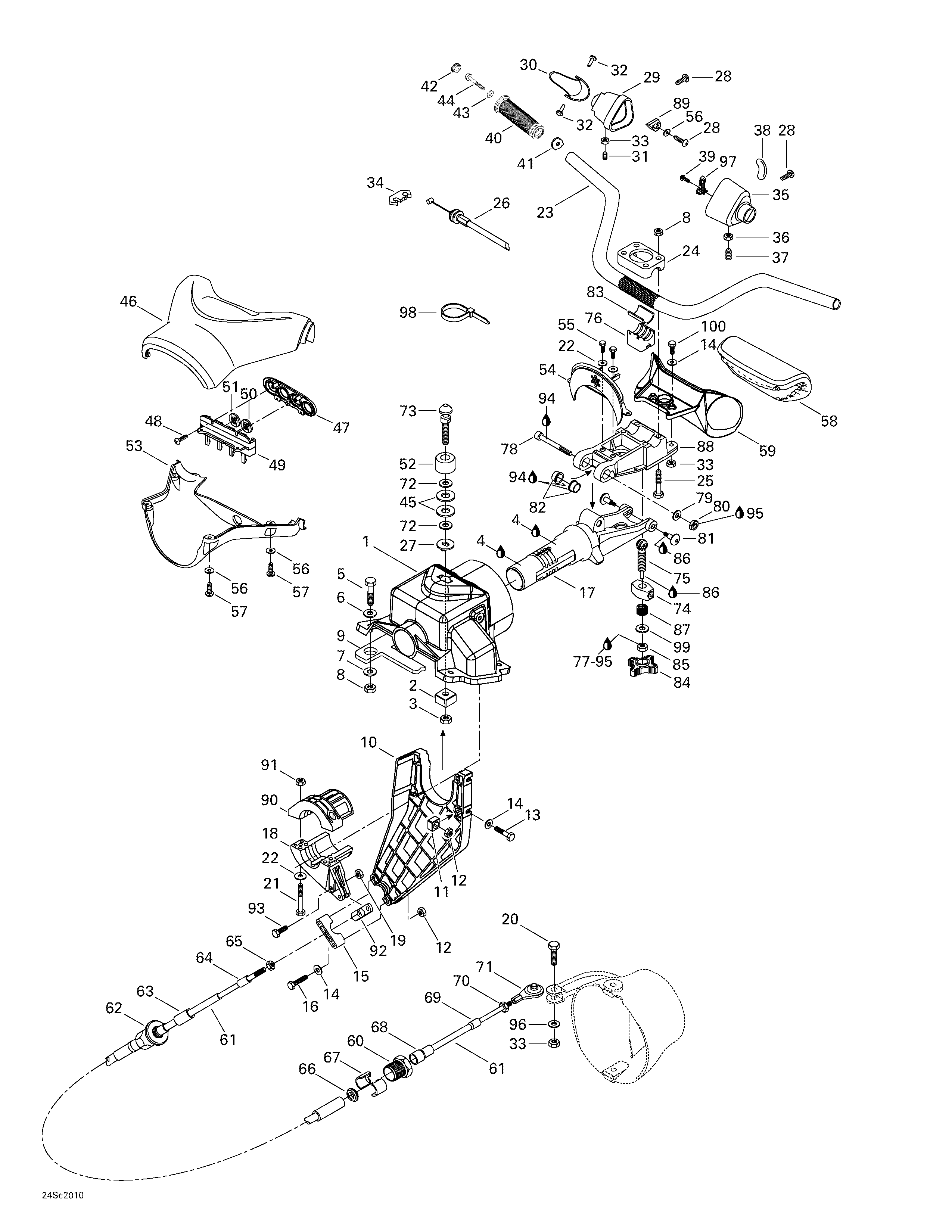

07- Steering System для BRP LRV, 5688 - 2000
-
№АртикулНазвание
-
1277000515 Steering Support. Includes 1 - 3.Steering Support. Includes 1 - 3.
-
2271000598 Nut Housing. Includes 2 - 3.Nut Housing. Includes 2 - 3.
-
3232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
4293550010 Synthetic Grease, 400grSynthetic Grease, 400gr
-
5207083560 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
6234081600 Flat Washer 8 mmFlat Washer 8 mm
-
7234082600 Flat Washer 8 mmFlat Washer 8 mm
-
8232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
9293250068 GasketGasket
-
10277000516 Cable Support. Includes 10 - 12.Cable Support. Includes 10 - 12.
-
11269500252 Nut HousingNut Housing
-
12232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
13207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
14234061600 Flat Washer 6 mmFlat Washer 6 mm
-
15277000162 Thrust SupportThrust Support
-
16207065060 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
17277000758400 Steering StemSteering Stem
-
18277000573 Steering Stem Arm. Includes 18 - 19.Steering Stem Arm. Includes 18 - 19.
-
19232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
20207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
21207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
22234062600 Flat Washer 6 mmFlat Washer 6 mm
-
23277000840 Handle barHandle bar
-
24277000142 Steering ClampSteering Clamp
-
25207087060 Hex. Screw M8 x 70Hex. Screw M8 x 70
-
26204390207 Throttle CableThrottle Cable
-
27293450152 Nylon InsertNylon Insert
-
28209630960 Screw TaptiteScrew Taptite
-
29277000285 Throttle Handle HousingThrottle Handle Housing
-
30277000214 Throttle HandleThrottle Handle
-
31206361260 Set Screw M6 x 12Set Screw M6 x 12
-
32277000381 PinPin
-
33232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
34277000279 Lock TabLock Tab
-
35277000036 LH Handle Housing Ass'y. Includes 35 - 38.LH Handle Housing Ass'y. Includes 35 - 38.
-
36232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
37206361260 Set Screw M6 x 12Set Screw M6 x 12
-
38277000306 Switch KnobSwitch Knob
-
39209631360 Tapping ScrewTapping Screw
-
40295500691 Handle Grip Kit. Includes 40 - 44.Handle Grip Kit. Includes 40 - 44.
-
42277000203 Grip CapGrip Cap
-
43234062600 Flat Washer 6 mmFlat Washer 6 mm
-
44250000002 Hex. Screw M6 x 30 (Scotch Grip)Hex. Screw M6 x 30 (Scotch Grip)
-
45291000628 Rubber WasherRubber Washer
-
46277000753 Upper Steering Cover. Includes 46 - 51.Upper Steering Cover. Includes 46 - 51.
-
47277000688 Retainer PlateRetainer Plate
-
48241140060 Screw K40 x 10Screw K40 x 10
-
49277000563 Switch SupportSwitch Support
-
50293000079 > Knob> Knob
-
51293000080 > Knob> Knob
-
52293830025 Rubber PadRubber Pad
-
53277000890 Lower Steering CoverLower Steering Cover
-
54277000766 PlatePlate
-
55211000036 Screw TaptiteScrew Taptite
-
56234051600 Flat Washer 5 mmFlat Washer 5 mm
-
57241141660 Screw K40 x 16Screw K40 x 16
-
58277000723 Pad-Handle. Includes 58 - 59.Pad-Handle. Includes 58 - 59.
-
59277000687 Pad SupportPad Support
-
60277000784 Cable LockCable Lock
-
61204390205 Steering Cable. Includes 61 - 65.Steering Cable. Includes 61 - 65.
-
62277000782 Knob AdjusterKnob Adjuster
-
63277000846 Large BootLarge Boot
-
64277000849 Small BootSmall Boot
-
65211100056 Nut 1/4''-28Nut 1/4''-28
-
66293830063 Rubber WasherRubber Washer
-
67277000783 Half RingHalf Ring
-
68277000846 Large BootLarge Boot
-
69277000849 Small BootSmall Boot
-
70211100056 Nut 1/4''-28Nut 1/4''-28
-
71277000775 Ball JointBall Joint
-
72234002600 Flat Washer 10 mmFlat Washer 10 mm
-
73291000987 Stud LatchStud Latch
-
74277000761 Threaded BlockThreaded Block
-
75211000145 Adjuster ScrewAdjuster Screw
-
76277000762 StopperStopper
-
77293800041 Loctite - Primer NLoctite - Primer N
-
78250000004 Socket Head Screw M10 x 73 (Scotch Grip)Socket Head Screw M10 x 73 (Scotch Grip)
-
79234001600 Flat Washer 10 mmFlat Washer 10 mm
-
80232100600 Nut M10Nut M10
-
81277000763 Threaded PivotThreaded Pivot
-
82277000844 Support BushingSupport Bushing
-
83293830071 Rubber PadRubber Pad
-
84277000764 Adjustment HandleAdjustment Handle
-
85232180600 Nut M8Nut M8
-
86293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
87277000786 Stopper BushingStopper Bushing
-
88277000834 Steering SupportSteering Support
-
89293450153 Nylon InsertNylon Insert
-
90277000519 Thrust Arm. Includes 90 - 91.Thrust Arm. Includes 90 - 91.
-
91232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
92277000774 JointJoint
-
93211000081 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
94293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
95293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
96234061600 Flat Washer 6 mmFlat Washer 6 mm
-
97277000845 Retainer PlateRetainer Plate
-
98293750001 Tie Rap 94 mmTie Rap 94 mm
-
99234082600 Flat Washer 8 mmFlat Washer 8 mm
-
100207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
