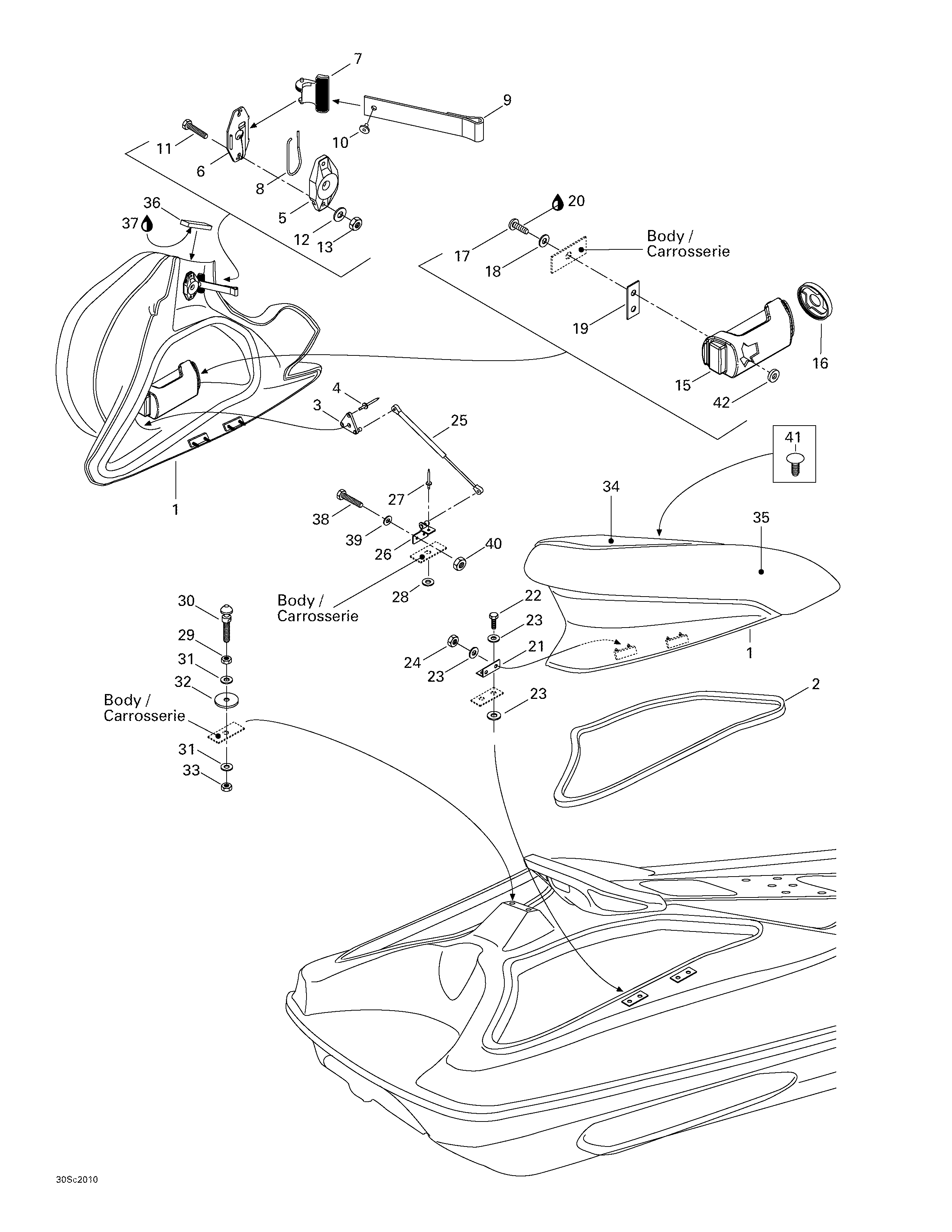

09- Body для BRP LRV, 5688 - 2000
-
№АртикулНазвание
-
2293200017 Neoprene SealNeoprene Seal
-
3291000615 Body Cylinder SupportBody Cylinder Support
-
4293150011 Pop Rivet 3/16Pop Rivet 3/16
-
5204070577 Latch Ass'y. Includes 5 - 10.Latch Ass'y. Includes 5 - 10.
-
5269000015 Latch BaseLatch Base
-
6269700020 Latch CoverLatch Cover
-
7269000016 Latch LeverLatch Lever
-
8269700017 Latch SpringLatch Spring
-
9204070578 StrapStrap
-
10293150070 Ratchet RivetRatchet Rivet
-
11207064560 Hex. Screw M6 x 45Hex. Screw M6 x 45
-
12234062600 Flat washer 6 mmFlat washer 6 mm
-
13232561600 Elastic Stop Nut Hex. M6Elastic Stop Nut Hex. M6
-
14269700015 ShimShim
-
15204630105 Storage Housing (Port Side Door)Storage Housing (Port Side Door)
-
16269500604 Storage CapStorage Cap
-
17208662060 Screw M6 x 20Screw M6 x 20
-
18234062600 Flat Washer 6 mmFlat Washer 6 mm
-
19293250037 GasketGasket
-
20293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
21204070682 HingeHinge
-
22207152560 Hex. Screw M5 x 25Hex. Screw M5 x 25
-
23234052600 Flat Washer 5 mmFlat Washer 5 mm
-
24232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
25204070663 Retainer CylinderRetainer Cylinder
-
26204070678 Cylinder SupportCylinder Support
-
27293150043 Pop Rivet 3/16Pop Rivet 3/16
-
28234051600 Flat Washer 5 mmFlat Washer 5 mm
-
29232100600 Jam Nut M10Jam Nut M10
-
30291000945 Latch StudLatch Stud
-
31234002600 Washer 10 mmWasher 10 mm
-
32291000628 Rubber WasherRubber Washer
-
33232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
34204610663 Rear Cushion Ass'y Starboard R.HRear Cushion Ass'y Starboard R.H
-
204610664 Rear Cushion Ass'y Port Side L.HRear Cushion Ass'y Port Side L.H
-
35204610665 Spoiler Ass'y Starboard R.HSpoiler Ass'y Starboard R.H
-
204610666 Spoiler Ass'y Port Side L.HSpoiler Ass'y Port Side L.H
-
36204070446 Door Trim 7/16 (White)Door Trim 7/16 (White)
-
37413705800 Loctite 414, 29.5 ccLoctite 414, 29.5 cc
-
38207151660 Screw Hex M5 x 16Screw Hex M5 x 16
-
39211200033 Flat Washer 5 mmFlat Washer 5 mm
-
40232551600 Elastic Stop Nut Hex. M5Elastic Stop Nut Hex. M5
-
41293730014 Dart (Black)Dart (Black)
