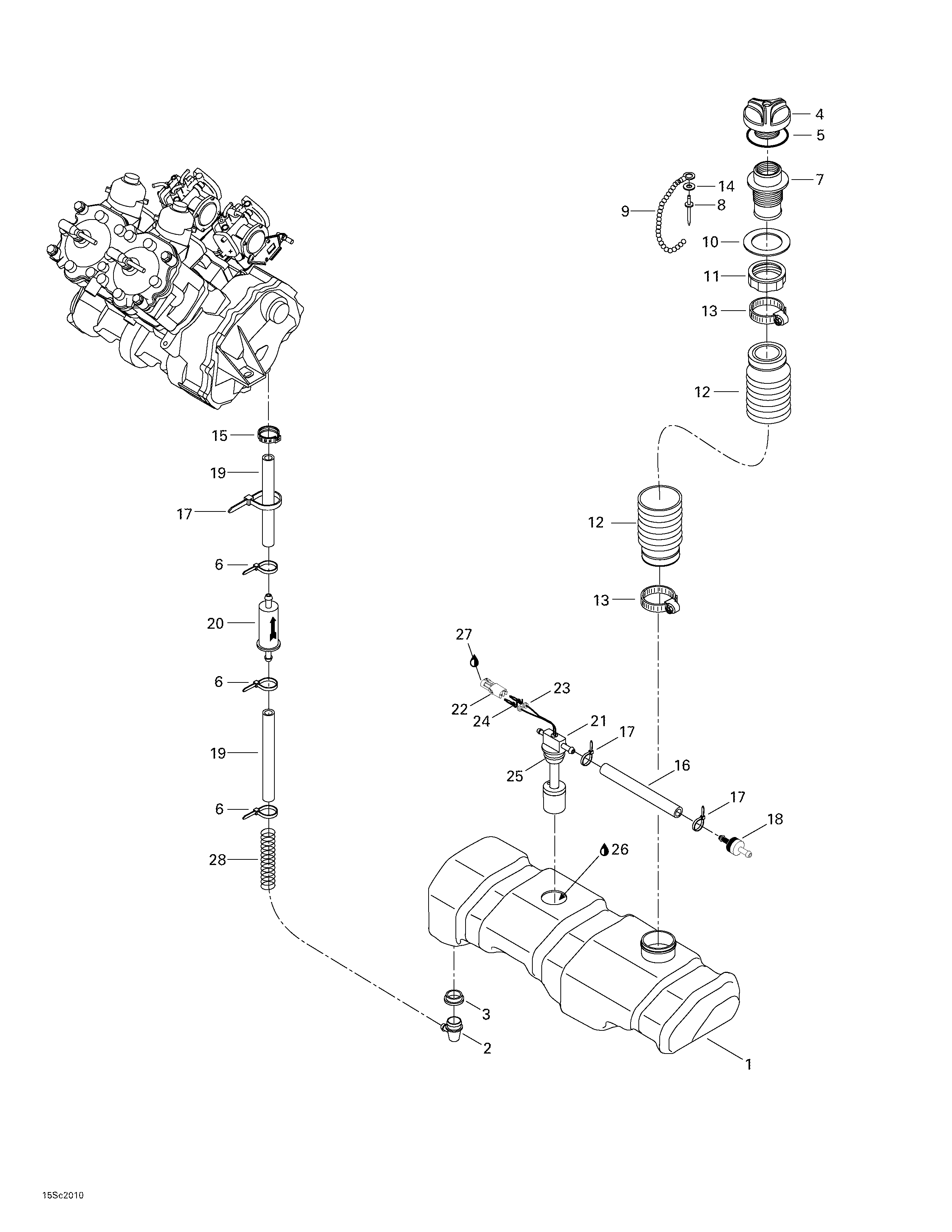

02- Oil Injection System для BRP LRV, 5688 - 2000
-
№АртикулНазвание
-
1275000172 Oil TankOil Tank
-
2293710070 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
3293720008 GrommetGrommet
-
4275000186 Oil Cap. Includes 4 - 5.Oil Cap. Includes 4 - 5.
-
5293250025 O'RingO'Ring
-
6293750001 Tie Rap 94 mmTie Rap 94 mm
-
7275000212 Filler NeckFiller Neck
-
8390407900 Pop Rivet 1/8Pop Rivet 1/8
-
9275500015 ChainChain
-
10293250016 GasketGasket
-
11211100013 Filler Neck NutFiller Neck Nut
-
12275000185 Filler HoseFiller Hose
-
13293650035 Tridon Gear ClampTridon Gear Clamp
-
14234032600 Flat Washer 3 mmFlat Washer 3 mm
-
15293650042 Oetiker ClampOetiker Clamp
-
16275500139 Hose 6 mmHose 6 mm
-
17293750002 Tie Rap 130 mmTie Rap 130 mm
-
18275500398 Check ValveCheck Valve
-
19275000007 Hose 8 mmHose 8 mm
-
20275000051 Oil FilterOil Filter
-
21278001402 Oil Level Sensor Ass'y. Includes 21 - 25.Oil Level Sensor Ass'y. Includes 21 - 25.
-
22278000217 Female Housing Tab (2 Ways)Female Housing Tab (2 Ways)
-
23278000218 Wire Seal (Not Shown)Wire Seal (Not Shown)
-
24278000222 Male Terminal (Not Shown)Male Terminal (Not Shown)
-
25293720008 GrommetGrommet
-
26413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liters)Injection Oil (3 x 4 Liters)
-
413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
413710500 Synthetic Injection Oil (12 x 1 Liter)Synthetic Injection Oil (12 x 1 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liters)Synthetic Injection Oil (3 x 4 Liters)
-
413710700 Synthetic Injection Oil (205 Liters)Synthetic Injection Oil (205 Liters)
-
27293550004 Dielectric Grease, 150 grDielectric Grease, 150 gr
-
28204050064 Coil SpringCoil Spring
