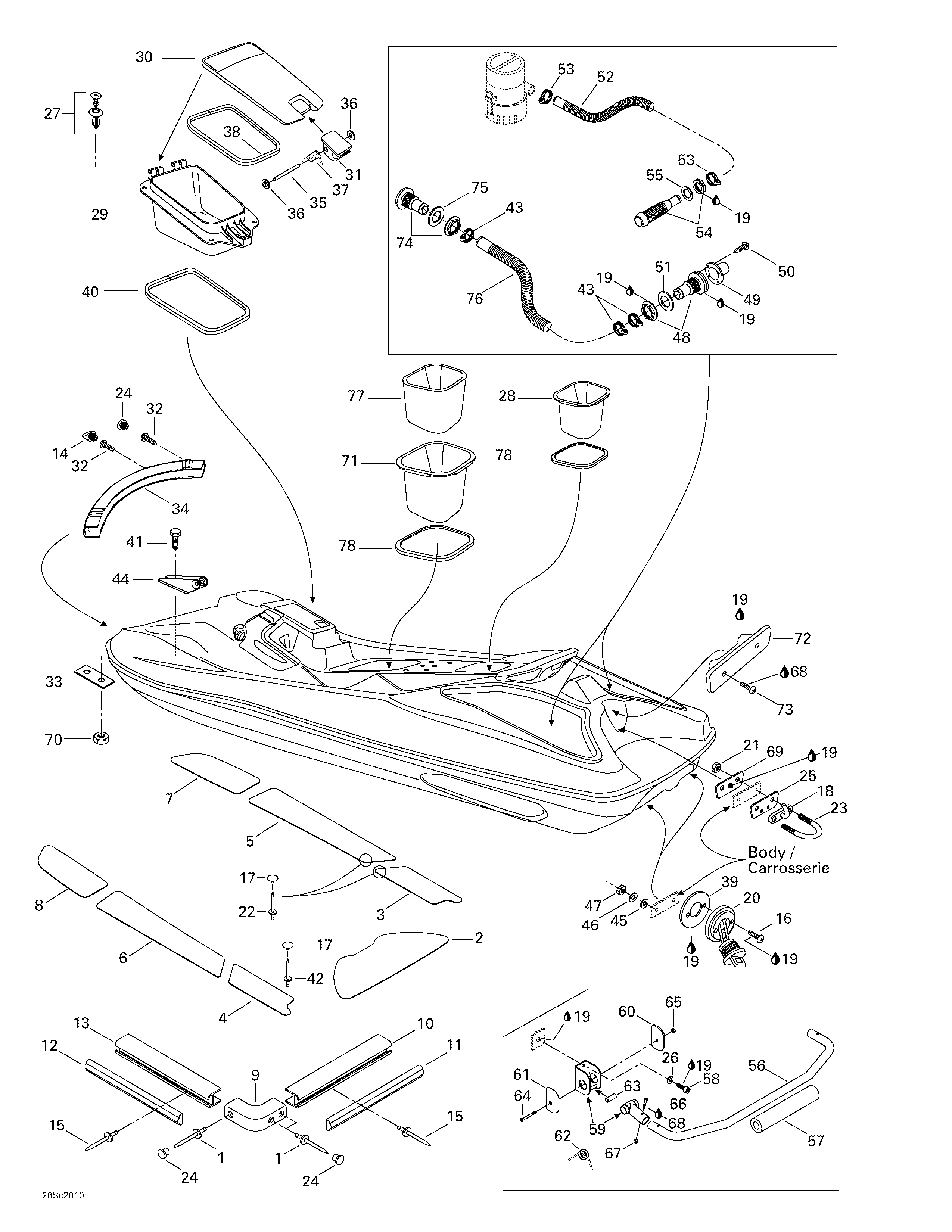

09- Body для BRP LRV, 5688 - 2000
-
№АртикулНазвание
-
1293150013 Pop Rivet 3/16Pop Rivet 3/16
-
2204070526 Rear CarpetRear Carpet
-
3204070529 R.H. Rear Carpet StarboardR.H. Rear Carpet Starboard
-
4204070530 LH Rear Carpet Port SideLH Rear Carpet Port Side
-
5204070527 R.H. Carpet StarboardR.H. Carpet Starboard
-
6204070528 LH Carpet Port SideLH Carpet Port Side
-
7204070531 R.H. Front Carpet StarboardR.H. Front Carpet Starboard
-
8204070532 LH Front Carpet Port SideLH Front Carpet Port Side
-
9291001304 Bumper Corner (Black)Bumper Corner (Black)
-
10204050278 Rear Bumper (Black)Rear Bumper (Black)
-
11204050279 Rear Bumper Trim (Black)Rear Bumper Trim (Black)
-
12204050271 Side Bumper Trim (Black)Side Bumper Trim (Black)
-
13204050270 Side Bumper (Black)Side Bumper (Black)
-
14291001040 Bumper Plug (Black)Bumper Plug (Black)
-
15293150005 Pop Rivet 3/16Pop Rivet 3/16
-
16205042560 Screw Socket M4 x 25Screw Socket M4 x 25
-
17293000014 Cap (Black)Cap (Black)
-
18291001232 HookHook
-
19296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
20292000187 Drain PlugDrain Plug
-
21232581600 Elastic Stop Nut M8Elastic Stop Nut M8
-
22293150016 Pop Rivet 1/8Pop Rivet 1/8
-
23292000011 > Clamp> Clamp
-
24291000339 Bumper Plug (Black)Bumper Plug (Black)
-
25291000768 Finition Plate (Black)Finition Plate (Black)
-
26234062600 Washer 6 mmWasher 6 mm
-
27211000088 Lock ScrewLock Screw
-
28204620178 Rear TrayRear Tray
-
29269500439 Box GlovesBox Gloves
-
30269500440 Door-Box GlovesDoor-Box Gloves
-
31269500441 LatchLatch
-
32211000037 Screw 10-14 x 7/8Screw 10-14 x 7/8
-
33291000079 Plate ReinforcementPlate Reinforcement
-
34291001035 Nose Bumper (Black)Nose Bumper (Black)
-
35211400008 PinPin
-
36211100002 Nut PushNut Push
-
37291000922 Spring LatchSpring Latch
-
38293250060 GasketGasket
-
39293250030 GasketGasket
-
40293250061 GasketGasket
-
41207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
42293150036 Pop Rivet 1/8Pop Rivet 1/8
-
43293650074 Clamp NormaClamp Norma
-
44291000855 Shock Support (Strorage Cover)Shock Support (Strorage Cover)
-
45234040600 Flat Washer 4 mmFlat Washer 4 mm
-
46234141601 Lock Washer 4 mmLock Washer 4 mm
-
47232041600 Hex. Nut M4Hex. Nut M4
-
48204060071 Thru-Hull FittingThru-Hull Fitting
-
49204060188 Scupper ValveScupper Valve
-
50211000180 Screw Plastite PhillipsScrew Plastite Phillips
-
51293250039 GasketGasket
-
52204050299 Hose Bilgeflex 3/4''Hose Bilgeflex 3/4''
-
53293650016 Clamp TridonClamp Tridon
-
54293710015 Fitting PerkoFitting Perko
-
55293250006 GasketGasket
-
56292000590 Stair Tube. Includes 56 - 57.Stair Tube. Includes 56 - 57.
-
57292000593 Protection SleeveProtection Sleeve
-
58205562560 Socket Head Screw M6 x 25 (Scotch Grip)Socket Head Screw M6 x 25 (Scotch Grip)
-
59292000539 Stair Support Ass'yStair Support Ass'y
-
60292000540 Support Cap R.HSupport Cap R.H
-
61292000548 Support Cap L.HSupport Cap L.H
-
62292000541 Recall SpringRecall Spring
-
64211000186 Phillips ScrewPhillips Screw
-
65211100061 Locking NutLocking Nut
-
66205063560 Socket Screw M6 x 35Socket Screw M6 x 35
-
67232361600 Domed Nut Hex. M6Domed Nut Hex. M6
-
68293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
69291000307 Retainer PlateRetainer Plate
-
70232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
71204620179 Storage TrayStorage Tray
-
72204070194 Handle Grip (Black)Handle Grip (Black)
-
73205364060 Socket Screw M6 x 40Socket Screw M6 x 40
-
74293710060 Fitting PerkoFitting Perko
-
75293250039 GasketGasket
-
76204070560 Hose Bilgeflex 1 1/2''Hose Bilgeflex 1 1/2''
-
77204630008 Icebox FoamIcebox Foam
-
78293200032 Seal TraySeal Tray
