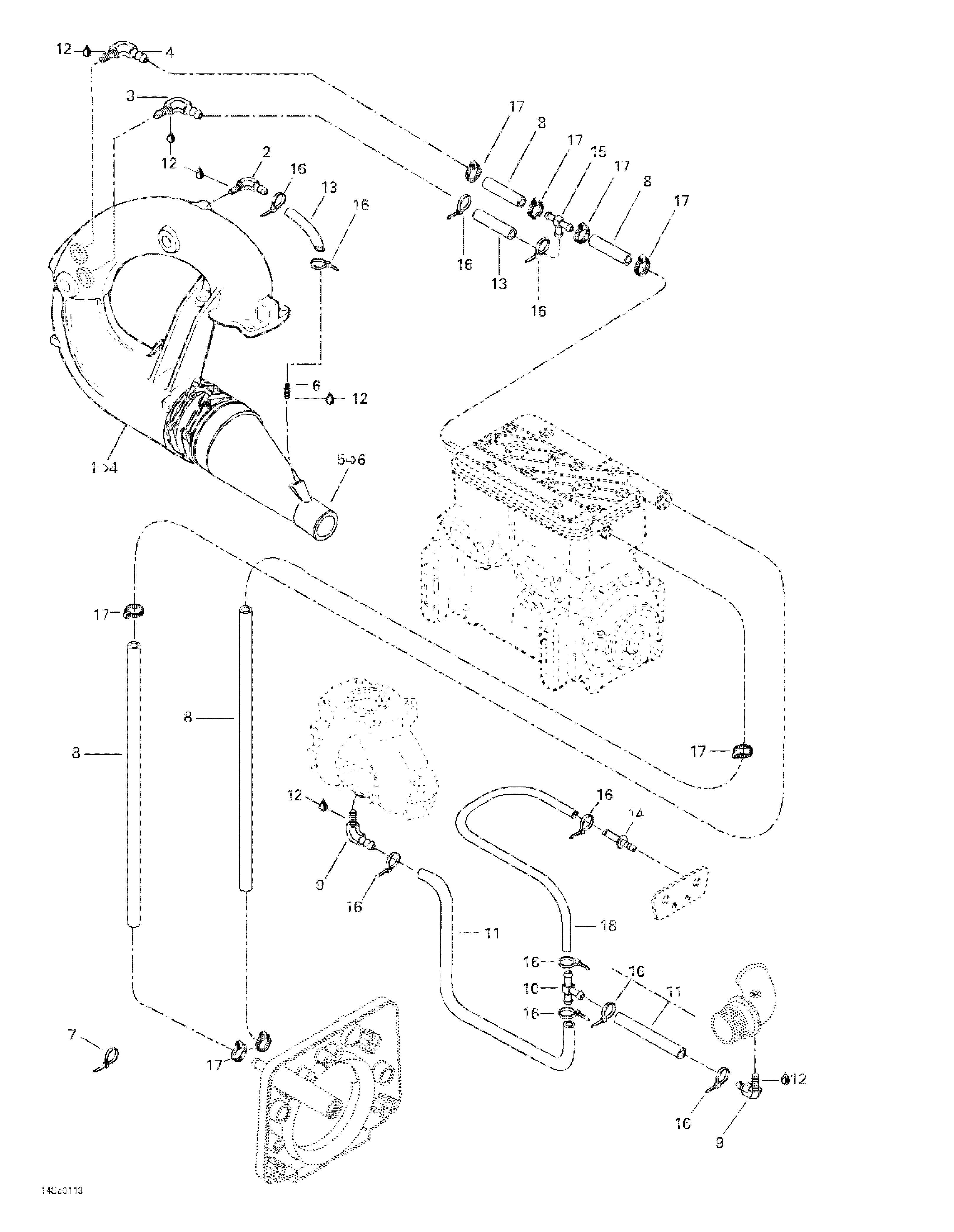

01- Cooling System для BRP GS, 5548 - 2001
-
№АртикулНазвание
-
1274000770 Tuned Pipe Ass'y. Includes 1 - 4.Tuned Pipe Ass'y. Includes 1 - 4.
-
2293710018 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
3293710048 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
4293700023 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
5274000488 Exhaust Cone Ass'y. Includes 5 - 6.Exhaust Cone Ass'y. Includes 5 - 6.
-
6293710037 Male ConnectorMale Connector
-
7293750008 Tie Rap 350 mmTie Rap 350 mm
-
8276000001 Hose 12.5 mm (Meter)Hose 12.5 mm (Meter)
-
9293700016 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
10293710042 > Fitting> Fitting
-
11275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
12293800013 Loctite56765,PipeSealant,250mlLoctite56765,PipeSealant,250ml
-
13276000048 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
14291000306 Bleed FittingBleed Fitting
-
15293710052 > Fitting> Fitting
-
16293750001 Tie Rap 94 mmTie Rap 94 mm
-
17293650037 Tridon ClampTridon Clamp
-
18276000048 Hose 6 mm (Meter)Hose 6 mm (Meter)
