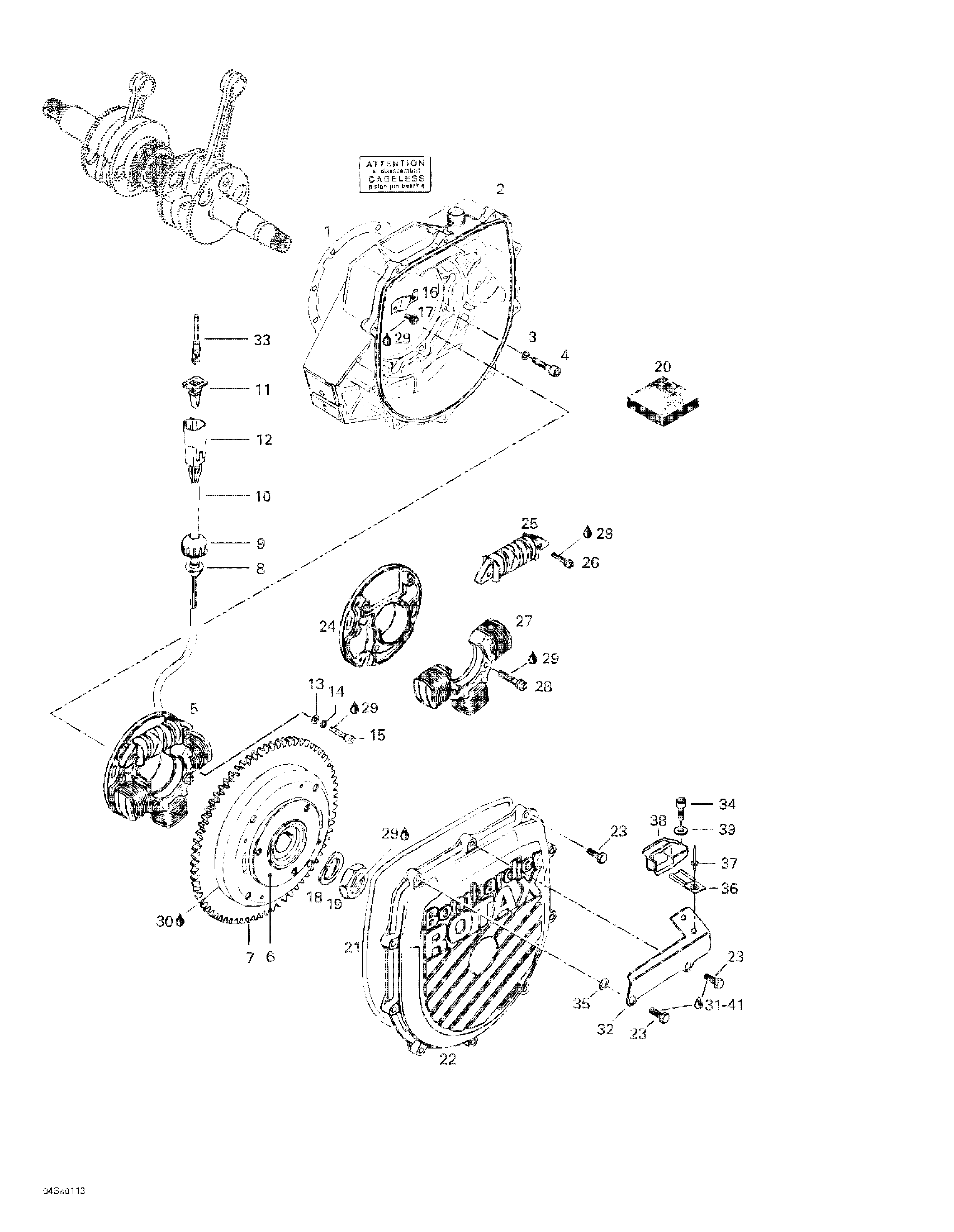

03- Magneto для BRP GS, 5548 - 2001
-
№АртикулНазвание
-
1290850605 GasketGasket
-
2290810852 Ignition Housing (Silver)Ignition Housing (Silver)
-
3420945751 Lock Washer 6 mmLock Washer 6 mm
-
4205062544 Allen Screw M6 x 25Allen Screw M6 x 25
-
5290886725 Armature Plate Ass'yArmature Plate Ass'y
-
6290995119 Magneto Flywheel Ass'y. Includes 6 - 7.Magneto Flywheel Ass'y. Includes 6 - 7.
-
6290995118 Magneto FlywheelMagneto Flywheel
-
7290834060 Starter Gear 77 TeethStarter Gear 77 Teeth
-
8293720034 GrommetGrommet
-
9278000100 CapCap
-
10290260931 Tubing Isolation (75 mm)Tubing Isolation (75 mm)
-
11278000636 (Female) Secondary Lock (4 Circuits) (Deutsch)(Female) Secondary Lock (4 Circuits) (Deutsch)
-
12278000635 Housing Tab Female 4 CircuitsHousing Tab Female 4 Circuits
-
13420827800 WasherWasher
-
14420945750 Lock Washer 5 mmLock Washer 5 mm
-
15420840515 Allen Screw M5 x 18Allen Screw M5 x 18
-
16290853080 Retainer PlateRetainer Plate
-
17207150844 Hex. Screw M5 x 8Hex. Screw M5 x 8
-
18420945759 Lock Washer 22 mmLock Washer 22 mm
-
19420842230 Hex. Nut M22Hex. Nut M22
-
20290860680 Protection MatProtection Mat
-
21290831555 O-RingO-Ring
-
22290810147 Ignition CoverIgnition Cover
-
23290841543 Self Tapping Screw M6 x 25Self Tapping Screw M6 x 25
-
24290886725 Armature PlateArmature Plate
-
25410915200 Generating CoilGenerating Coil
-
26420940810 Combined Screw M5 x 22Combined Screw M5 x 22
-
27410916200 Lighting CoilLighting Coil
-
28410913900 Screw With WasherScrew With Washer
-
29293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
30413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
31293800023 Loctite 767, Antiseize Lubricant, 454 gLoctite 767, Antiseize Lubricant, 454 g
-
32278001064 Ground PlateGround Plate
-
33278000631 Terminal MaleTerminal Male
-
34205061660 Allen Screw M6 x 16Allen Screw M6 x 16
-
35234461608 Washer Star 6 mmWasher Star 6 mm
-
36270000141 ClipClip
-
37204000081 Pop Rivet 3/16Pop Rivet 3/16
-
38270000158 AdaptorAdaptor
-
39234061600 Flat Washer 6 mmFlat Washer 6 mm
-
40290886317 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
41293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
