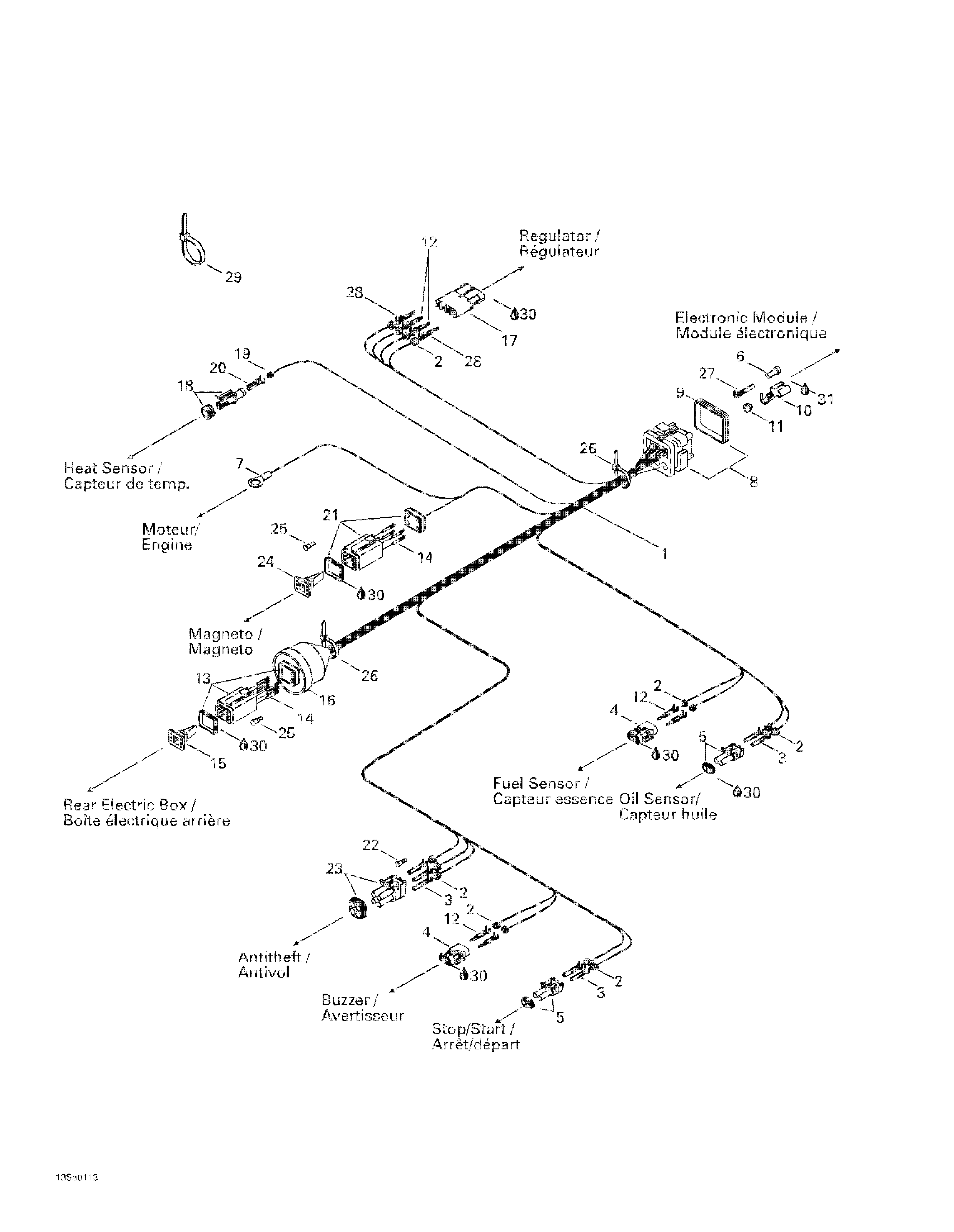

10- Electrical Harness для BRP GS, 5548 - 2001
-
№АртикулНазвание
-
1278000908 Main Harness Ass'y. Includes 1 - 28.Main Harness Ass'y. Includes 1 - 28.
-
2278000218 WireSeal(16-18Gauge)(Green)(Packard)WireSeal(16-18Gauge)(Green)(Packard)
-
3278000223 Female Terminal (18 Gauge)(Packard)Female Terminal (18 Gauge)(Packard)
-
4278000217 Female Housing (2 Circuits)(Packard)Female Housing (2 Circuits)(Packard)
-
5278000220 Male Housing (2 Circuits)(Packard)Male Housing (2 Circuits)(Packard)
-
6293000070 Sealing Cap (AMP)Sealing Cap (AMP)
-
7278001165 Open BarrelOpen Barrel
-
8278000993 Male Housing (26 Circuits) (AMP). Includes 8 - 9.Male Housing (26 Circuits) (AMP). Includes 8 - 9.
-
9278001307 Wire SealWire Seal
-
10278000994 Female Terminal(AMP)Female Terminal(AMP)
-
11278000996 Wire Seal(AMP)Wire Seal(AMP)
-
12278000222 Male Terminal (18 Gauge)(Packard)Male Terminal (18 Gauge)(Packard)
-
13278000736 Male Housing (6 Circuits)(Deutsch)Male Housing (6 Circuits)(Deutsch)
-
14278000632 FemaleTerminal(16-18Gauge)(Deutsch)FemaleTerminal(16-18Gauge)(Deutsch)
-
15278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
16570150700 Switch BootSwitch Boot
-
17278000394 Female Housing (4 Circuits)(Packard)Female Housing (4 Circuits)(Packard)
-
18278001012 Male Housing (1 Circuit )(AMP)Male Housing (1 Circuit )(AMP)
-
19278001013 Wire Seal(AMP)Wire Seal(AMP)
-
20278001014 Female Terminal(AMP)Female Terminal(AMP)
-
21278000739 Male Housing (4 Circuits)(Deutsch)Male Housing (4 Circuits)(Deutsch)
-
22278000216 Wire Seal (Cap)(Packard)Wire Seal (Cap)(Packard)
-
23278000891 Male Housing (4 Circuits)(Packard)Male Housing (4 Circuits)(Packard)
-
24278000738 (Male) Secondary Lock (4 Circuits)(Deutsch)(Male) Secondary Lock (4 Circuits)(Deutsch)
-
25293000052 Sealing Cap (Deutsch)Sealing Cap (Deutsch)
-
26293750002 Tie Rap 130 mmTie Rap 130 mm
-
27278000995 Female Terminal(AMP)Female Terminal(AMP)
-
28409004300 Male Terminal 16 GA.(Packard)Male Terminal 16 GA.(Packard)
-
29293750001 Tie Rap 94 mmTie Rap 94 mm
-
293750002 Tie Rap 130 mmTie Rap 130 mm
-
293750009 Tie Rap 155 mmTie Rap 155 mm
-
414115200 Tie RapTie Rap
-
293750008 Tie Rap 350 mmTie Rap 350 mm
-
30293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
31293550015 Deoxit Lubricant, SprayDeoxit Lubricant, Spray
