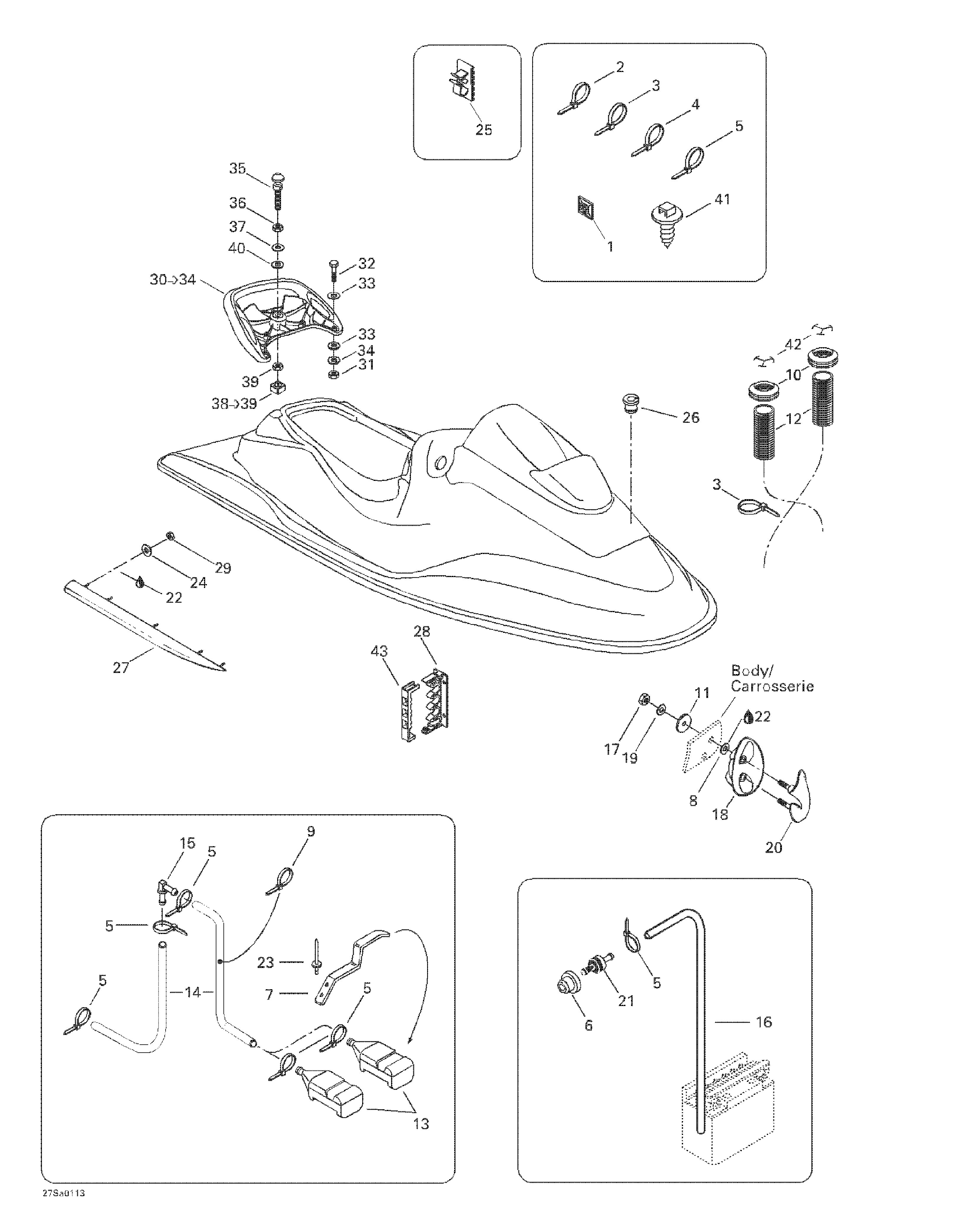

09- Body, Front View для BRP GS, 5548 - 2001
-
№АртикулНазвание
-
1293750015 Tie Rap MountTie Rap Mount
-
2414115200 Tie RapTie Rap
-
3293750008 Tie Rap 350 mmTie Rap 350 mm
-
4293750002 Tie Rap 130 mmTie Rap 130 mm
-
5293750001 Tie Rap 94 mmTie Rap 94 mm
-
6293720029 GrommetGrommet
-
7292000398 L.H. Spring ClipL.H. Spring Clip
-
8234081600 Flat Washer 8 mmFlat Washer 8 mm
-
9414115200 Tie RapTie Rap
-
10293720036 GrommetGrommet
-
11293830037 Rubber WasherRubber Washer
-
12291000870 Vent TubeVent Tube
-
13292000688 Screen BailerScreen Bailer
-
14275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
15293710057 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
16275500446 Hose Vent 6 mmHose Vent 6 mm
-
17232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
18292000511 Shell (White)Shell (White)
-
19250200011 Washer 8 mmWasher 8 mm
-
20292000510 Eye-Bow (White)Eye-Bow (White)
-
21275500167 Check ValveCheck Valve
-
22296000309 SiliconeSealant,AdchemClear4511SiliconeSealant,AdchemClear4511
-
23293150037 Rivet Avdel 3/16Rivet Avdel 3/16
-
24234062600 Washer 6 mmWasher 6 mm
-
25293750005 Tie-ClampTie-Clamp
-
26293720017 GrommetGrommet
-
27292000494 R.H. SponsonR.H. Sponson
-
292000495 L.H. SponsonL.H. Sponson
-
28293750013 Tie MountTie Mount
-
29232561600 Elastic Hex. Stop Nut M6Elastic Hex. Stop Nut M6
-
30295500369 Grab Handle Kit (Black). Includes 30 - 34.Grab Handle Kit (Black). Includes 30 - 34.
-
31232061600 Elastic Stop Nut M6Elastic Stop Nut M6
-
32207064060 Hex. Screw M6 x 40Hex. Screw M6 x 40
-
33234062600 Washer 6 mmWasher 6 mm
-
34234161601 Washer Lock 6 mmWasher Lock 6 mm
-
35291000691 Latch StudLatch Stud
-
36232100600 Nut M10Nut M10
-
37234002600 Washer 10 mmWasher 10 mm
-
38271000598 Nut Housing. Includes 38 - 39.Nut Housing. Includes 38 - 39.
-
39232501600 Elastic Stop Nut M10Elastic Stop Nut M10
-
40291000628 Rubber WasherRubber Washer
-
41293730018 DartDart
-
42291001098 RestrictorRestrictor
-
43293750012 Tie Mount TopTie Mount Top
