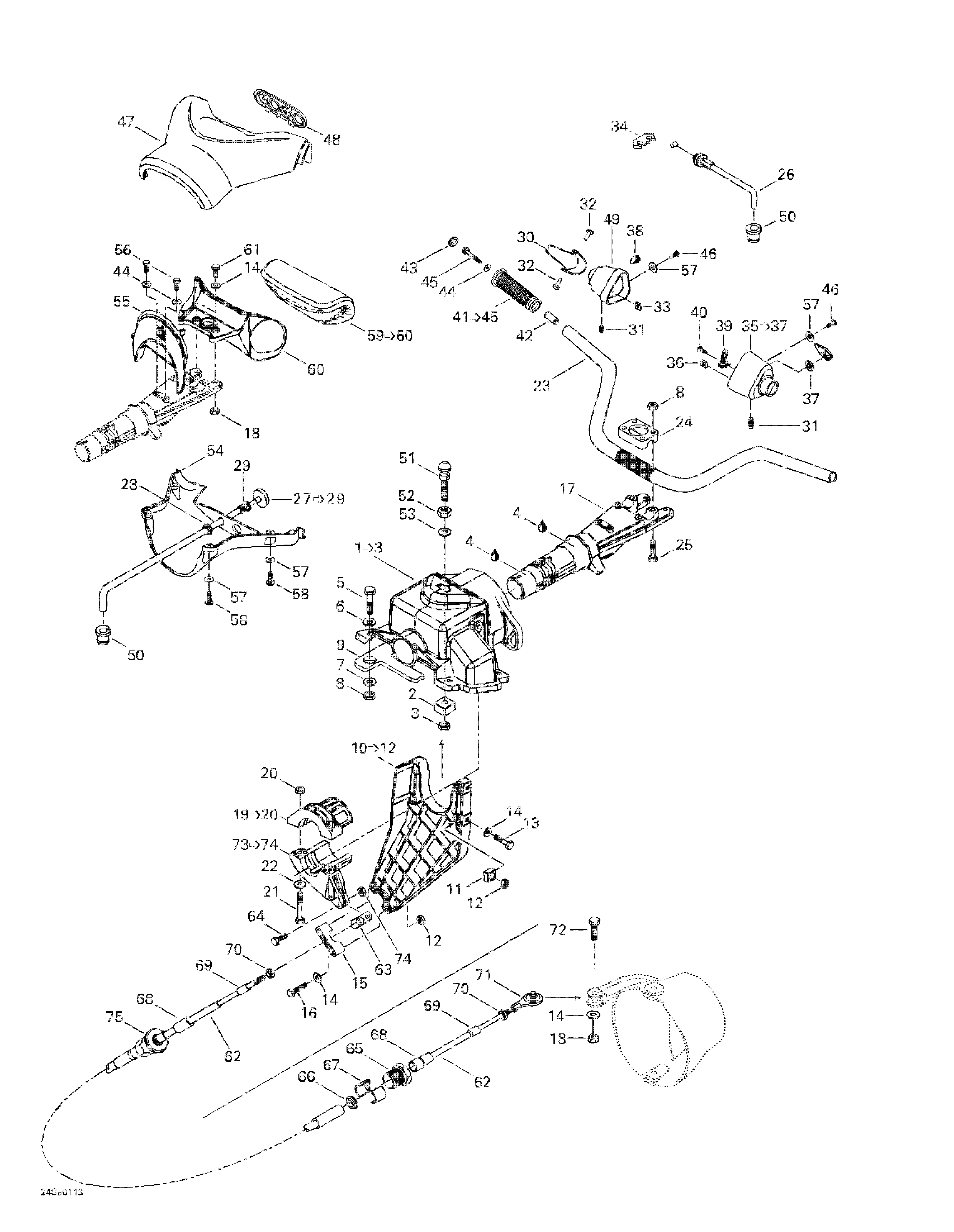

07- Steering System для BRP GS, 5548 - 2001
-
№АртикулНазвание
-
1277000645 Steering Support. Includes 1 - 3.Steering Support. Includes 1 - 3.
-
2271000598 Nut Housing. Includes 2 - 3.Nut Housing. Includes 2 - 3.
-
3232501600 Nut M10Nut M10
-
4293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
5207083560 Hex. Screw M8 x 35Hex. Screw M8 x 35
-
6234081600 Flat Washer 8 mmFlat Washer 8 mm
-
7234082600 Flat Washer 8 mmFlat Washer 8 mm
-
8232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
9293250069 GasketGasket
-
10277000516 Cable Support. Includes 10 - 12.Cable Support. Includes 10 - 12.
-
11269500252 Nut Housing. Includes 11 - 12.Nut Housing. Includes 11 - 12.
-
12232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
13207162060 Hex. Screw M6Hex. Screw M6
-
14234061600 Flat Washer 6 mmFlat Washer 6 mm
-
15277000162 Thrust SupportThrust Support
-
16207065060 Hex. Screw M6 x 50Hex. Screw M6 x 50
-
17277000562400 Steering StemSteering Stem
-
18232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
19277000519 Thrust Arm. Includes 19 - 20.Thrust Arm. Includes 19 - 20.
-
20232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
21207162560 Hex. Screw M6 x 25Hex. Screw M6 x 25
-
22234062600 Flat Washer 6 mmFlat Washer 6 mm
-
23277000824 Handle barHandle bar
-
24277000142 Steering ClampSteering Clamp
-
25207085060 Hex. Screw M8 x 50Hex. Screw M8 x 50
-
26277000727 Throttle CableThrottle Cable
-
27270000728 Choke Cable. Includes 27 - 29.Choke Cable. Includes 27 - 29.
-
28211100030 Hex. NutHex. Nut
-
30277000214 Throttle HandleThrottle Handle
-
31250000036 Set Screw M6 x 16Set Screw M6 x 16
-
32277000381 PinPin
-
33232860600 Square Nut M6Square Nut M6
-
34277000279 Lock TabLock Tab
-
35277000869 L.H. Handle Housing. Includes 35 - 37.L.H. Handle Housing. Includes 35 - 37.
-
36232860600 Square Nut M6Square Nut M6
-
37277000306 Knor SwitchKnor Switch
-
38293450153 Insert (Nylon)Insert (Nylon)
-
39277000845 Retainer PlateRetainer Plate
-
40209631360 Tapping ScrewTapping Screw
-
41295500691 Handle Grip Kit (Black). Includes 41 - 45.Handle Grip Kit (Black). Includes 41 - 45.
-
43277000203 Grip Cap (Black)Grip Cap (Black)
-
44234062600 Flat Washer 6 mmFlat Washer 6 mm
-
45250000002 Hex. Screw M6 x 30 Scotch GripHex. Screw M6 x 30 Scotch Grip
-
46209630960 Tapping ScrewTapping Screw
-
47277000815 Upper Steering CoverUpper Steering Cover
-
48277000823 Steering Cover PlateSteering Cover Plate
-
49277000872 Throttle Handle HousingThrottle Handle Housing
-
50293720046 GrommetGrommet
-
51291000689 Latch StudLatch Stud
-
52232100600 Hex. Jam Nut M10Hex. Jam Nut M10
-
53234002600 Flat Washer 10 mmFlat Washer 10 mm
-
54277000816 Lower Steering CoverLower Steering Cover
-
55277000549 PlatePlate
-
56211000036 Tapping ScrewTapping Screw
-
57234051600 Flat Washer 5 mmFlat Washer 5 mm
-
58241141660 Screw K40 x 16Screw K40 x 16
-
59277000812 Pad-Handle. Includes 59 - 60.Pad-Handle. Includes 59 - 60.
-
60277000687 Pad SupportPad Support
-
61207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
62271000436 Steering CableSteering Cable
-
63277000646 JointJoint
-
64211000081 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
65277000052 Cable LockCable Lock
-
66211100009 Rubber WasherRubber Washer
-
67277000055 Half RingHalf Ring
-
68277000473 Large BootLarge Boot
-
69277000466 Small BootSmall Boot
-
70212100005 Nut 10-32 (Stainless)Nut 10-32 (Stainless)
-
71277000153 Ball JointBall Joint
-
72207063060 Hex. Screw M6 x 30Hex. Screw M6 x 30
-
73277000518 Steering Stem Arm. Includes 73 - 74.Steering Stem Arm. Includes 73 - 74.
-
74232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
75277000167 Knob AdjusterKnob Adjuster
