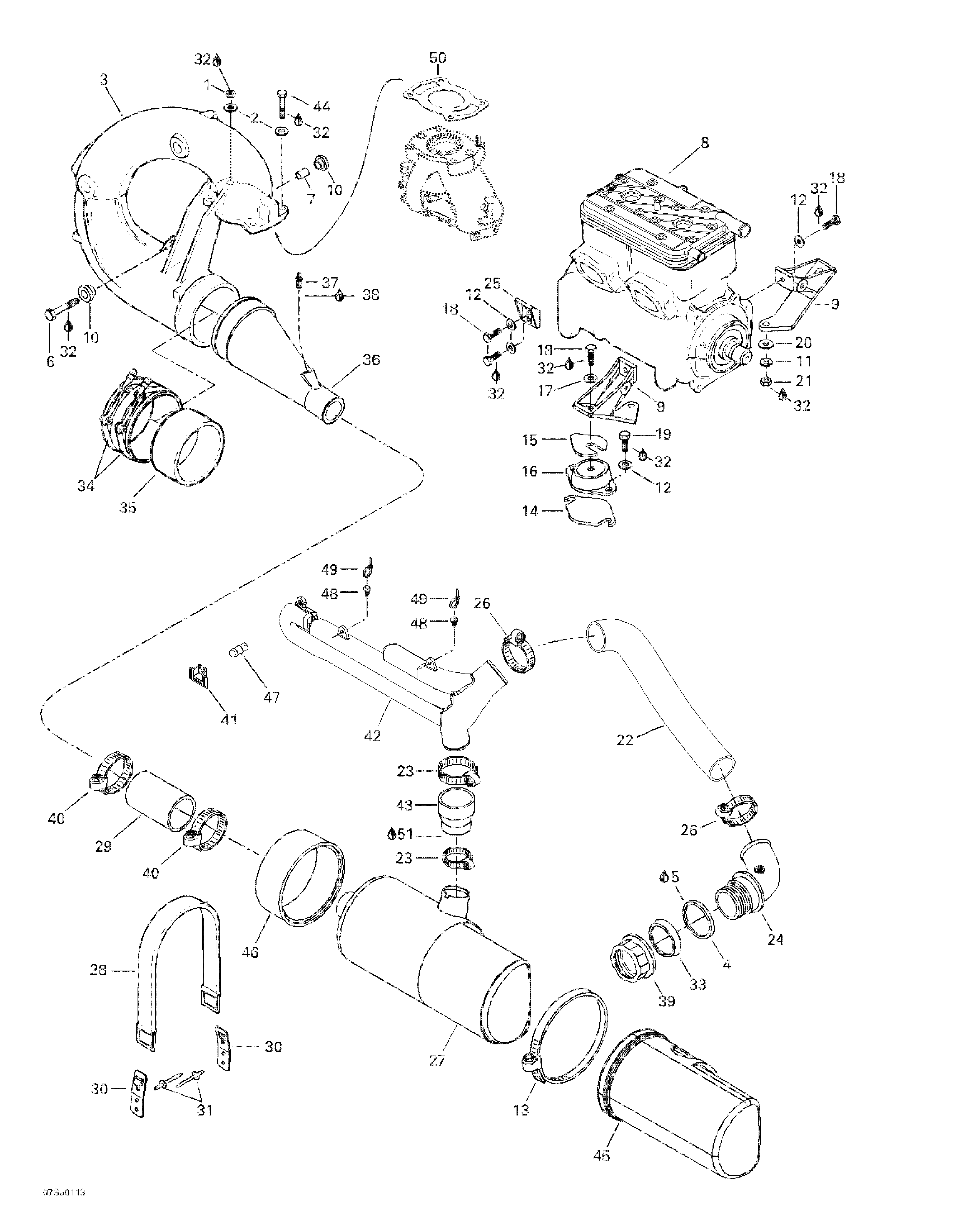

01- Engine Support And Muffler для BRP GS, 5548 - 2001
-
№АртикулНазвание
-
1232081600 Hexagonal Nut M8Hexagonal Nut M8
-
2293050001 Washer 8 mmWasher 8 mm
-
3274000770 Tuned Pipe Ass'yTuned Pipe Ass'y
-
4293250041 GasketGasket
-
5296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
6207084060 Hexagonal Screw M8 x 40Hexagonal Screw M8 x 40
-
7274000114 BushingBushing
-
8270000350 Rotax Eng. 717 Single Carb. (Silver)Rotax Eng. 717 Single Carb. (Silver)
-
9270000180 R.H. Engine SupportR.H. Engine Support
-
270000181 L.H. Engine SupportL.H. Engine Support
-
10293830031 Rubber BushingRubber Bushing
-
11234101601 Lock Washer 10 mmLock Washer 10 mm
-
12234081600 Flat Washer 8 mmFlat Washer 8 mm
-
13293750020 Tie Rap 838 mmTie Rap 838 mm
-
14270000006 Shim 0.30 mmShim 0.30 mm
-
270000007 Shim 1.30 mmShim 1.30 mm
-
15270000024 Shim 0.30 mmShim 0.30 mm
-
270000025 Shim 1.30 mmShim 1.30 mm
-
16270000425 Rubber MountRubber Mount
-
17234082600 Flat Washer 8 mmFlat Washer 8 mm
-
18207182560 Hexagonal Screw M8 x 25Hexagonal Screw M8 x 25
-
19207183060 Hexagonal Screw M8 x 30Hexagonal Screw M8 x 30
-
20234001600 Washer 10 mmWasher 10 mm
-
21232001600 Elastic Stop Nut M10Elastic Stop Nut M10
-
22274000757 Exhaust HoseExhaust Hose
-
23293650023 Tridon ClampTridon Clamp
-
24274000542 Exhaust OutletExhaust Outlet
-
25270000179 Front Engine SupportFront Engine Support
-
26293650064 Tridon ClampTridon Clamp
-
27274000533 MufflerMuffler
-
28293850021 Muffler StrapMuffler Strap
-
29274000032 Exhaust HoseExhaust Hose
-
30293850024 Strap Clip (Muffler)Strap Clip (Muffler)
-
31293150037 Rivet Avdel 3/16Rivet Avdel 3/16
-
32293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
33274000225 Stabiliser WasherStabiliser Washer
-
34293650068 Clamp (Norma)Clamp (Norma)
-
35274000074 Rubber StripRubber Strip
-
36274000488 Exhaust Cone. Includes 36 - 37.Exhaust Cone. Includes 36 - 37.
-
37293710037 Male ConnectorMale Connector
-
38293800013 Loctite 56765, Pipe Sealant, 250 mlLoctite 56765, Pipe Sealant, 250 ml
-
39274000224 Nut M72Nut M72
-
40293650023 Tridon ClampTridon Clamp
-
41291001352 Resonator TieResonator Tie
-
42274000683 Upper ResonatorUpper Resonator
-
43274000758 Hose ExhaustHose Exhaust
-
44207383060 HexagonalScrewM8x30(ScotchGrip)HexagonalScrewM8x30(ScotchGrip)
-
45274000806 Rear Cover MufflerRear Cover Muffler
-
46274000803 Front Cover MufflerFront Cover Muffler
-
47293830062 Pad RubberPad Rubber
-
48293730018 Dart MountDart Mount
-
49293750002 Tie Rap 130 mmTie Rap 130 mm
-
50290950253 GasketGasket
-
51413710300 Sealant, Loctite 17914, 80 mlSealant, Loctite 17914, 80 ml
