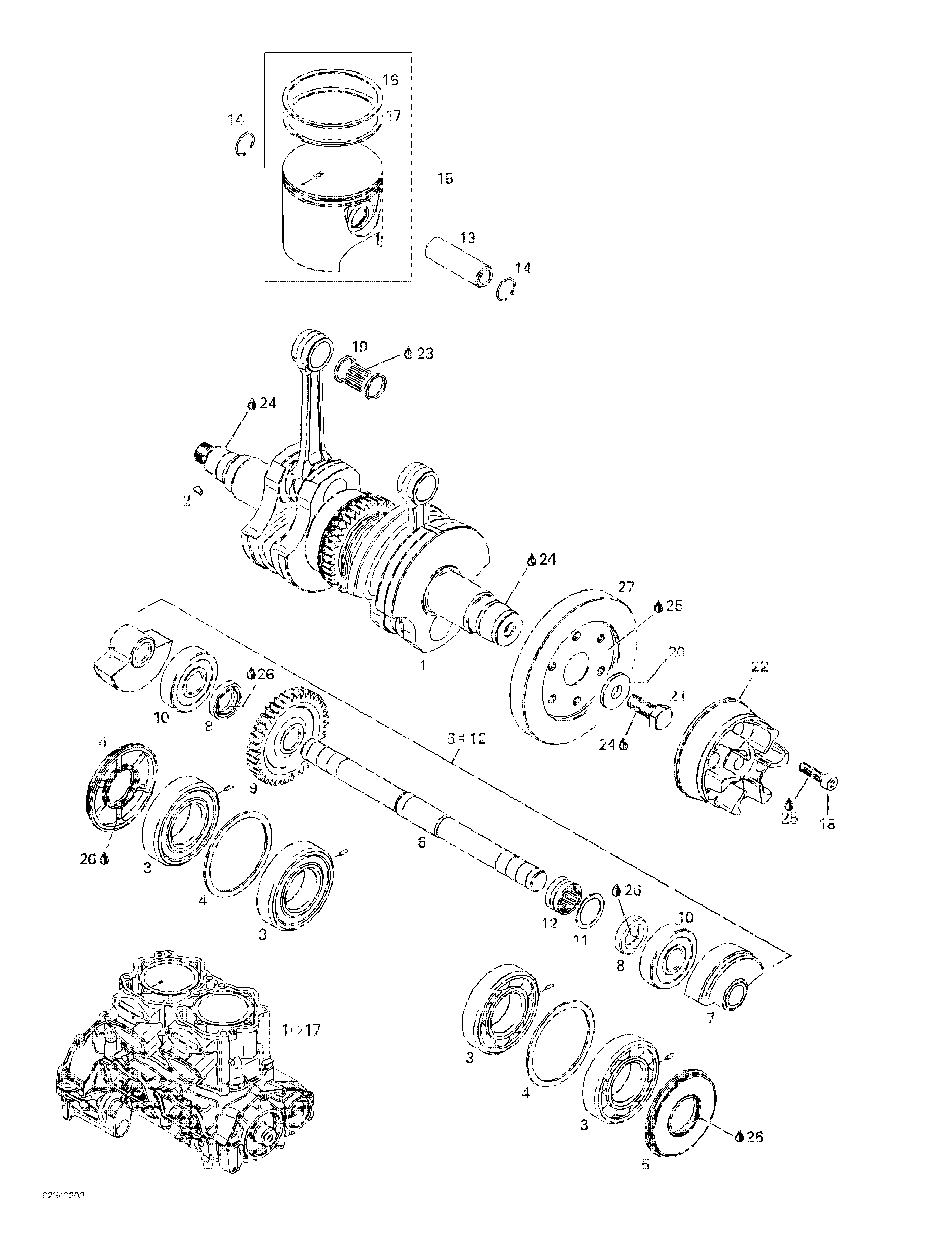

01- Crankshaft And Pistons для BRP XP, 5577/5578 - 2002
-
№АртикулНазвание
-
1290094703 Short Block Ass'y. Includes 1 - 17.Short Block Ass'y. Includes 1 - 17.
-
1290887762 Crankshaft Ass'y. Includes 1 - 5.Crankshaft Ass'y. Includes 1 - 5.
-
2420246055 Woodruff KeyWoodruff Key
-
3420432271 Ball Bearing 6208 Ass'yBall Bearing 6208 Ass'y
-
4420926190 WasherWasher
-
5290931731 Oil SealOil Seal
-
6290837387 Shaft Balance Ass'y. Includes 6 - 12.Shaft Balance Ass'y. Includes 6 - 12.
-
10290932098 Ball Bearing 6304Ball Bearing 6304
-
11420927192 WasherWasher
-
12290232555 Needle BearingNeedle Bearing
-
13290916398 Piston PinPiston Pin
-
14290845465 CirclipCirclip
-
15290888577 Piston with 2 Rings, 87.89 mm. Includes 15 - 17.Piston with 2 Rings, 87.89 mm. Includes 15 - 17.
-
290888578 Piston Oversize, 2 Rings, 88.14 mmPiston Oversize, 2 Rings, 88.14 mm
-
16290815195 Semi-Trapez Ring 88.81 mmSemi-Trapez Ring 88.81 mm
-
290815176 Semi-Trapez Ring 88.25 mmSemi-Trapez Ring 88.25 mm
-
17290815192 Semi-Trapez Ring 88.81 mmSemi-Trapez Ring 88.81 mm
-
290815193 Semi-Trapez Ring 88.25 mmSemi-Trapez Ring 88.25 mm
-
18205083060 Socket Head Screw M8 x 30Socket Head Screw M8 x 30
-
19290832552 Needle BearingNeedle Bearing
-
20290827782 WasherWasher
-
21290640120 Hex. Screw M12 x 30Hex. Screw M12 x 30
-
22290958137 Coupling Flange Ass'yCoupling Flange Ass'y
-
23413802900 Injection Oil (12x1L)Injection Oil (12x1L)
-
24293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
25413711400 Loctite 648, 10 mlLoctite 648, 10 ml
-
26413707000 Molykote 111Molykote 111
-
27290958082 CouplingCoupling
-
28290889150 Engine Gasket Set (Not Shown)Engine Gasket Set (Not Shown)
-
29290889155 Cylinder Gasket Set (Not Shown)Cylinder Gasket Set (Not Shown)
