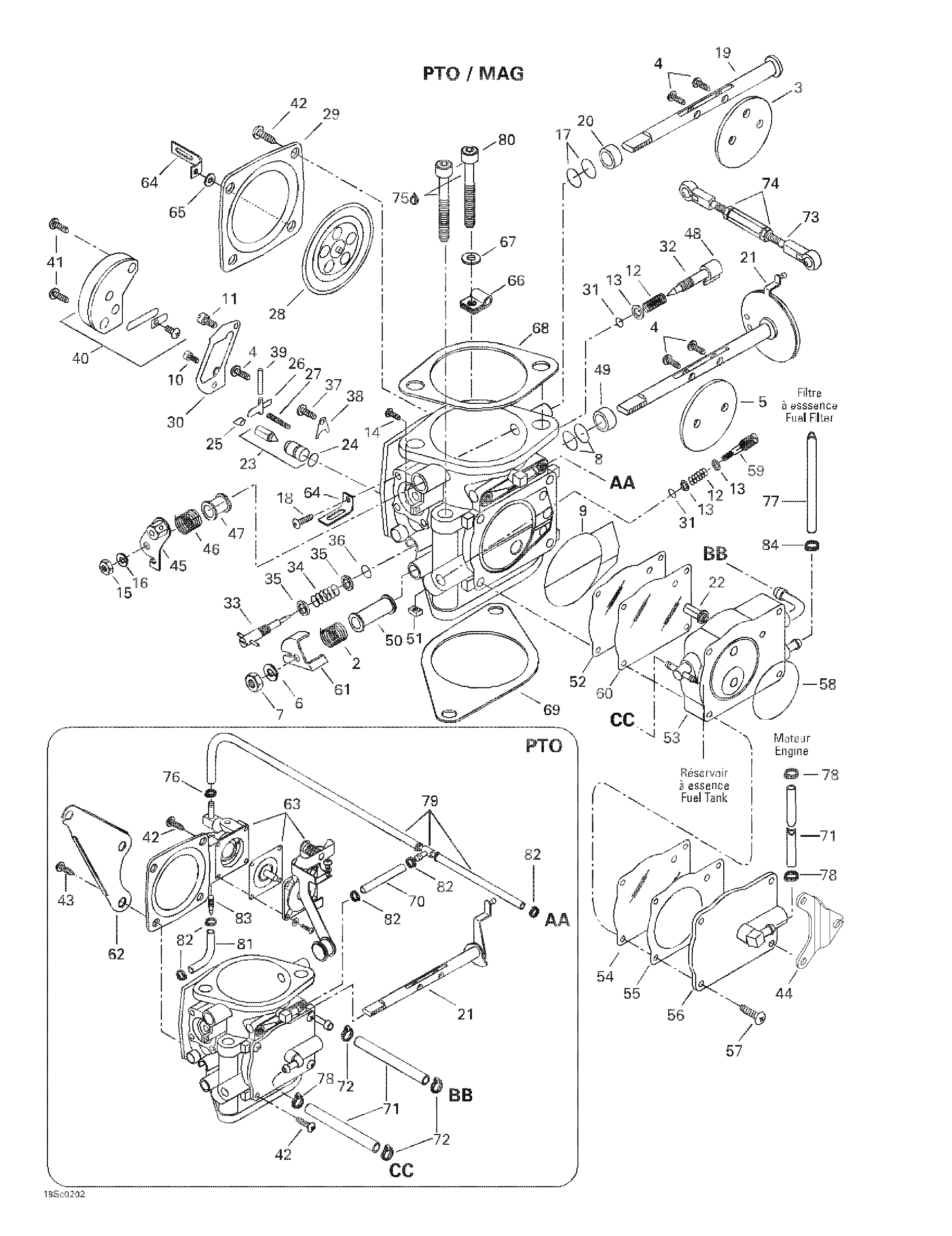

02- Carburetors для BRP XP, 5577/5578 - 2002
-
№АртикулНазвание
-
1270500417 Carburetor BN46I-42-12 (PTO Side). Includes 1 - 66. PTO 5577/5578.Carburetor BN46I-42-12 (PTO Side). Includes 1 - 66. PTO 5577/5578.
-
270500790 Carburetor BN46I-42-14 (MAG Side). MAG 5577/5578.Carburetor BN46I-42-14 (MAG Side). MAG 5577/5578.
-
2270500413 Spring. PTO 5577/5578.Spring. PTO 5577/5578.
-
270500379 Spring. MAG 5577/5578.Spring. MAG 5577/5578.
-
4270500156 ScrewScrew
-
6270500011 Spring WasherSpring Washer
-
7270500376 NutNut
-
8270500222 Sealing RingSealing Ring
-
9270500370 O-RingO-Ring
-
10270500427 Pilot Jet 75.0Pilot Jet 75.0
-
11270500371 Main Jet 162.5Main Jet 162.5
-
12270500091 SpringSpring
-
13270500136 WasherWasher
-
14270500228 ScrewScrew
-
15270500229 NutNut
-
16270500230 Spring WasherSpring Washer
-
17270500234 Sealing RingSealing Ring
-
18270500358 Screw. MAG 5577/5578.Screw. MAG 5577/5578.
-
20270500239 RingRing
-
22270500115 Fuel FilterFuel Filter
-
23270500208 Needle Valve 2.0Needle Valve 2.0
-
24270500127 O-RingO-Ring
-
25270500129 ClipClip
-
26270500128 Needle Valve LeverNeedle Valve Lever
-
27270500313 SpringSpring
-
28270500132 Diaphragm Ass'yDiaphragm Ass'y
-
29270500133 Cover. MAG 5577/5578.Cover. MAG 5577/5578.
-
30270500131 GasketGasket
-
31270500144 O-RingO-Ring
-
32270500113 Adjuster ScrewAdjuster Screw
-
33270500020 Idle Adjusting ScrewIdle Adjusting Screw
-
34270500019 SpringSpring
-
35270500018 WasherWasher
-
36270500119 O-RingO-Ring
-
37270500155 Screw and Spring WasherScrew and Spring Washer
-
38270500125 PlatePlate
-
39270500038 PinPin
-
40270500124 Valve Ass'yValve Ass'y
-
41270500123 ScrewScrew
-
42270500243 Screw. MAG 5577/5578.Screw. MAG 5577/5578.
-
270500322 Screw. PTO 5577/5578.Screw. PTO 5577/5578.
-
43270500238 Screw. PTO 5577/5578.Screw. PTO 5577/5578.
-
44270500440 Cable Support (MAG). MAG 5577/5578.Cable Support (MAG). MAG 5577/5578.
-
45270500431 Choke leverChoke lever
-
46270500382 SpringSpring
-
47270500381 RingRing
-
48270500154 CapCap
-
49270500353 Ring. MAG 5577/5578.Ring. MAG 5577/5578.
-
270500435 Ring. PTO 5577/5578.Ring. PTO 5577/5578.
-
50270500378 RingRing
-
51270500249 Nut. MAG 5577/5578.Nut. MAG 5577/5578.
-
52270500369 Diaphragm. MAG 5577/5578.Diaphragm. MAG 5577/5578.
-
53270500439 Body Pump Ass'y. MAG 5577/5578.Body Pump Ass'y. MAG 5577/5578.
-
54270500366 Diaphragm. MAG 5577/5578.Diaphragm. MAG 5577/5578.
-
55270500365 Gasket. MAG 5577/5578.Gasket. MAG 5577/5578.
-
56270500405 Pump Cover. PTO 5577/5578.Pump Cover. PTO 5577/5578.
-
270500409 Pump Cover. MAG 5577/5578.Pump Cover. MAG 5577/5578.
-
57270500303 Screw. MAG 5577/5578.Screw. MAG 5577/5578.
-
58270500363 O-Ring. MAG 5577/5578.O-Ring. MAG 5577/5578.
-
59270500288 Adjuster Screw. MAG 5577/5578.Adjuster Screw. MAG 5577/5578.
-
60270500368 Diaphragm. MAG 5577/5578.Diaphragm. MAG 5577/5578.
-
61270500412 Throttle Lever. PTO 5577/5578.Throttle Lever. PTO 5577/5578.
-
270500436 Throttle Lever. MAG 5577/5578.Throttle Lever. MAG 5577/5578.
-
62270500403 Bracket. PTO 5577/5578.Bracket. PTO 5577/5578.
-
63270500433 Diaphragm Cover. PTO 5577/5578.Diaphragm Cover. PTO 5577/5578.
-
64270500359 Plate. MAG 5577/5578.Plate. MAG 5577/5578.
-
65270500402 Washer. MAG 5577/5578.Washer. MAG 5577/5578.
-
66293850018 Clip. MAG 5577/5578.Clip. MAG 5577/5578.
-
67234081600 Flat Washer 8 mmFlat Washer 8 mm
-
68270500384 GasketGasket
-
69293250135 GasketGasket
-
70270500342 Hose. PTO 5577/5578.Hose. PTO 5577/5578.
-
71275500549 Hose 6 mmHose 6 mm
-
72293650050 Oetiker ClampOetiker Clamp
-
73270500319 Carburator Linkage. Includes 73 - 74.Carburator Linkage. Includes 73 - 74.
-
74270500351 NutNut
-
270500352 NutNut
-
75293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
76293650071 Oetiker ClampOetiker Clamp
-
77275500548 HoseHose
-
78293650128 Clamp TridonClamp Tridon
-
79270500441 Hose Ass'yHose Ass'y
-
80231182060 Socket Head Screw M8 x 120 (Scotch Grip)Socket Head Screw M8 x 120 (Scotch Grip)
-
81270500442 HoseHose
-
82293650043 ClipClip
-
83270500443 JetJet
-
84293650129 Tridon ClampTridon Clamp
