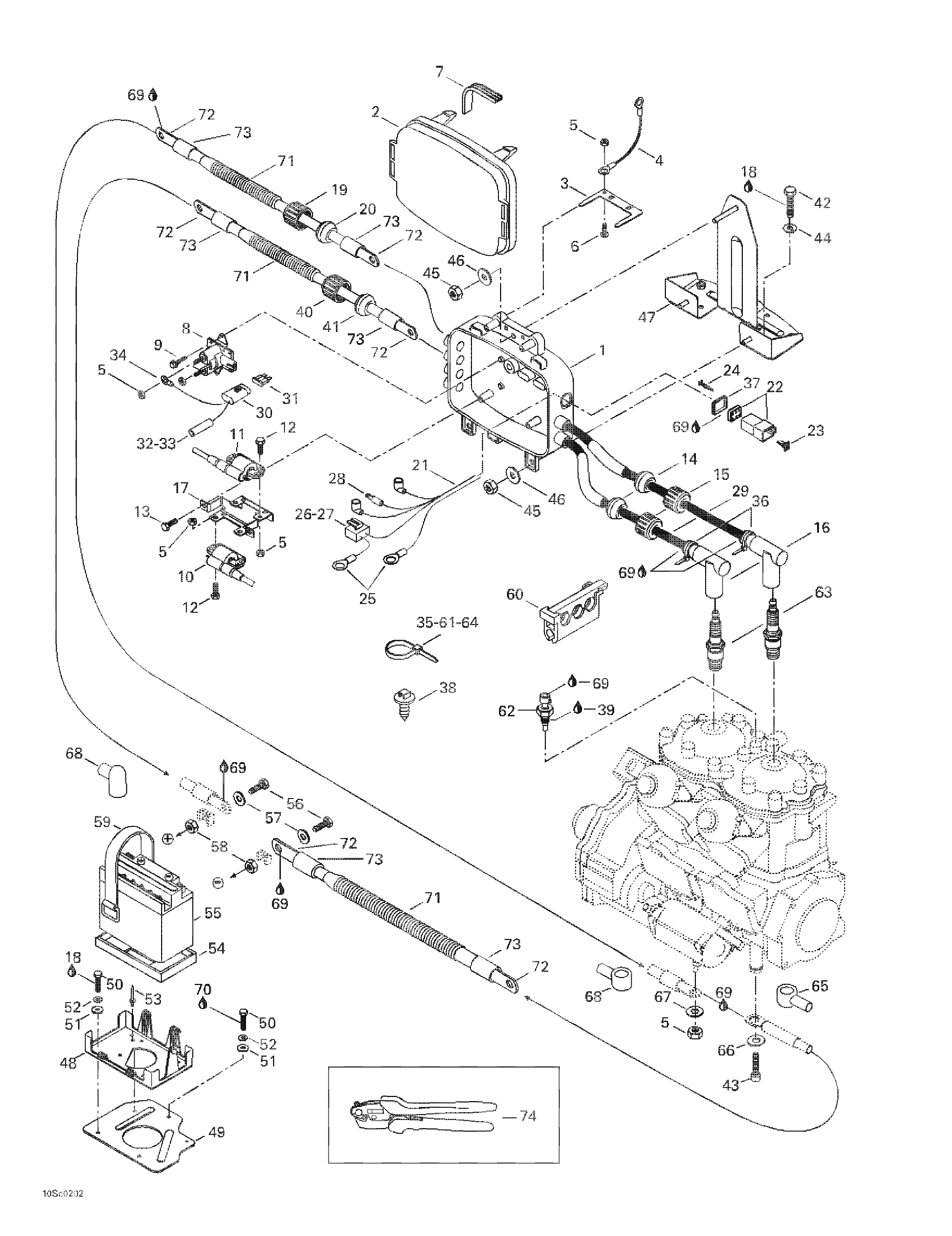

10- Electrical Box And Battery для BRP XP, 5577/5578 - 2002
-
№АртикулНазвание
-
1278001425 Electric Box BaseElectric Box Base
-
2278001433 Electric Box CoverElectric Box Cover
-
3278000732 Ground PlateGround Plate
-
4278001501 Ground WireGround Wire
-
5232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
6205461060 Socket Screw M6 x 10Socket Screw M6 x 10
-
7278001173 GasketGasket
-
8278001766 Starter RelayStarter Relay
-
9210261040 Self Tapping Screw M6 x 10Self Tapping Screw M6 x 10
-
10278001476 Ignition Coil (MAG)Ignition Coil (MAG)
-
11278001414 Ignition Coil (PTO)Ignition Coil (PTO)
-
12207162060 Hex. Screw M6 x 20Hex. Screw M6 x 20
-
13209561640 Self Tapping Screw M6.3 x 16Self Tapping Screw M6.3 x 16
-
14278000682 Grommet (Gray)Grommet (Gray)
-
15278000100 Electric CapElectric Cap
-
16278000237 Spark Plug CapSpark Plug Cap
-
17278001421 Coil SupportCoil Support
-
18293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
19278000100 Electric CapElectric Cap
-
20278000098 Grommet (Black)Grommet (Black)
-
21278001422 Electric Box Harness. Includes 21 - 28.Electric Box Harness. Includes 21 - 28.
-
22270000137 Female Housing (6 Circuits)Female Housing (6 Circuits)
-
23278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
24278000631 Male TerminalMale Terminal
-
25278000300 Open BarrelOpen Barrel
-
26278001113 Male Housing (2 Circuits)Male Housing (2 Circuits)
-
27278001114 Female TerminalFemale Terminal
-
28278000230 Male TerminalMale Terminal
-
29278001268 Spark Plug WireSpark Plug Wire
-
30278001212 Fuse Harness 15 Amp. Includes 30 - 34.Fuse Harness 15 Amp. Includes 30 - 34.
-
31278000343 15 Amp. Fuse15 Amp. Fuse
-
32278001009 Female Terminal (14-18 Gauge)Female Terminal (14-18 Gauge)
-
33278001007 Insulating Sheath (Simple)Insulating Sheath (Simple)
-
34278000300 Open BarrelOpen Barrel
-
35293750001 Tie Rap 94 mmTie Rap 94 mm
-
36293750002 Tie Rap 130 mmTie Rap 130 mm
-
37293200030 GasketGasket
-
38293730018 Dart MountDart Mount
-
39293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
40278000100 Electrical Box CapElectrical Box Cap
-
41278000098 Grommet (Black)Grommet (Black)
-
42211000023 Screw PlastiteScrew Plastite
-
43207302060 Screw Hex. M10 x 20 (Scotch Grip)Screw Hex. M10 x 20 (Scotch Grip)
-
44234151601 Lock Washer 5 mmLock Washer 5 mm
-
45232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
46234062600 Flat Washer 6 mmFlat Washer 6 mm
-
47278001418 Box SupportBox Support
-
48278001580 Battery SupportBattery Support
-
49292000614 Support PlateSupport Plate
-
50211000023 Plastite ScrewPlastite Screw
-
51234052600 Flat Washer 5 mmFlat Washer 5 mm
-
52234151601 Lock Washer 5 mmLock Washer 5 mm
-
53293150037 Rivet 3/16Rivet 3/16
-
54278001746 Battery Lower PadBattery Lower Pad
-
55278001756 BatteryBattery
-
56211000045 Screw HexScrew Hex
-
57211200018 Flat Washer 6 mmFlat Washer 6 mm
-
58211100022 Nut M6Nut M6
-
59293850021 Rubber StrapRubber Strap
-
60278000245 3-Wire Support3-Wire Support
-
61293750008 Tie Rap 350 mmTie Rap 350 mm
-
62278001016 Temperature SensorTemperature Sensor
-
63278000609 Spark Plug BR8-ESSpark Plug BR8-ES
-
64414115200 Tie RapTie Rap
-
65278001491 Wire Cap (Battery)Wire Cap (Battery)
-
66234001600 Flat Washer 10 mmFlat Washer 10 mm
-
67234061600 Flat Washer 6 mmFlat Washer 6 mm
-
68278000020 Wire Cap (Battery)Wire Cap (Battery)
-
69293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
71278001091 Starter Positive Cable, Red. Includes 19,20,68,72,73Starter Positive Cable, Red. Includes 19,20,68,72,73
-
71278001281 Battery Positive Cable, Red. Includes 40,41,68,72,73Battery Positive Cable, Red. Includes 40,41,68,72,73
-
71278001490 Battery Ground Cable, Black. Includes 65,72,73Battery Ground Cable, Black. Includes 65,72,73
