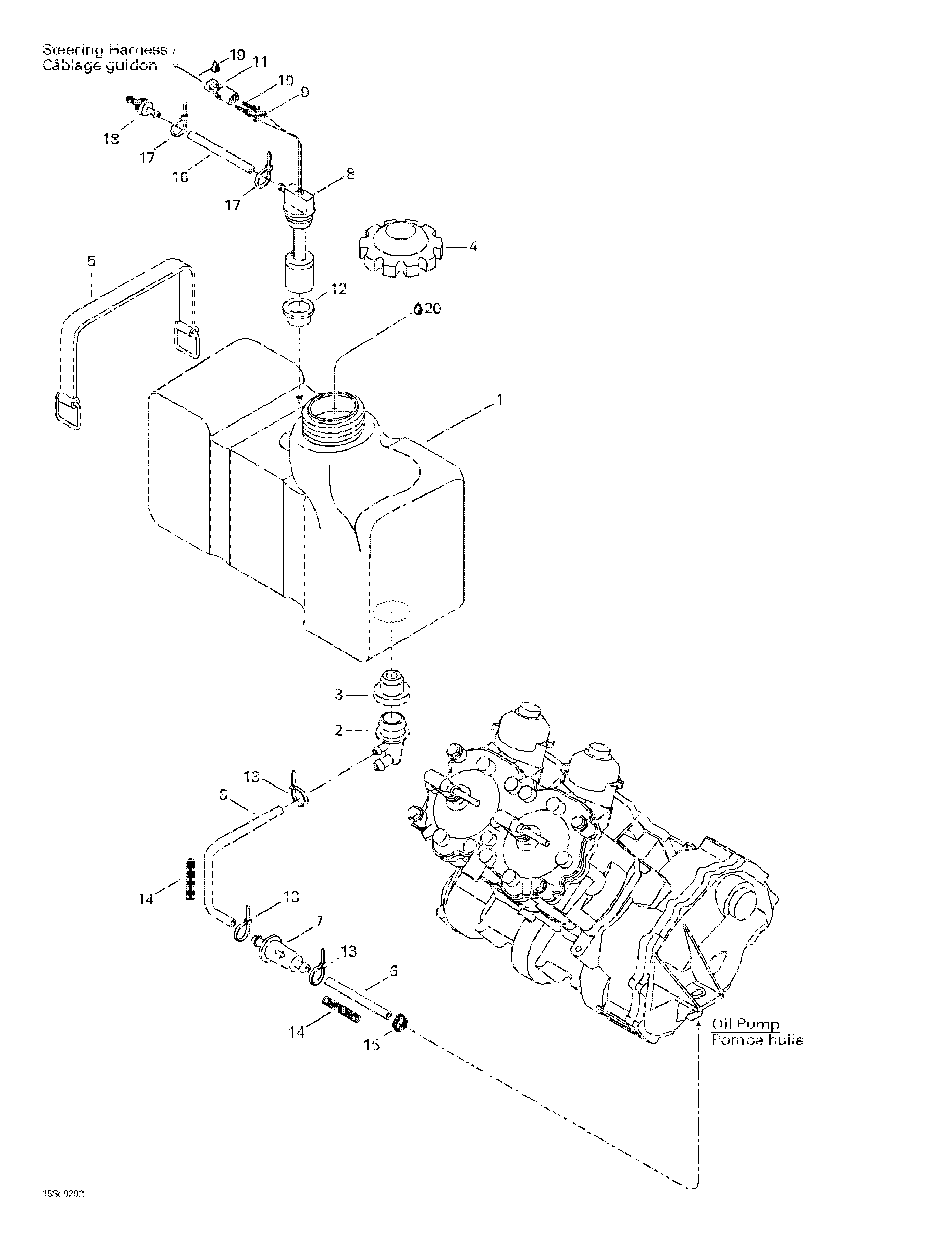

02- Oil Injection System для BRP XP, 5577/5578 - 2002
-
№АртикулНазвание
-
1275000210 Oil TankOil Tank
-
2293710070 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
3293720008 GrommetGrommet
-
4572039600 Oil CapOil Cap
-
5293850097 StrapStrap
-
6275000007 Hose 8 mm (Meter)Hose 8 mm (Meter)
-
7275000051 Oil FilterOil Filter
-
8278001402 Oil Level Sensor Ass'y. Includes 8 - 12.Oil Level Sensor Ass'y. Includes 8 - 12.
-
9278000218 Wire SealWire Seal
-
10278000222 Male TerminalMale Terminal
-
11278000217 Female Housing (2 Circuits)Female Housing (2 Circuits)
-
12293720008 GrommetGrommet
-
13293750001 Tie Rap 94 mmTie Rap 94 mm
-
14270000377 SpringSpring
-
15293650042 Oetiker ClampOetiker Clamp
-
16275500549 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
17293750002 Locking Tie 142 mmLocking Tie 142 mm
-
18275500398 Check ValveCheck Valve
-
19293550004 SyntheticSynthetic
-
20413802900 Injection Oil (12 x 1 Liter)Injection Oil (12 x 1 Liter)
-
413803000 Injection Oil (3 x 4 Liters)Injection Oil (3 x 4 Liters)
-
413803200 Injection Oil (205 Liters)Injection Oil (205 Liters)
-
413710500 Synthetic Injection Oil (12 x 1 Liter)Synthetic Injection Oil (12 x 1 Liter)
-
413711000 Synthetic Injection Oil (3 x 4 Liters)Synthetic Injection Oil (3 x 4 Liters)
-
413710700 Synthetic Injection Oil (205 Liters)Synthetic Injection Oil (205 Liters)
