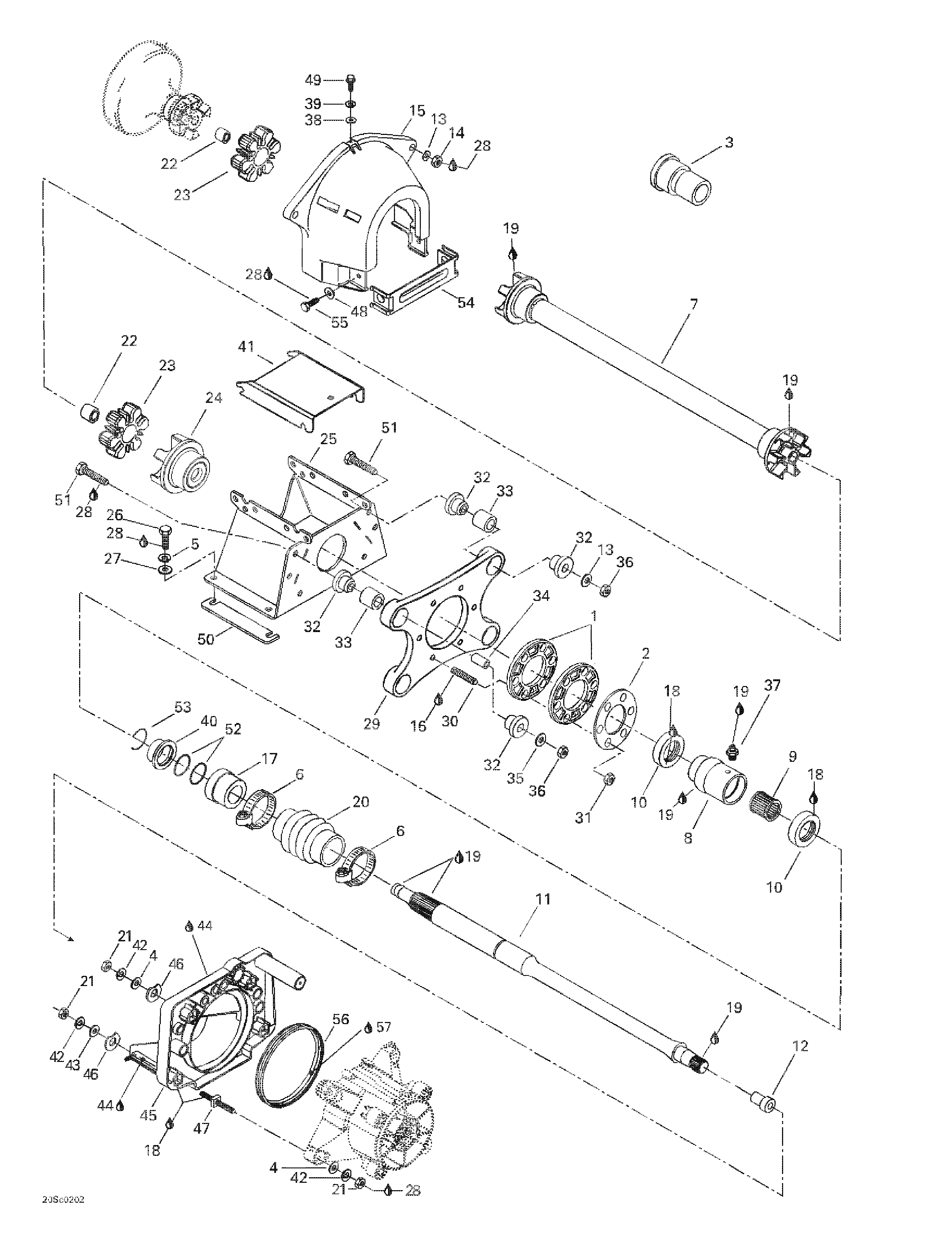

05- Drive System для BRP XP, 5577/5578 - 2002
-
№АртикулНазвание
-
1272000049190 Washer-AlignmentWasher-Alignment
-
2272000051 Washer-FixingWasher-Fixing
-
3292000075 Hull InsertHull Insert
-
4234002600 Washer 10 mmWasher 10 mm
-
5234181601 Lock Washer 8 mmLock Washer 8 mm
-
6293650075 Norma ClampNorma Clamp
-
7272000154 Drive Shaft Ass'yDrive Shaft Ass'y
-
8272000012400 Joint SupportJoint Support
-
9293350007 Needle BearingNeedle Bearing
-
10293200012 Double Lip SealDouble Lip Seal
-
11272000150 Drive ShaftDrive Shaft
-
12272000019 Plug (Bumper)Plug (Bumper)
-
13234082600 Washer 8 mmWasher 8 mm
-
14232081600 Nut M8Nut M8
-
15272000130 Flywheel GuardFlywheel Guard
-
16293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
17272000770 Carbon RingCarbon Ring
-
18293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
19293550010 Synthetic Grease, 400 gSynthetic Grease, 400 g
-
20272000184 BellowBellow
-
21232001600 Nut M10Nut M10
-
22293900016 Snap BushingSnap Bushing
-
23293830067 Adaptor (Rubber)Adaptor (Rubber)
-
24272000158 Coupler Ass'yCoupler Ass'y
-
25272000136 Support Shaft (Black)Support Shaft (Black)
-
26207183060 Hex. Screw M8 x 30Hex. Screw M8 x 30
-
27234081600 Washer 8 mmWasher 8 mm
-
28293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
29272000048190 Damping SupportDamping Support
-
30211300016 Stud M6 x 30Stud M6 x 30
-
31232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
32293830031 Bushing RubberBushing Rubber
-
33274000114 BushingBushing
-
34271001319 SpacerSpacer
-
35234081600 Washer 8 mm (L.H.)Washer 8 mm (L.H.)
-
36232581650 Elastic Stop Nut M8Elastic Stop Nut M8
-
37293550008 Grease FittingGrease Fitting
-
38234051600 Flat Washer 5 mmFlat Washer 5 mm
-
39234151601 Lock Washer 5 mmLock Washer 5 mm
-
40272000064 Ring Seal-CarrierRing Seal-Carrier
-
41272000139 Shaft GuardShaft Guard
-
42234101601 Washer Lock 10 mmWasher Lock 10 mm
-
43234001600 Washer 10 mmWasher 10 mm
-
44293800053 Sealant Right Stuff 26015, 7 ozSealant Right Stuff 26015, 7 oz
-
45271001084 Support pumpSupport pump
-
46272000053 ShimShim
-
47250300010 StudStud
-
48234062600 Flat Washer 6 mmFlat Washer 6 mm
-
49243041660 Hex. Screw M4.8 x 16Hex. Screw M4.8 x 16
-
50272000166 ShimShim
-
51207084560 Hex. Screw M8 x 45 (R.H. Side)Hex. Screw M8 x 45 (R.H. Side)
-
52293300032 O-RingO-Ring
-
53272000135 > clip> clip
-
54291001228 Lower Front GuardLower Front Guard
-
55207161660 Hex. Screw M6 x 16Hex. Screw M6 x 16
-
56293200051 Neoprene SealNeoprene Seal
-
57413708300 Loctite Gel 454, 20 gLoctite Gel 454, 20 g
