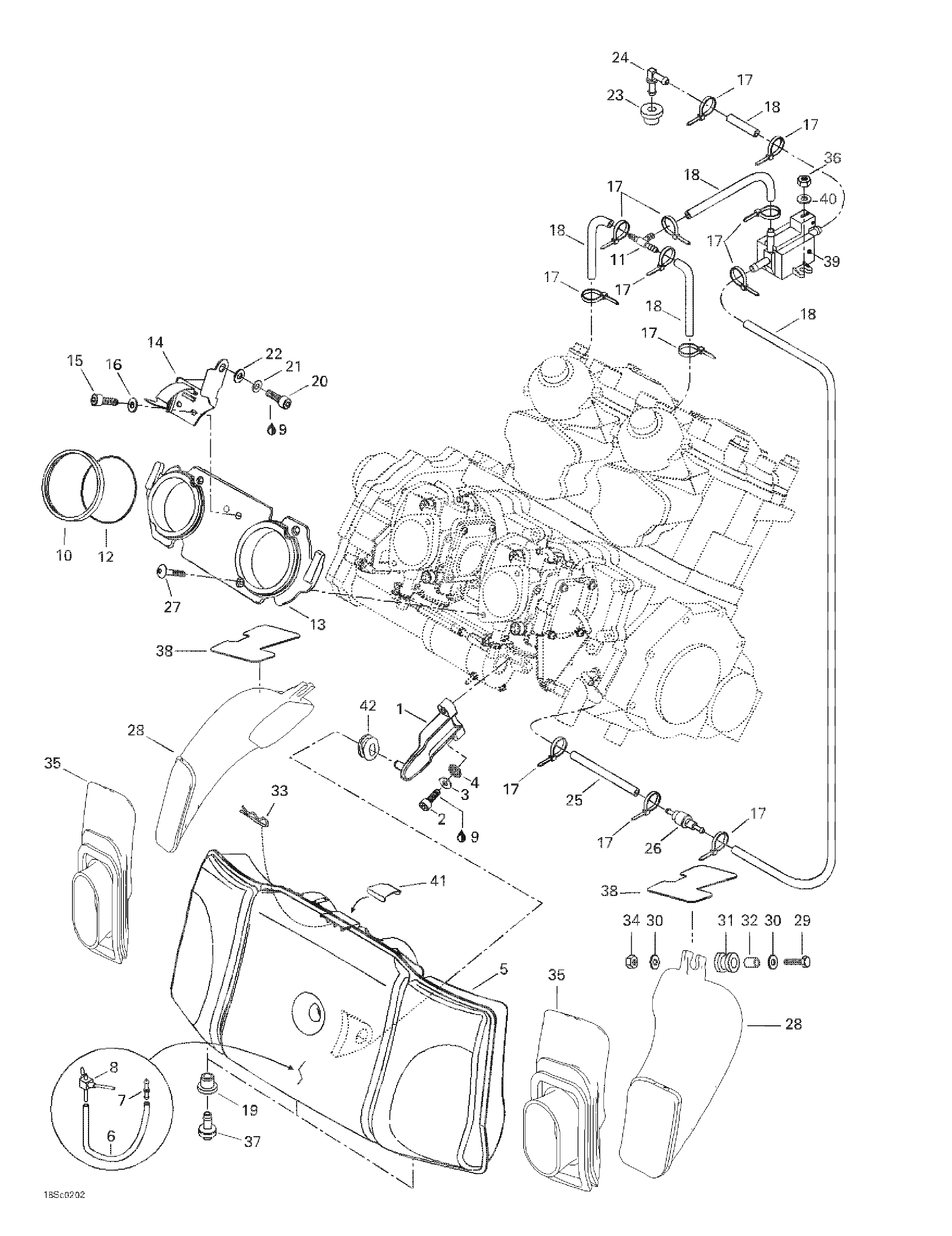

02- Air Intake System для BRP XP, 5577/5578 - 2002
-
№АртикулНазвание
-
1273000123 Air Silencer SupportAir Silencer Support
-
2205063560 Socket Head Screw M6 x 35Socket Head Screw M6 x 35
-
3234061600 Flat Washer 6 mmFlat Washer 6 mm
-
4234161601 Lock Serrated Washer 6 mmLock Serrated Washer 6 mm
-
5273000213 Air Silencer. Includes 5 - 8.Air Silencer. Includes 5 - 8.
-
6415080100 Line-primerLine-primer
-
7273000181 ConnectorConnector
-
9293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
10293250122 GasketGasket
-
11293710068 ''T'' Fitting''T'' Fitting
-
12293250065 O-RingO-Ring
-
13270500383 Muffler AdaptorMuffler Adaptor
-
14270000455 HolderHolder
-
15205561260 Socket Head Screw M6 x 12 (Scotch Grip)Socket Head Screw M6 x 12 (Scotch Grip)
-
16234061600 Flat Washer 6 mmFlat Washer 6 mm
-
17293750001 Tie Rap 94 mmTie Rap 94 mm
-
18270000374 Hose 4.3 mm (Meter)Hose 4.3 mm (Meter)
-
19293720064 GrommetGrommet
-
20205081660 Socket Head Screw M8 x 16Socket Head Screw M8 x 16
-
21234181601 Lock Washer 8 mmLock Washer 8 mm
-
22234082600 Flat Washer 8 mmFlat Washer 8 mm
-
23293720029 GrommetGrommet
-
24293710050 Elbow Fitting 90 DegElbow Fitting 90 Deg
-
25276000048 Hose 6 mm (Meter)Hose 6 mm (Meter)
-
26275500479 Check ValveCheck Valve
-
27270500357 ScrewScrew
-
28273000151 Air Duct (PTO)Air Duct (PTO)
-
273000150 Air Duct (MAG)Air Duct (MAG)
-
29207063560 Hex. Screw M6 x 35Hex. Screw M6 x 35
-
30234062600 Flat Washer 6 mmFlat Washer 6 mm
-
31278001260 InsulatorInsulator
-
32272000074 Spacer 8 mmSpacer 8 mm
-
33250400015 Hair PinHair Pin
-
34232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
35273000163 Intake Adaptor (PTO)Intake Adaptor (PTO)
-
273000164 Intake Adaptor (MAG)Intake Adaptor (MAG)
-
36232551600 Elastic Stop Nut M5Elastic Stop Nut M5
-
37275500454 Check ValveCheck Valve
-
38273000165 Protector PadProtector Pad
-
39270600005 Soleno‹d ValveSoleno‹d Valve
-
40234051600 Flat Washer 5 mmFlat Washer 5 mm
-
41273000204 Support plateSupport plate
-
42293720052 GrommetGrommet
