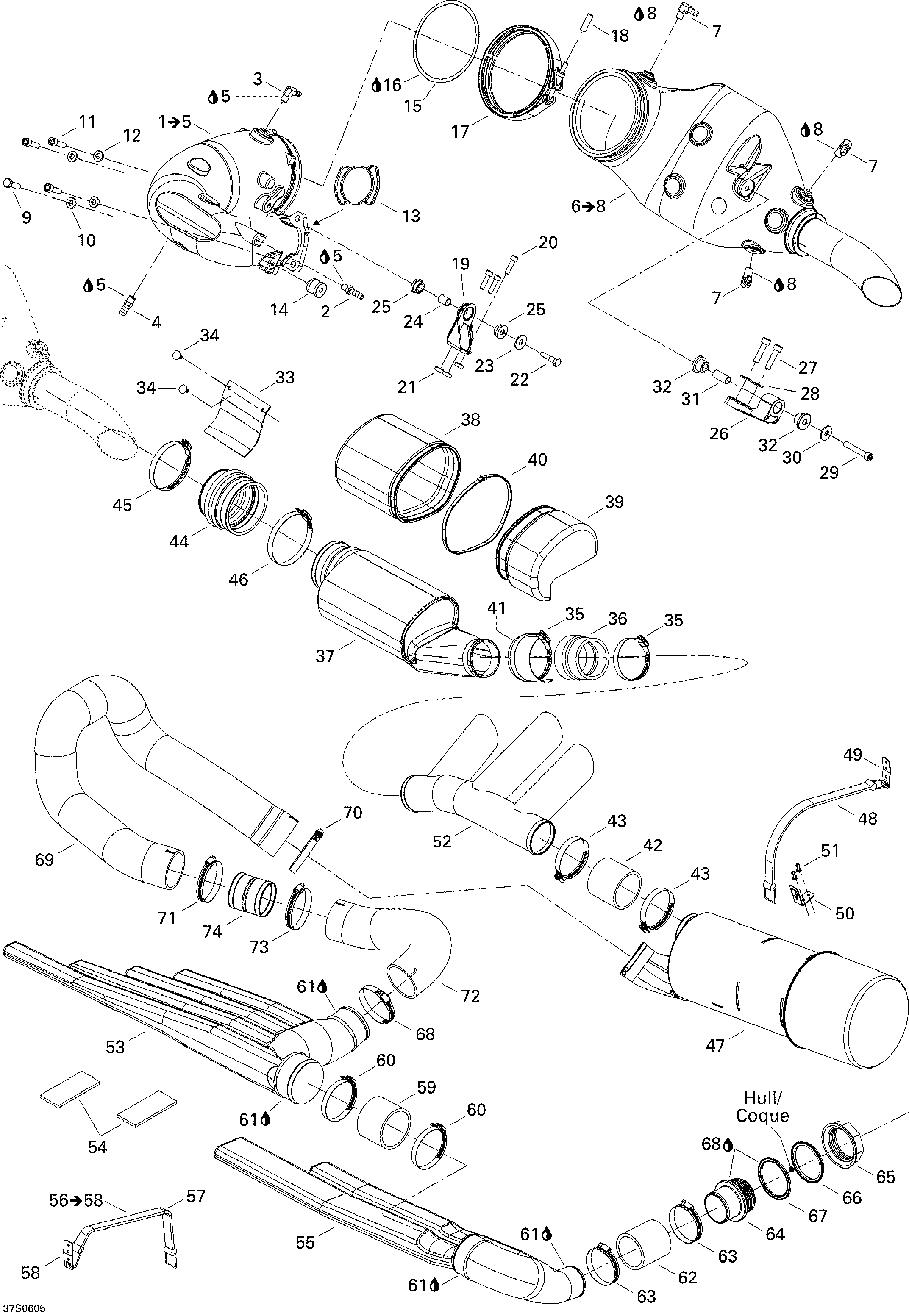

01- Exhaust System для BRP 3D 947 DI - 2006
-
№АртикулНазвание
-
1274001333 Head Pipe. Includes 1 to 5Head Pipe. Includes 1 to 5
-
2293710037 Male ConnectorMale Connector
-
3293700016 Elbow Fitting 90°Elbow Fitting 90°
-
4293710021 Male ConnectorMale Connector
-
5293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
6274001334 Cone Pipe. Includes 6 to 8Cone Pipe. Includes 6 to 8
-
7293700016 Elbow Fitting 90°Elbow Fitting 90°
-
8293800018 Loctite 592, Pipe Sealant, 50 mlLoctite 592, Pipe Sealant, 50 ml
-
9245103570 Hex Screw M10 X 35Hex Screw M10 X 35
-
10211200051 Flat WasherFlat Washer
-
11244003570 Socket Screw M10 X 35Socket Screw M10 X 35
-
12211200051 Flat WasherFlat Washer
-
13420931990 Exhaust GasketExhaust Gasket
-
14274000839 Rubber IsolatorRubber Isolator
-
15274000511 Sealing RingSealing Ring
-
16293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
17274000510 Exhaust ClampExhaust Clamp
-
18275000007 Hose 8 mmHose 8 mm
-
19274001109 Pipe Support, BlackPipe Support, Black
-
20244083060 Socket Head Screw M8 X 30, Scotch GripSocket Head Screw M8 X 30, Scotch Grip
-
21250200012 Flat Washer M8.4Flat Washer M8.4
-
22245004060 Hex Screw M10 X 40, Scotch GripHex Screw M10 X 40, Scotch Grip
-
23234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
24274000861 BushingBushing
-
25293830065 Rubber BushingRubber Bushing
-
26274001328 SupportSupport
-
27244084070 Socket Screw M8 X 40Socket Screw M8 X 40
-
28234082600 Flat Washer 8 mmFlat Washer 8 mm
-
29244006060 Socket Screw M10 X 60Socket Screw M10 X 60
-
30234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
31274001321 BushingBushing
-
32293830114 Rubber BushingRubber Bushing
-
33293830109 Rubber PadRubber Pad
-
34293730011 Dart, BlackDart, Black
-
35293650006 Tridon ClampTridon Clamp
-
36274001234 Exhaust HoseExhaust Hose
-
37274001219 Water SeparatorWater Separator
-
38274001276 Front Muffler CoverFront Muffler Cover
-
39274001322 Rear Muffler CoverRear Muffler Cover
-
40293750020 Tie-Rap 838 mmTie-Rap 838 mm
-
41274001235 Heat ShieldHeat Shield
-
42274001326 Exhaust HoseExhaust Hose
-
43293650006 Tridon ClampTridon Clamp
-
44274001314 Exhaust BellowExhaust Bellow
-
45204000079 Tridon ClampTridon Clamp
-
46293650169 Tridon ClampTridon Clamp
-
47274001231 Muffler Ass'yMuffler Ass'y
-
48293850067 Fuel Tank StrapFuel Tank Strap
-
49293850024 Strap ClipStrap Clip
-
50293850075 Strap Clip 90°Strap Clip 90°
-
51293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
52274001230 ResonatorResonator
-
53274000700 LH Upper ResonatorLH Upper Resonator
-
54274000752 Rubber PadRubber Pad
-
55274000701 Resonator ExtensionResonator Extension
-
56293850082 Strap Ass'y. Includes 56 to 58Strap Ass'y. Includes 56 to 58
-
57293850036 Fuel Tank StrapFuel Tank Strap
-
58293850030 Strap ClipStrap Clip
-
59274000726 Exhaust HoseExhaust Hose
-
60204000079 Tridon ClampTridon Clamp
-
61293800090 Sealant, Loctite, 80 mlSealant, Loctite, 80 ml
-
62274001304 Exhaust HoseExhaust Hose
-
63293650064 Tridon ClampTridon Clamp
-
64274000843 Exhaust OutletExhaust Outlet
-
65274000835 Nut 72 mmNut 72 mm
-
66274000225 Stabilizing WasherStabilizing Washer
-
67293250041 GasketGasket
-
68296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
69274001311 Exhaust HoseExhaust Hose
-
70293650006 Tridon ClampTridon Clamp
-
71293650107 Tridon ClampTridon Clamp
-
72274001312 Exhaust HoseExhaust Hose
-
73293650107 Tridon ClampTridon Clamp
-
74274001313 Hose AdapterHose Adapter
