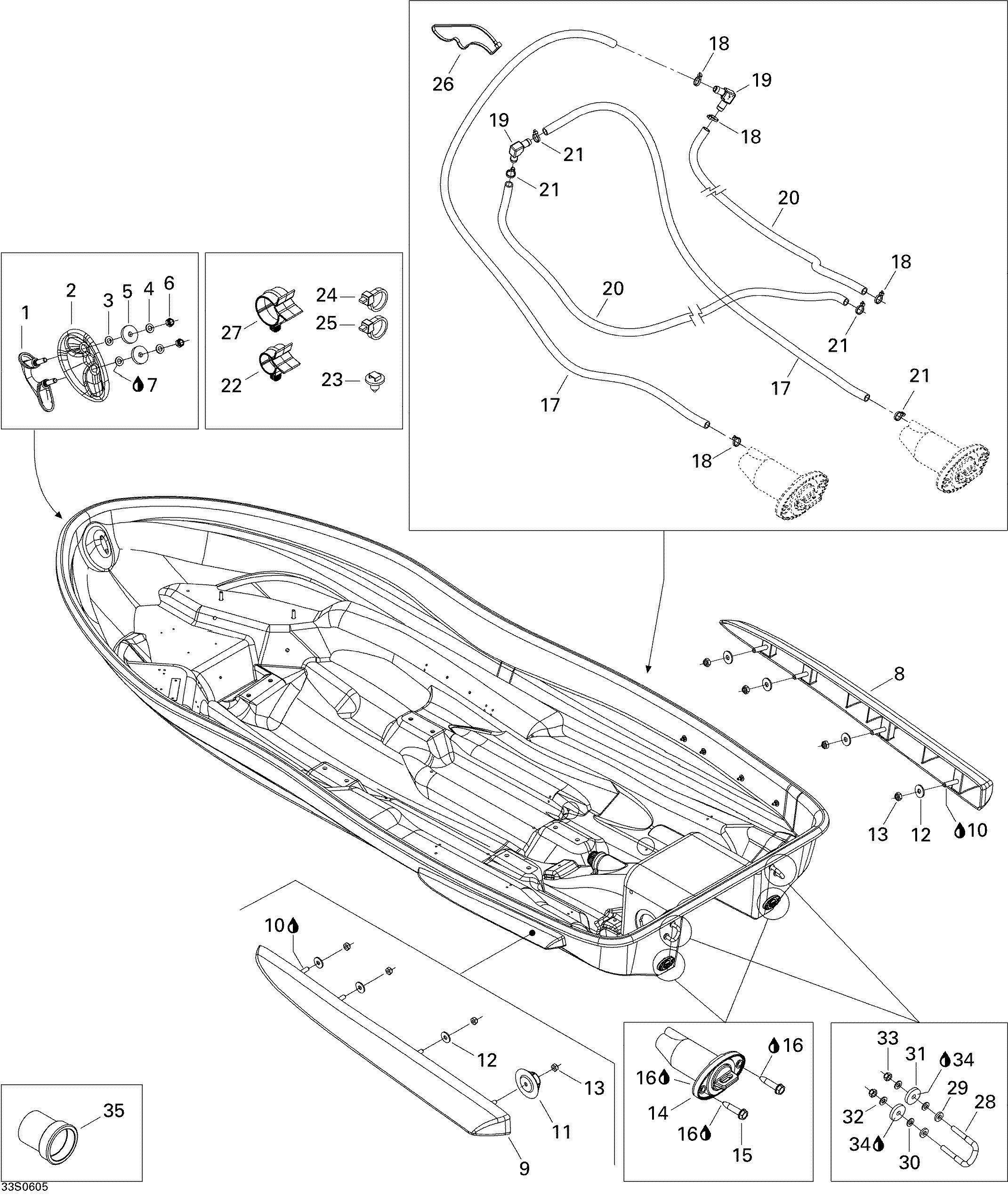

09- Hull для BRP 3D 947 DI - 2006
-
№АртикулНазвание
-
1292000708 Bow Eye Ass'y, BlackBow Eye Ass'y, Black
-
2292000453 Shell, BlackShell, Black
-
3234081600 Flat Washer 8 mmFlat Washer 8 mm
-
4250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
5293830037 Rubber WasherRubber Washer
-
6232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
7296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
8292000411 RH SponsonRH Sponson
-
9292000412 LH SponsonLH Sponson
-
10296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
11292000992 InsulatorInsulator
-
12234062600 Flat Washer 6 mmFlat Washer 6 mm
-
13232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
14292001075 Drain Plug Ass'yDrain Plug Ass'y
-
15211000023 Hex Flanged Plastite Screw #10 X 7/8''Hex Flanged Plastite Screw #10 X 7/8''
-
16296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
17415080700 Hose 8 mmHose 8 mm
-
18293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
19293710057 Elbow Fitting 90°Elbow Fitting 90°
-
20275000007 Hose 8 mmHose 8 mm
-
21293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
22275500527 RetainerRetainer
-
23293730018 Mount DartMount Dart
-
24414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
25293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
26293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
27275500590 RetainerRetainer
-
28292000933 U-ClampU-Clamp
-
29293050001 Flat WasherFlat Washer
-
30234081100 Flat Washer M8Flat Washer M8
-
31293830037 Rubber WasherRubber Washer
-
32250200011 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
33232581600 Hex Elastic Nut M8Hex Elastic Nut M8
-
34296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
35292000075 Hull InsertHull Insert
