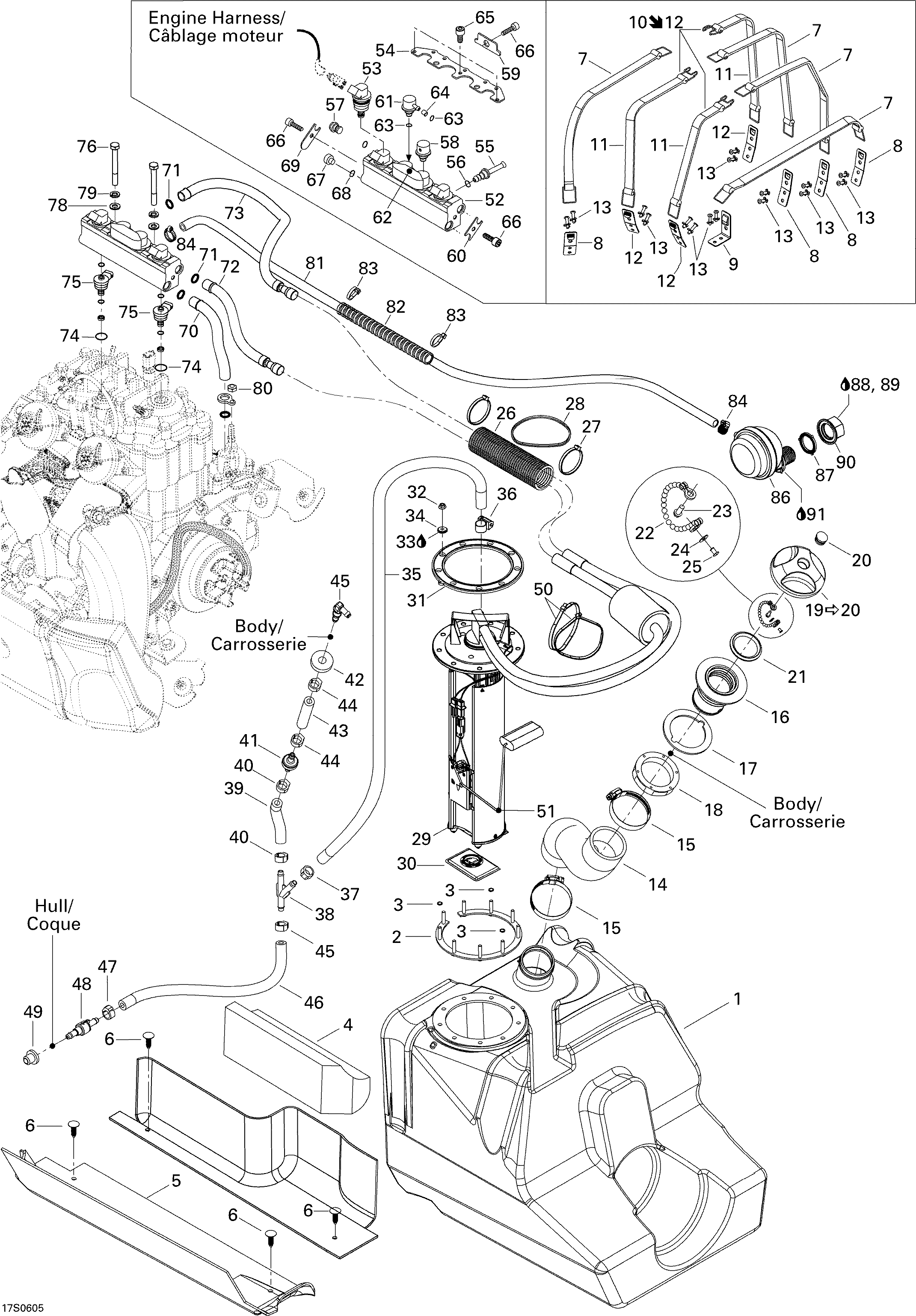

02- Fuel System для BRP 3D 947 DI - 2006
-
№АртикулНазвание
-
1275500652 Fuel Tank. Includes 1 to 3Fuel Tank. Includes 1 to 3
-
2275500616 C-ring, 9 StudC-ring, 9 Stud
-
3389804300 Push NutPush Nut
-
4292001065 Foam PadFoam Pad
-
5293830087 Rubber PadRubber Pad
-
6293730006 Dart, BlackDart, Black
-
7293850067 Fuel Tank StrapFuel Tank Strap
-
8293850024 Strap ClipStrap Clip
-
9293850076 Strap Clip 90°Strap Clip 90°
-
10293850037 Fuel Tank StrapFuel Tank Strap
-
11293850038 Fuel Tank StrapFuel Tank Strap
-
12293850024 Strap ClipStrap Clip
-
13293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
14275500649 Fuel Hose FillerFuel Hose Filler
-
15293650023 Tridon ClampTridon Clamp
-
16275500231 Filler NeckFiller Neck
-
17293250029 GasketGasket
-
18211100012 Fuel Filler Neck NutFuel Filler Neck Nut
-
19275500430 Fuel Cap Ass'y, Black. Includes 20 to 21Fuel Cap Ass'y, Black. Includes 20 to 21
-
20293000034 Snap Cap, BlackSnap Cap, Black
-
21293250075 GasketGasket
-
22275500518 ChainChain
-
23241140060 Hex Flanged Screw K40 X 10Hex Flanged Screw K40 X 10
-
24234032600 Flat Washer 3 mmFlat Washer 3 mm
-
25390407900 Pop Rivet 1/8''Pop Rivet 1/8''
-
26415084700 Protector ShieldProtector Shield
-
27293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
28293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
29275500655 Fuel Module Ass'y. Includes 29 to 30Fuel Module Ass'y. Includes 29 to 30
-
30219700368 Fuel FilterFuel Filter
-
31293250088 GasketGasket
-
32250100071 Hex Flanged Nut M5Hex Flanged Nut M5
-
33293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
34291001956 Rubber WasherRubber Washer
-
35275500549 Hose 1/4''Hose 1/4''
-
36293650170 Tridon ClampTridon Clamp
-
37293650025 Oetiker ClampOetiker Clamp
-
38293710059 Y-FittingY-Fitting
-
39275500549 Hose 1/4''Hose 1/4''
-
40293650025 Oetiker ClampOetiker Clamp
-
41275500398 Check ValveCheck Valve
-
42570135100 GrommetGrommet
-
43275500549 Hose 1/4''Hose 1/4''
-
44293650025 Oetiker ClampOetiker Clamp
-
45414580600 Elbow Male ConnectorElbow Male Connector
-
46275500549 Hose 1/4''Hose 1/4''
-
47293650025 Oetiker ClampOetiker Clamp
-
48275500505 Check ValveCheck Valve
-
49293720029 GrommetGrommet
-
50293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
51270600051 Sensor LeverSensor Lever
-
52275500656 Fuel Distributor Ass'y. Includes 52 to 73Fuel Distributor Ass'y. Includes 52 to 73
-
53275500460 Fuel InjectorFuel Injector
-
54275500543 Retainer PlateRetainer Plate
-
55275500538 Air AdapterAir Adapter
-
56293300069 O-RingO-Ring
-
57275500595 Fuel PlugFuel Plug
-
58275500463 Air RegulatorAir Regulator
-
59275500456 Retainer PlateRetainer Plate
-
60275500596 Retainer PlateRetainer Plate
-
61275500464 Fuel RegulatorFuel Regulator
-
62275500449 CoverCover
-
63293300072 O-RingO-Ring
-
64275500465 SpacerSpacer
-
65205051260 Socket Head Screw M5 X 12Socket Head Screw M5 X 12
-
66205061260 Socket Head Screw M6 X 12Socket Head Screw M6 X 12
-
67275500597 Air PlugAir Plug
-
68275500598 O-RingO-Ring
-
69275500455 Retainer PlateRetainer Plate
-
70270600022 Pressure Hose. Includes 70 to 71Pressure Hose. Includes 70 to 71
-
71293300070 O-RingO-Ring
-
72275500657 Fuel Hose Ass'yFuel Hose Ass'y
-
73275500658 Fuel Hose Ass'yFuel Hose Ass'y
-
74293300083 O-RingO-Ring
-
75275500633 Air InjectorAir Injector
-
76207087060 Hex Screw M8 X 70Hex Screw M8 X 70
-
77293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
78234081600 Flat Washer 8 mmFlat Washer 8 mm
-
79234181601 Lock Washer 8 mmLock Washer 8 mm
-
80232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
81276000084 Hose 8 mmHose 8 mm
-
82415080000 Tubing 16mmTubing 16mm
-
83293750002 Tie-rap 130 mmTie-rap 130 mm
-
84293650170 Tridon ClampTridon Clamp
-
86270000569 Noise ReducerNoise Reducer
-
87293830027 Seal WasherSeal Washer
-
88293800041 Loctite, Primer N, 128 GLoctite, Primer N, 128 G
-
89293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
90211100020 Special Nut M27Special Nut M27
-
91296000309 Sealant Silicone, ClearSealant Silicone, Clear
