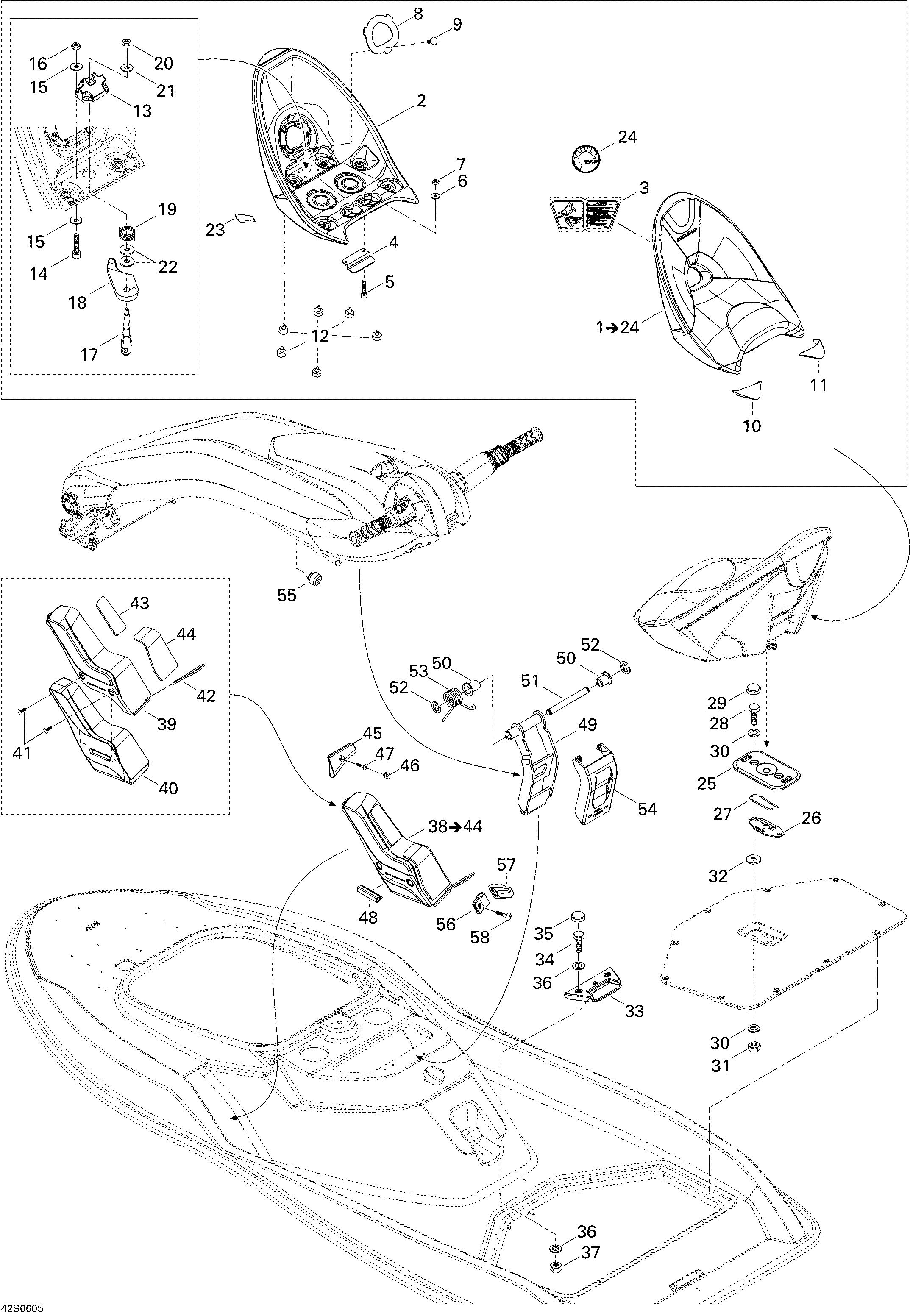

09- Kart Seat для BRP 3D 947 DI - 2006
-
№АртикулНазвание
-
1269001254 Kart Seat Ass'y, Black. Includes 1 to 24Kart Seat Ass'y, Black. Includes 1 to 24
-
3219902454 Warning Label, Kart SeatWarning Label, Kart Seat
-
4269001167 Kart Seat PlateKart Seat Plate
-
5205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
6234062600 Flat Washer 6 mmFlat Washer 6 mm
-
7232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
8293730011 Dart, BlackDart, Black
-
9293730006 Dart, BlackDart, Black
-
10269001157 RH Seat CornerRH Seat Corner
-
11269001158 LH Seat CornerLH Seat Corner
-
12708000006 Rubber StopperRubber Stopper
-
13269001150 Pine SupportPine Support
-
14205062560 Socket Head Screw M6 X 25Socket Head Screw M6 X 25
-
15234062600 Flat Washer 6 mmFlat Washer 6 mm
-
16232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
17269001149 PinePine
-
18269001152 Pine HandlePine Handle
-
19269001151 Pine SpringPine Spring
-
20232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
21234061600 Flat Washer 6 mmFlat Washer 6 mm
-
22234001600 Flat Washer 10 mmFlat Washer 10 mm
-
24219902477 BRP Logo, VinylBRP Logo, Vinyl
-
25269001156 Latch BaseLatch Base
-
26204070036 Latch CoverLatch Cover
-
27269700017 Latch SpringLatch Spring
-
28207064060 Hex Screw M6 X 40Hex Screw M6 X 40
-
29414436900 Snap Cap, BlackSnap Cap, Black
-
30234061600 Flat Washer 6 mmFlat Washer 6 mm
-
31232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
32234062600 Flat Washer 6 mmFlat Washer 6 mm
-
33291002036 Seat HookSeat Hook
-
34207063560 Hex Screw M6 X 35Hex Screw M6 X 35
-
35414436900 Snap Cap, BlackSnap Cap, Black
-
36234061600 Flat Washer 6 mmFlat Washer 6 mm
-
37232561600 Elastic Stop Nut M6Elastic Stop Nut M6
-
39291002042 Upper Foot Peg RHUpper Foot Peg RH
-
39291002043 Upper Foot Peg LHUpper Foot Peg LH
-
40291002123 Foot Peg Foam RHFoot Peg Foam RH
-
40291002122 Foot Peg Foam LHFoot Peg Foam LH
-
41293730006 Dart, BlackDart, Black
-
42293850084 Elastic Rope 4.3 mmElastic Rope 4.3 mm
-
42293850084 Elastic Rope 4.3 mmElastic Rope 4.3 mm
-
43291002432 Upper Carpet RHUpper Carpet RH
-
43291002435 Upper Carpet LHUpper Carpet LH
-
44291002433 Lower Carpet RHLower Carpet RH
-
44291002436 Lower Carpet LHLower Carpet LH
-
45291002132 RH Foot Peg HolderRH Foot Peg Holder
-
45291002131 LH Foot Peg HolderLH Foot Peg Holder
-
46291001040 Bumper Plug, BlackBumper Plug, Black
-
47250000207 Plastite Torx Screw #10 X 7/8''Plastite Torx Screw #10 X 7/8''
-
48293200062 Seal (Meter)Seal (Meter)
-
49269001261 Seat LatchSeat Latch
-
50204130095 BushingBushing
-
51269001197 Seat Latch ShaftSeat Latch Shaft
-
52293370010 Circlip 7mmCirclip 7mm
-
53269001153 Seat Latch SpringSeat Latch Spring
-
54269001164 Seat Latch CapSeat Latch Cap
-
55293830005 Rubber PlugRubber Plug
-
56293750029 Cable ClampCable Clamp
-
57293750030 HookHook
-
58250000207 Plastite Torx Screw #10 X 7/8''Plastite Torx Screw #10 X 7/8''
