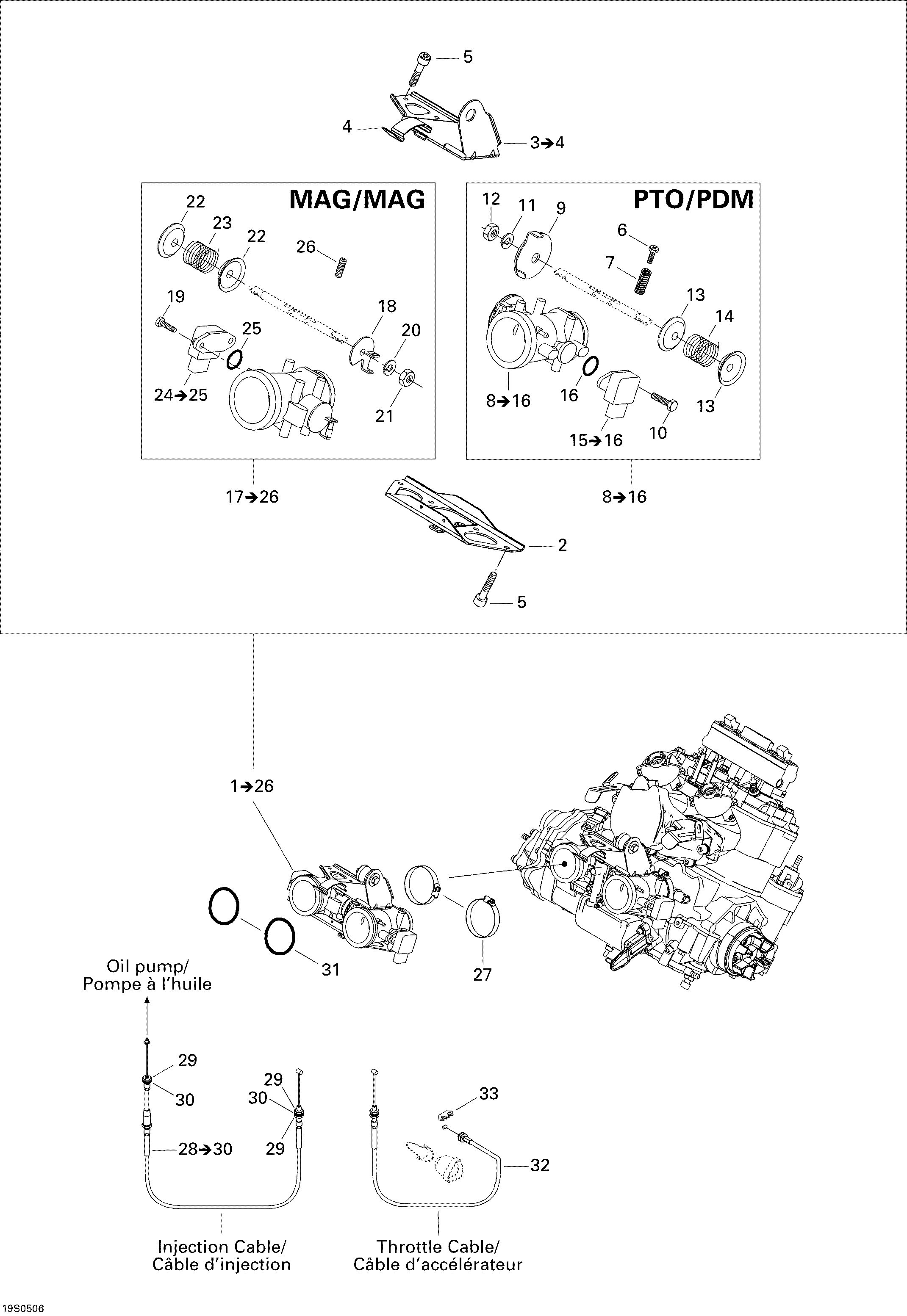

02- Throttle Body для BRP 3D 947 DI - 2006
-
№АртикулНазвание
-
2270600069 Lower SupportLower Support
-
3270600070 Support Ass'YSupport Ass'Y
-
4270600073 Latch BracketLatch Bracket
-
5205051060 Socket Screw M5 X 10Socket Screw M5 X 10
-
6270600074 Adjuster ScrewAdjuster Screw
-
7270600075 SpringSpring
-
8270600099 Primary Throttle Body Ass'yPrimary Throttle Body Ass'y
-
15270000251 Position Sensor. Includes 15 to 16Position Sensor. Includes 15 to 16
-
17270600100 Secondary Throttle Body Ass'ySecondary Throttle Body Ass'y
-
26270600084 Idle ScrewIdle Screw
-
27293650079 Norma ClampNorma Clamp
-
28270000546 Injection CableInjection Cable
-
29232160600 Hex Nut M6Hex Nut M6
-
30234061600 Flat Washer 6 mmFlat Washer 6 mm
-
31293250065 O-RingO-Ring
-
32277001423 Throttle CableThrottle Cable
-
33277000279 Tab LockTab Lock
