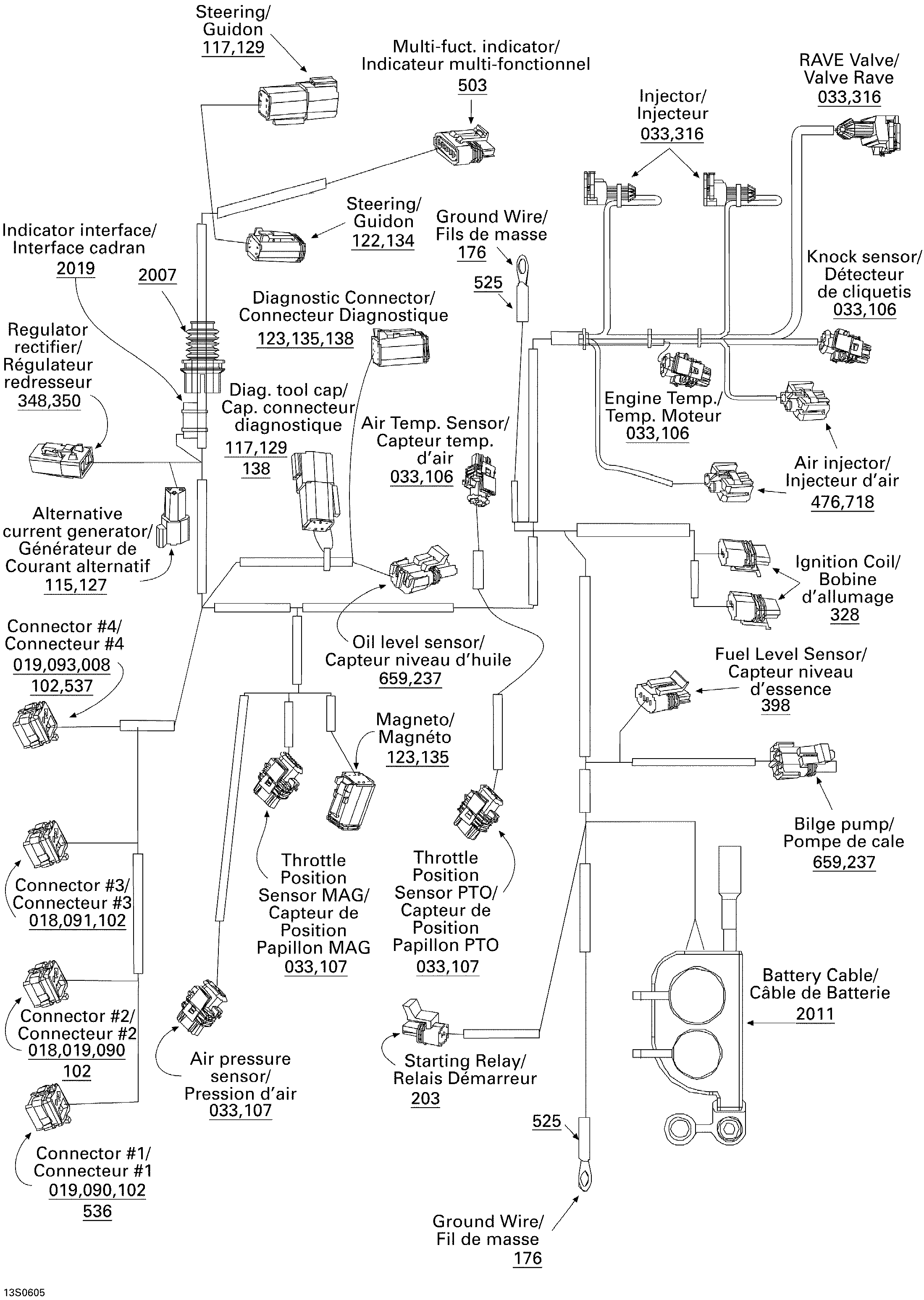

10- Electrical Harness для BRP 3D 947 DI - 2006
-
№АртикулНазвание
-
1278002083 Main Harness. Includes 1 to 2011Main Harness. Includes 1 to 2011
-
7409011700 Female TerminalFemale Terminal
-
8278000994 Female TerminalFemale Terminal
-
18278001223 SealSeal
-
19409013900 SealSeal
-
32278000998 Female TerminalFemale Terminal
-
33278000999 SealSeal
-
86278000995 Female TerminalFemale Terminal
-
90278001062 Male Connector, 26 CircuitsMale Connector, 26 Circuits
-
91278001063 Male Connector (26 Circuits)Male Connector (26 Circuits)
-
93278000996 SealSeal
-
102293000070 SealSeal
-
106278001005 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
107278000997 Male Connector, 3 CircuitsMale Connector, 3 Circuits
-
110278000631 Male TerminalMale Terminal
-
112278000632 Female TerminalFemale Terminal
-
115409207000 Female Connector, 3 CircuitsFemale Connector, 3 Circuits
-
117270000137 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
122278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
123278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
127409207600 Secondary Lock, 3 CircuitsSecondary Lock, 3 Circuits
-
129278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
134278000738 Secondary Lock, 4 CircuitsSecondary Lock, 4 Circuits
-
135278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
138293000052 Seal PlugSeal Plug
-
176409003200 Open BarrelOpen Barrel
-
196293750002 Tie-rap 130 mmTie-rap 130 mm
-
202278001114 Female TerminalFemale Terminal
-
203278001113 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
229278000223 Female TerminalFemale Terminal
-
237278000220 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
242278000218 Wire SealWire Seal
-
316278001003 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
320515175567 Female TerminalFemale Terminal
-
328278001467 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
348278001673 Female Terminal Housing (2 Circuits)Female Terminal Housing (2 Circuits)
-
350278001671 Secondary Lock, 2 CircuitsSecondary Lock, 2 Circuits
-
398278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
474278001481 Female TerminalFemale Terminal
-
476278001482 SealSeal
-
501710000412 Female TerminalFemale Terminal
-
503710000414 Bloc Male, 6 CircuitsBloc Male, 6 Circuits
-
525710000482 Shrink TubingShrink Tubing
-
536278000993 Male Connector, 26 CircuitsMale Connector, 26 Circuits
-
537278001211 Male Connector, 26 CircuitsMale Connector, 26 Circuits
-
538278001210 Female TerminalFemale Terminal
-
659278001065 Wire SealWire Seal
-
718278001480 Male Connector, 2 CircuitsMale Connector, 2 Circuits
-
2007293720042 GrommetGrommet
-
2011278002097 Battery CableBattery Cable
-
2019278002106 Gauge InterfaceGauge Interface
