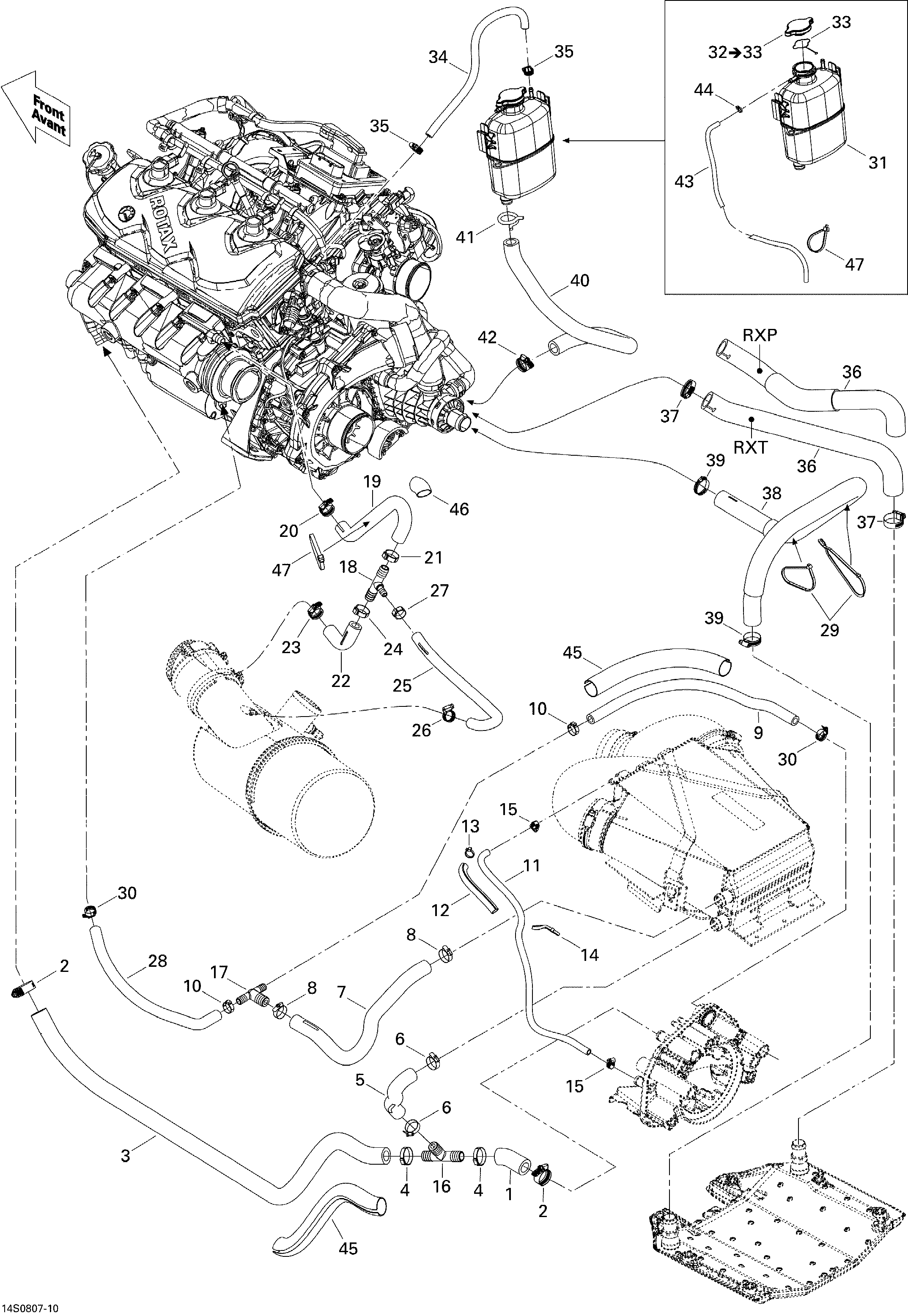

01- Cooling System для BRP RXT X 255 - 2008
-
№АртикулНазвание
-
1276000158 Hose 19 mmHose 19 mm
-
2293650051 Tridon Gear ClampTridon Gear Clamp
-
3276000158 Hose 19 mmHose 19 mm
-
4293650099 Oetiker Gear ClampOetiker Gear Clamp
-
5276000181 Formed HoseFormed Hose
-
6293650051 Tridon Gear ClampTridon Gear Clamp
-
7276000183 Formed HoseFormed Hose
-
8293650051 Tridon Gear ClampTridon Gear Clamp
-
9276000151 Hose 12.5 mmHose 12.5 mm
-
10293650012 Oetiker ClampOetiker Clamp
-
11275500548 Hose 5/16''Hose 5/16''
-
12415080000 Tubing 16 mmTubing 16 mm
-
13293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
14414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
15293650171 Tridon Hose ClampTridon Hose Clamp
-
16293710131 T-FittingT-Fitting
-
17293710132 T-FittingT-Fitting
-
18293710116 T-FittingT-Fitting
-
19276000191 Formed HoseFormed Hose
-
20293650172 Tridon ClampTridon Clamp
-
21293650012 Oetiker ClampOetiker Clamp
-
22276000137 Lower Formed HoseLower Formed Hose
-
23293650172 Tridon ClampTridon Clamp
-
24293650012 Oetiker ClampOetiker Clamp
-
25276000209 Formed HoseFormed Hose
-
26293650171 Tridon Hose ClampTridon Hose Clamp
-
27293650030 Oetiker ClampOetiker Clamp
-
28276000151 Hose 12.5 mmHose 12.5 mm
-
29293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
30293650172 Tridon ClampTridon Clamp
-
31276000086 Coolant TankCoolant Tank
-
32276000100 Pressure Cap Ass'y. Includes 32 to 33Pressure Cap Ass'y. Includes 32 to 33
-
33276000127 LatchLatch
-
34275500549 Hose 1/4''Hose 1/4''
-
35293650170 Hose ClampHose Clamp
-
36276000153 RH Radiator HoseRH Radiator Hose
-
37293650045 Tridon Gear ClampTridon Gear Clamp
-
38276000195 LH Radiator HoseLH Radiator Hose
-
39293650045 Tridon Gear ClampTridon Gear Clamp
-
40276000184 Formed Return HoseFormed Return Hose
-
41293650115 Spring ClampSpring Clamp
-
42293650019 Tridon ClampTridon Clamp
-
43415080200 Polyurethane HosePolyurethane Hose
-
44293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
45409902200 Tubing 25 mmTubing 25 mm
-
46276000162 Shrink TubingShrink Tubing
-
47414115200 Tie-Rap 180 mmTie-Rap 180 mm
