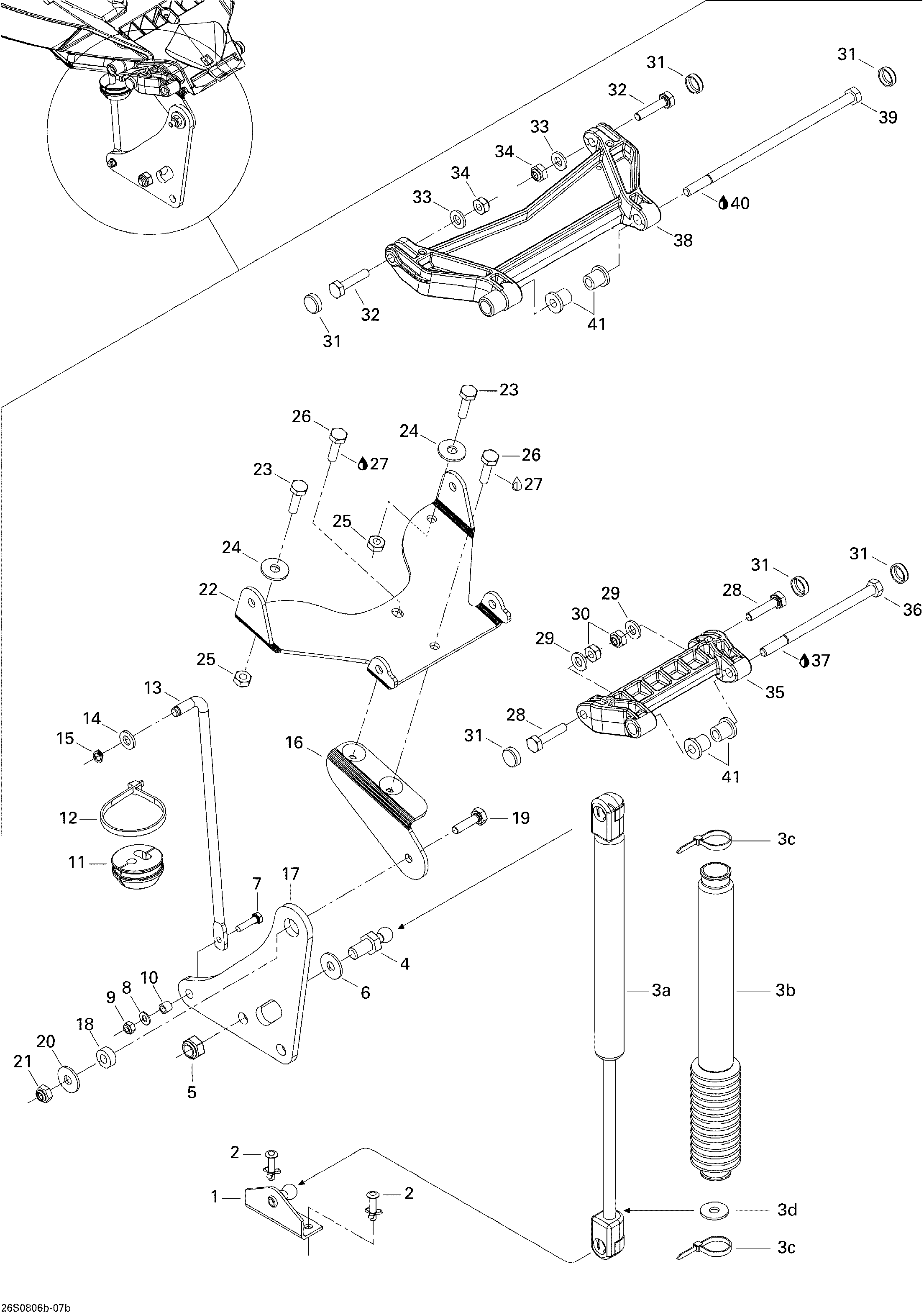

09- Front Storage Compartment 2 для BRP RXT X 255 - 2008
-
№АртикулНазвание
-
1291002124 Shock SupportShock Support
-
2293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
3a269501625 Gas Shock Ass'yGas Shock Ass'y
-
3b269501557 BellowBellow
-
3c293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
3d250200033 Flat Washer, AluminumFlat Washer, Aluminum
-
4250300016 Ball StudBall Stud
-
5232581200 Brass Hex. Elastic Nut, M8Brass Hex. Elastic Nut, M8
-
6250200022 Flat Washer M6.6 X 22Flat Washer M6.6 X 22
-
7207141660 Hex. Screw M4 X 16Hex. Screw M4 X 16
-
8234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
9232541600 Elastic Stop Nut M4Elastic Stop Nut M4
-
10269501130 SpacerSpacer
-
11293720070 Cable GrommetCable Grommet
-
12414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
13269500842 RodRod
-
14234061600 Flat Washer M6Flat Washer M6
-
15293370005 Circlip 6 mmCirclip 6 mm
-
16269500846 Support LeverSupport Lever
-
17269501576 LeverLever
-
18269501172 SpacerSpacer
-
19207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
20234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
21232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
22269501639 Pivot SupportPivot Support
-
23207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
24234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
25232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
26207162060 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
27293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
28211000022 Hex. Special Screw M6 X 25Hex. Special Screw M6 X 25
-
29234061600 Flat Washer M6Flat Washer M6
-
30232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
31414436900 Snap Cap, BlackSnap Cap, Black
-
32211000022 Hex. Special Screw M6 X 25Hex. Special Screw M6 X 25
-
33234061600 Flat Washer M6Flat Washer M6
-
34232561200 Brass Elastic Stop Nut, M6Brass Elastic Stop Nut, M6
-
35269501482 Front ArmFront Arm
-
36230060060 Hex. Screw M6 X 100Hex. Screw M6 X 100
-
37293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
38269501481 Rear ArmRear Arm
-
39230065060 Hex. Screw M6 X 150Hex. Screw M6 X 150
-
40293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
41269500706 SleeveSleeve
