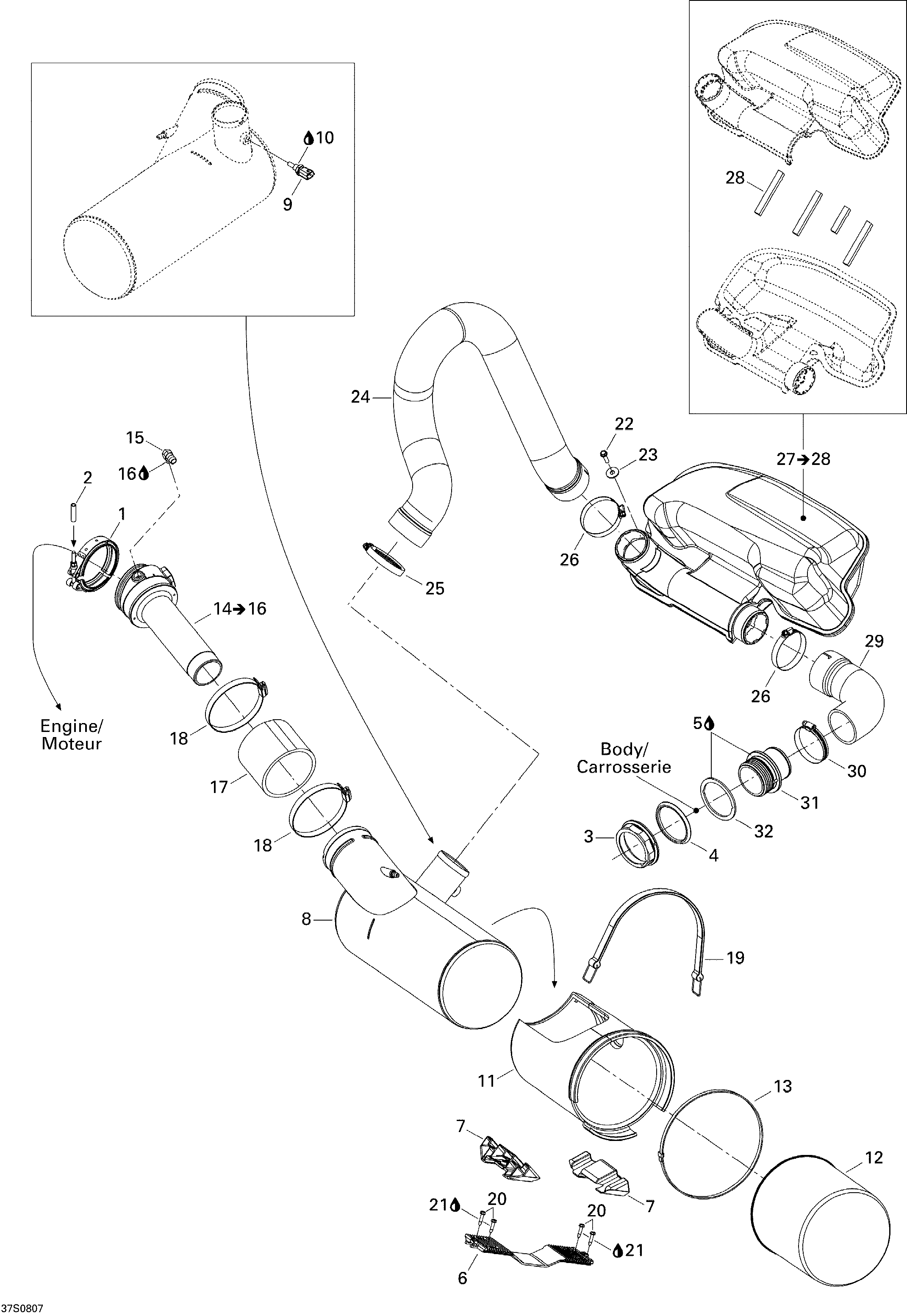

01- Exhaust System для BRP RXT X 255 - 2008
-
№АртикулНазвание
-
1274001347 Exhaust ClampExhaust Clamp
-
2415080200 Polyurethane HosePolyurethane Hose
-
3274000224 Nut 72 mmNut 72 mm
-
4274000225 Stabilizing WasherStabilizing Washer
-
5296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
6274001357 Exhaust SupportExhaust Support
-
7274001358 StopperStopper
-
8274001350 MufflerMuffler
-
9278001016 Temperature SensorTemperature Sensor
-
10293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
11274001351 Muffler CoverMuffler Cover
-
12274001344 Muffler CoverMuffler Cover
-
13293750020 Tie-Rap 838 mmTie-Rap 838 mm
-
14274001354 Head Pipe Ass'y. Includes 14 to 16Head Pipe Ass'y. Includes 14 to 16
-
15293700023 Elbow Fitting 90°Elbow Fitting 90°
-
16293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
17274001348 Exhaust HoseExhaust Hose
-
18293650054 Tridon ClampTridon Clamp
-
19293850067 Fuel Tank StrapFuel Tank Strap
-
20211000023 Hex. Screw 10-14 X 7/8''Hex. Screw 10-14 X 7/8''
-
21293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
22243162560 Hex. Flanged Screw M6.3 X 25, PlastiteHex. Flanged Screw M6.3 X 25, Plastite
-
23234082600 Flat Washer 8 mmFlat Washer 8 mm
-
24274001359 Exhaust Hose, FrontExhaust Hose, Front
-
25293650179 Tridon Gear ClampTridon Gear Clamp
-
26293650179 Tridon Gear ClampTridon Gear Clamp
-
27274001366 Resonator. Includes 27 to 28Resonator. Includes 27 to 28
-
28293200003 Seal, MeterSeal, Meter
-
29274001299 Exhaust Hose, RearExhaust Hose, Rear
-
30293650179 Tridon Gear ClampTridon Gear Clamp
-
31274000843 Exhaust OutletExhaust Outlet
-
32293250180 GasketGasket
