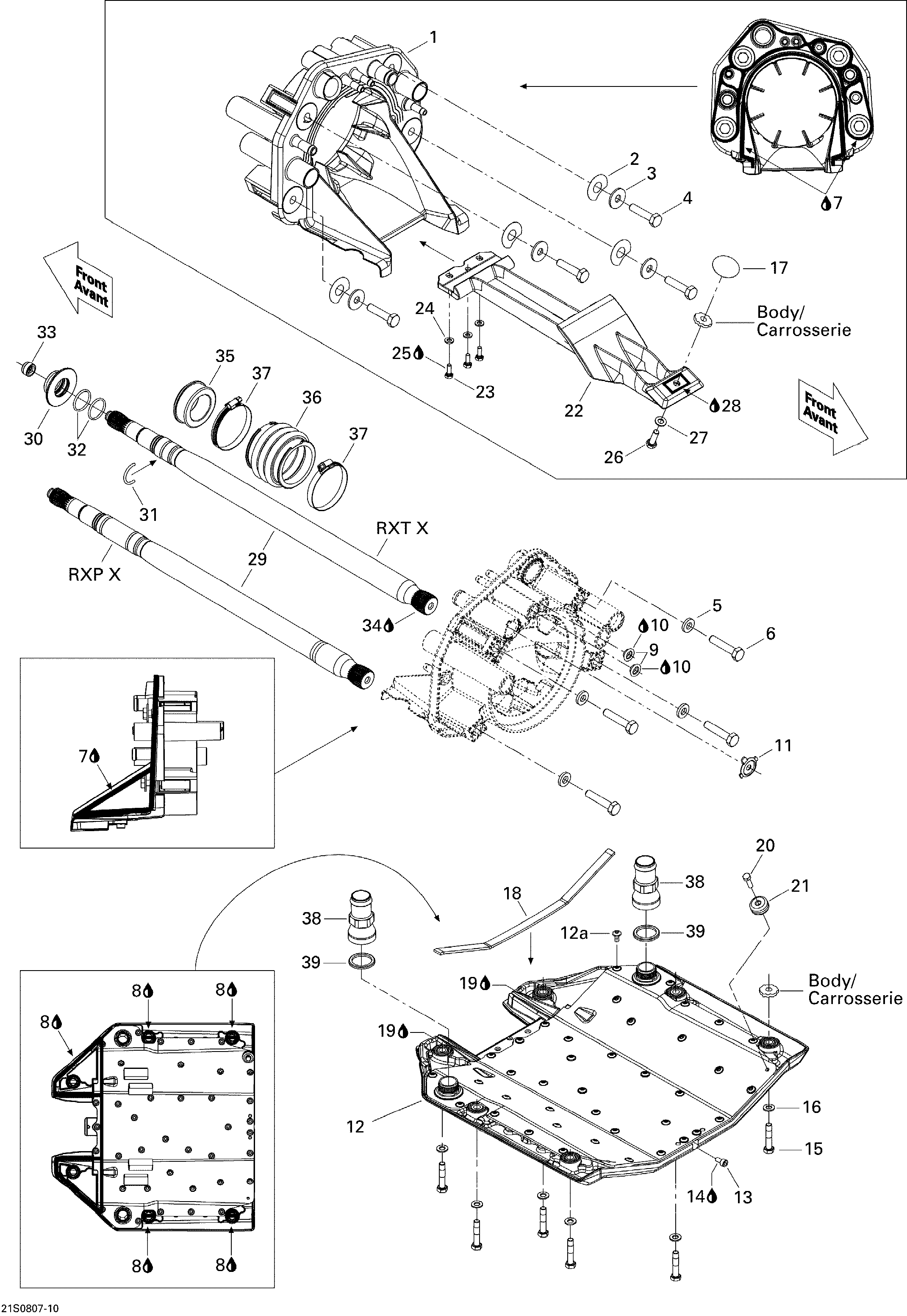

05- Propulsion для BRP RXT X 255 - 2008
-
№АртикулНазвание
-
1271001579 Pump SupportPump Support
-
2272000053 Shim, 0.3 mmShim, 0.3 mm
-
3234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
4250000189 Hex. Screw M10 X 45, Scotch GripHex. Screw M10 X 45, Scotch Grip
-
5211200051 Flat WasherFlat Washer
-
6250000188 Hex. Screw M10 X 50, Scotch GripHex. Screw M10 X 50, Scotch Grip
-
7293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
8293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
9293250084 Watertight SealWatertight Seal
-
10293800038 Loctite 518, 50 mlLoctite 518, 50 ml
-
11271001586 Reducer, GreenReducer, Green
-
12271001603 Riding PlateRiding Plate
-
12a250000064 ScrewScrew
-
13250500005 Socket Drain Plug M6 X 12Socket Drain Plug M6 X 12
-
14293800013 Loctite, Pipe Sealant, 250 mlLoctite, Pipe Sealant, 250 ml
-
15250000230 Hex. Screw, Scotch Grip M8 X 40Hex. Screw, Scotch Grip M8 X 40
-
16234081600 Flat Washer 8 mmFlat Washer 8 mm
-
18293250087 GasketGasket
-
19293800066 Sealant, Loctite 5900, 300 mlSealant, Loctite 5900, 300 ml
-
20207362060 Hex. Screw M6 X 20, Scotch GripHex. Screw M6 X 20, Scotch Grip
-
21271001487 Anode ZincAnode Zinc
-
22271001581 Pump GratePump Grate
-
23207161660 Hex. Screw M6 X 16Hex. Screw M6 X 16
-
24234061600 Flat Washer M6Flat Washer M6
-
25293800005 Loctite 271, 10 mlLoctite 271, 10 ml
-
26207383060 Hex. Screw M8 X 30, Scotch GripHex. Screw M8 X 30, Scotch Grip
-
27234081600 Flat Washer 8 mmFlat Washer 8 mm
-
28296000309 Sealant Silicone, ClearSealant Silicone, Clear
-
29271001585 Drive ShaftDrive Shaft
-
30271001434 Support RingSupport Ring
-
31271001577 C-ClipC-Clip
-
32293300107 O-RingO-Ring
-
33272000173 Drive Shaft PlugDrive Shaft Plug
-
34293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
35271001420 Carbon RingCarbon Ring
-
36271001422 BellowBellow
-
37293650079 Norma ClampNorma Clamp
-
38293710111 Straight Plastic FittingStraight Plastic Fitting
-
39293300121 O-RingO-Ring
