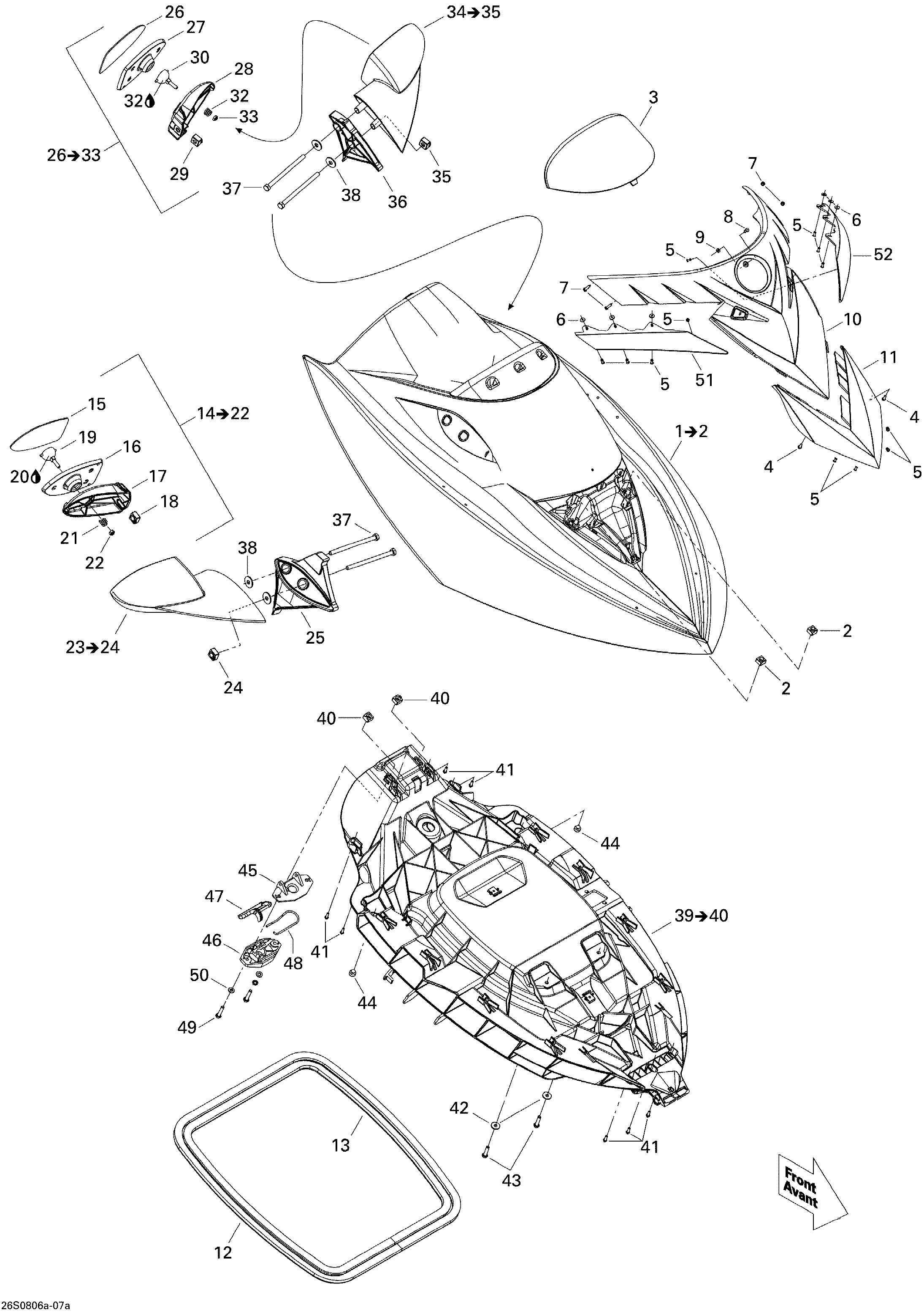

09- Front Storage Compartment 1 для BRP RXT X 255 - 2008
-
№АртикулНазвание
-
1269501685 Upper Storage Cover. Includes 1 to 2Upper Storage Cover. Includes 1 to 2
-
2269501166 Nut Housing Ass'yNut Housing Ass'y
-
3269501686 DeflectorDeflector
-
4241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
5293150001 Pop Rivet 1/8''Pop Rivet 1/8''
-
6293150007 WasherWasher
-
7241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
8293150029 Pop Rivet 5/32''Pop Rivet 5/32''
-
9234040600 Flat Washer 4 mmFlat Washer 4 mm
-
10269501690 Front FasciaFront Fascia
-
11269501407 Front Deflector, ChromeFront Deflector, Chrome
-
12293200093 Neoprene SealNeoprene Seal
-
13293200093 Neoprene SealNeoprene Seal
-
14269501633 RH Mirror Ass'y. Includes 14 to 22RH Mirror Ass'y. Includes 14 to 22
-
16269501330 Mirror FrameMirror Frame
-
17269501331 Housing SupportHousing Support
-
18269501387 Nut Housing Ass'yNut Housing Ass'y
-
19269501333 Mirror Ball JointMirror Ball Joint
-
20293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
21269501334 Mirror SpringMirror Spring
-
22232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
23269501687 Mirror Sheel. Includes 23 to 24Mirror Sheel. Includes 23 to 24
-
24269501387 Nut Housing Ass'yNut Housing Ass'y
-
25269501600 RH SpacerRH Spacer
-
26269501634 LH Mirror. Includes 26 to 33LH Mirror. Includes 26 to 33
-
27269501330 Mirror FrameMirror Frame
-
28269501331 Housing SupportHousing Support
-
29269501387 Nut Housing Ass'yNut Housing Ass'y
-
30269501333 Mirror Ball JointMirror Ball Joint
-
31293550010 Synthetic Grease, 400 GSynthetic Grease, 400 G
-
32269501334 Mirror SpringMirror Spring
-
33232561600 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34269501688 Mirror Sheel. Includes 34 to 35Mirror Sheel. Includes 34 to 35
-
35269501387 Nut Housing Ass'yNut Housing Ass'y
-
36269501601 LH SpacerLH Spacer
-
37230082060 Hex. Screw M8 X 120Hex. Screw M8 X 120
-
38234082600 Flat Washer 8 mmFlat Washer 8 mm
-
39269501575 Lower Storage Cover Ass'y. Includes 39 to 40Lower Storage Cover Ass'y. Includes 39 to 40
-
40269501166 Nut Housing Ass'yNut Housing Ass'y
-
41241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
42234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
43207162560 Hex. Screw M6 X 25Hex. Screw M6 X 25
-
44293830005 Rubber Plug, BlackRubber Plug, Black
-
45269700076 Latch CoverLatch Cover
-
46269000015 Latch BaseLatch Base
-
47269700077 Latch LeverLatch Lever
-
48269700017 Latch SpringLatch Spring
-
49207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
50234061600 Flat Washer M6Flat Washer M6
-
51269501409 RH Deflector, ChromeRH Deflector, Chrome
-
52269501410 LH Deflector, ChromeLH Deflector, Chrome
