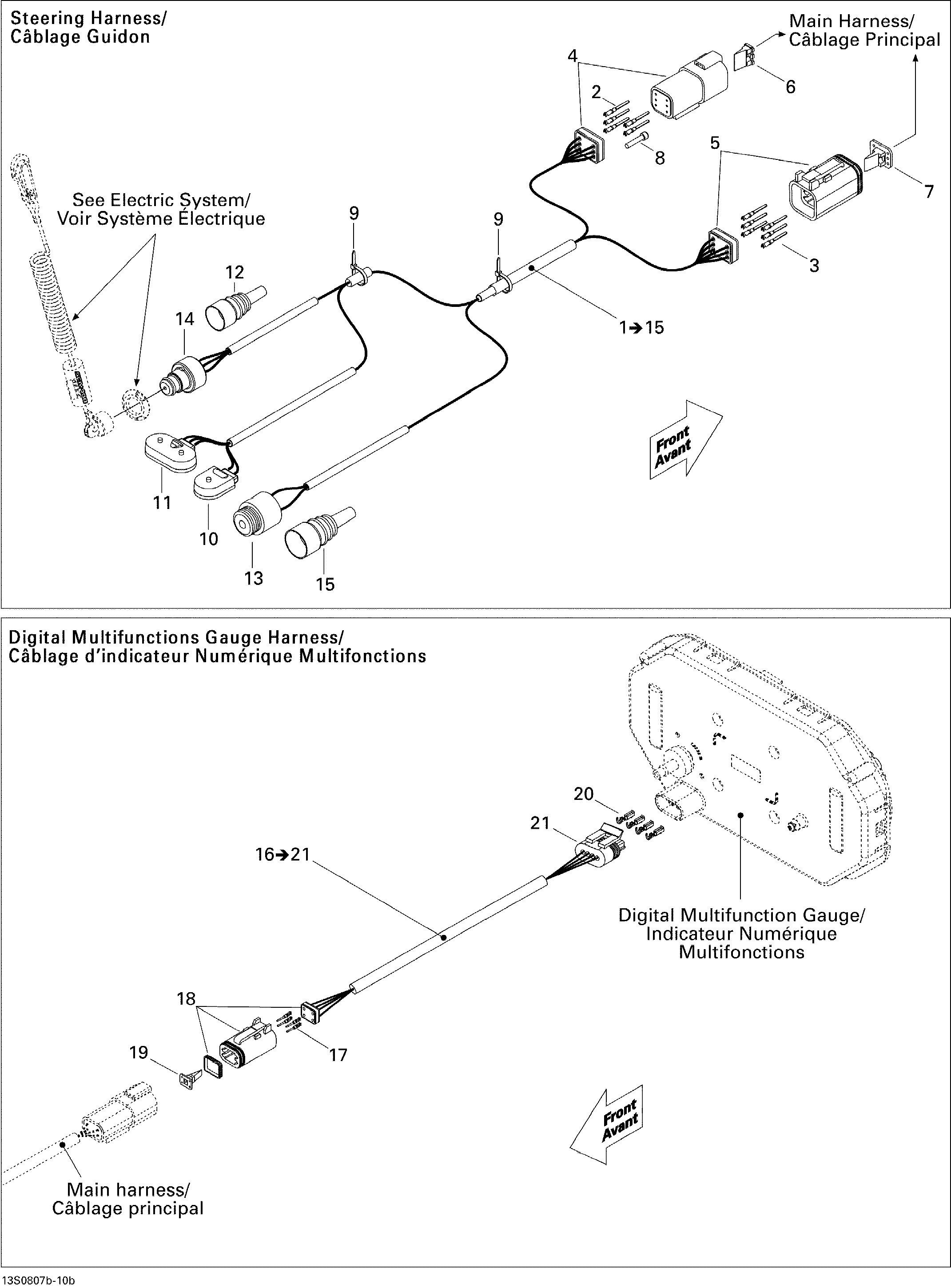

10- Electrical Harness для BRP RXT X 255 - 2008
-
№АртикулНазвание
-
1278002384 Steering Harness. Includes 1 to 15Steering Harness. Includes 1 to 15
-
2278000631 Male TerminalMale Terminal
-
3278000632 Female TerminalFemale Terminal
-
4270000137 Female Connector, 6 CircuitsFemale Connector, 6 Circuits
-
5278000736 Male Connector, 6 CircuitsMale Connector, 6 Circuits
-
6278000735 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
7278000737 (Female) Secondary Lock (6 Circuits) (Deutsch)(Female) Secondary Lock (6 Circuits) (Deutsch)
-
8293000052 Sealing CapSealing Cap
-
9293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
10278001733 Start/Stop SwitchStart/Stop Switch
-
11278002156 VTS SwitchVTS Switch
-
12278002263 BootBoot
-
13278002294 BuzzerBuzzer
-
14278002351 Safety SwitchSafety Switch
-
15278002296 BootBoot
-
16278002111 Digital Multifunction Gauge Harness. Includes 16 to 21Digital Multifunction Gauge Harness. Includes 16 to 21
-
17278000632 Female TerminalFemale Terminal
-
18278000739 Male Connector, 4 CircuitsMale Connector, 4 Circuits
-
19278000738 Male Lock, 4 CircuitsMale Lock, 4 Circuits
-
20278001114 Female TerminalFemale Terminal
-
21278001308 Male Connector, 4 CircuitsMale Connector, 4 Circuits
