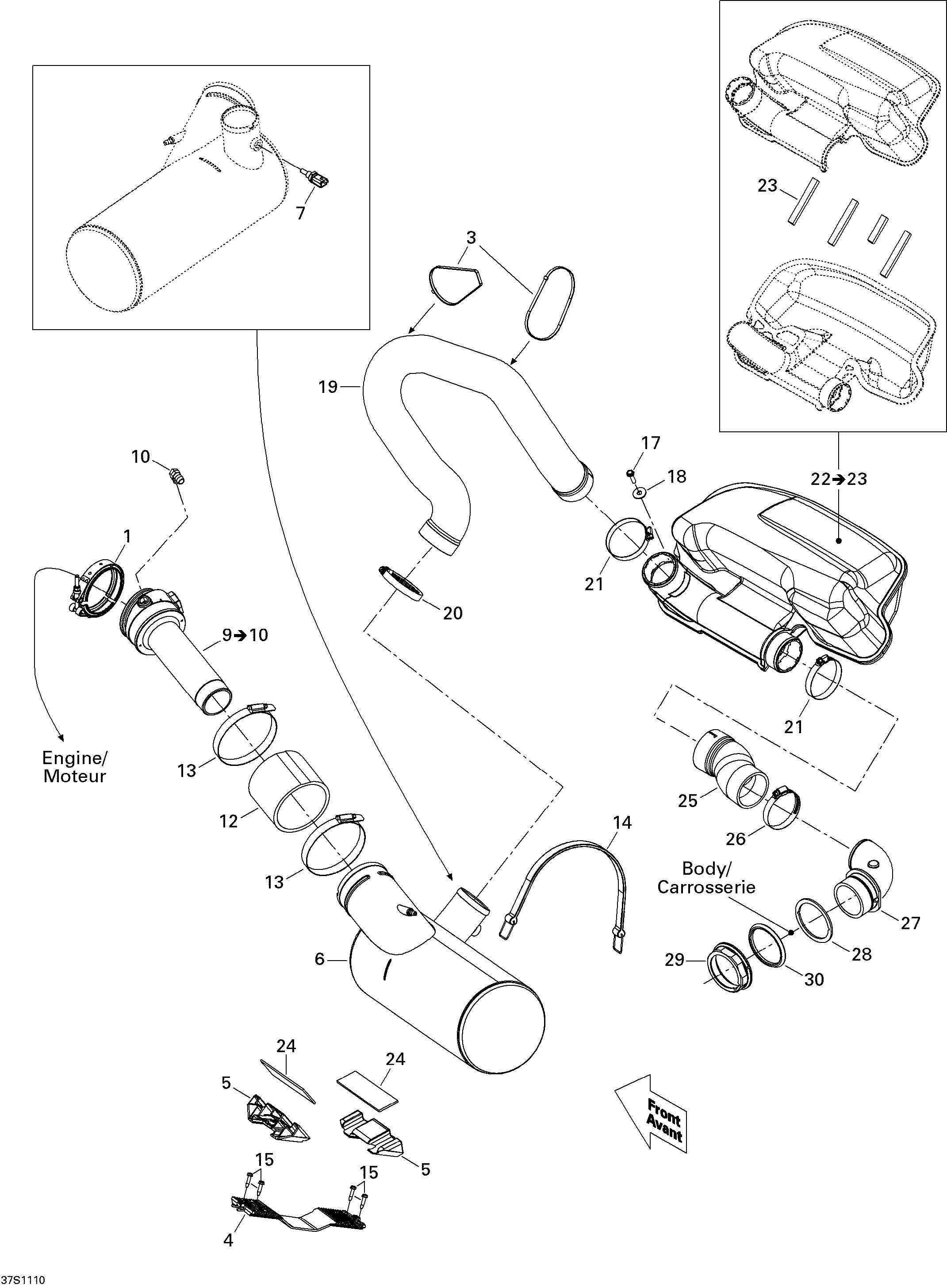

01- Exhaust System для BRP RXP-X 255 & RS - 2011
-
№АртикулНазвание
-
1274001417 Exhaust ClampExhaust Clamp
-
3293750047 Tie Rap, 533 mmTie Rap, 533 mm
-
4274001357 Exhaust SupportExhaust Support
-
5274001358 StopperStopper
-
6274001350 MufflerMuffler
-
7278001016 Temperature SensorTemperature Sensor
-
9274001354 Head Pipe Ass'y. Includes 9 to 10Head Pipe Ass'y. Includes 9 to 10
-
10293700023 Elbow Fitting 90°Elbow Fitting 90°
-
12274001348 HoseHose
-
13293650202 Gear ClampGear Clamp
-
14293850093 StrapStrap
-
15293150043 Pop Rivet 3/16''Pop Rivet 3/16''
-
17243162560 Hex. Flanged Screw M6.3 X 25, PlastiteHex. Flanged Screw M6.3 X 25, Plastite
-
18234082600 Flat Washer 8 mm, StainlessFlat Washer 8 mm, Stainless
-
19274001426 Front Exhaust HoseFront Exhaust Hose
-
20293650179 Tridon Gear ClampTridon Gear Clamp
-
21293650179 Tridon Gear ClampTridon Gear Clamp
-
22274001366 Resonator. Includes 22 to 23Resonator. Includes 22 to 23
-
23293200003 Neoprene Seal, MeterNeoprene Seal, Meter
-
24293830126 Rubber PadRubber Pad
-
25274001427 Rear Exhaust HoseRear Exhaust Hose
-
26293650179 Tridon Gear ClampTridon Gear Clamp
-
27274001389 Exhaust Hose, OutletExhaust Hose, Outlet
-
28293250203 GasketGasket
-
29274000224 Nut 72 mmNut 72 mm
-
30274000225 Stabilizing WasherStabilizing Washer
