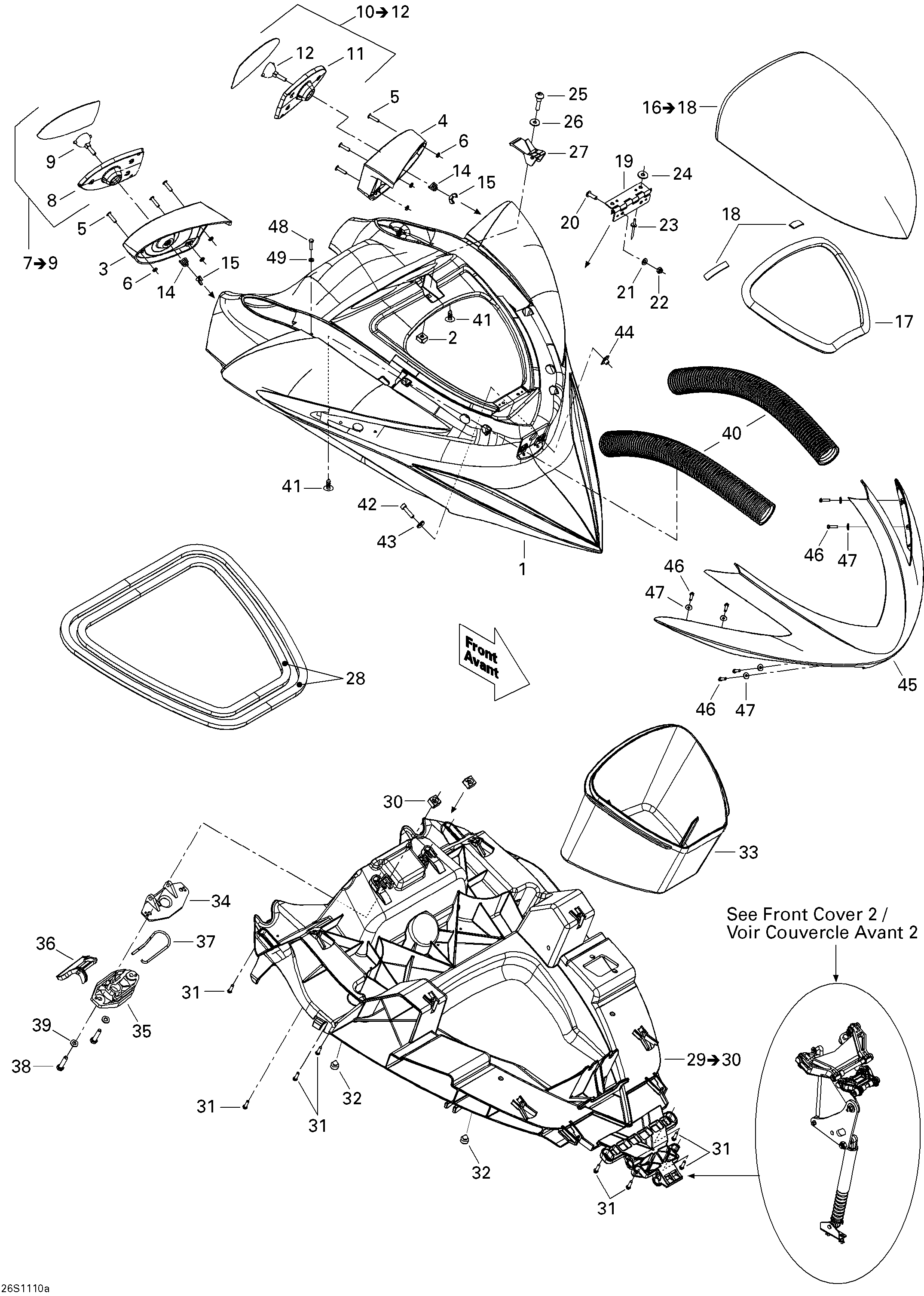

09- Front Cover 1 для BRP RXP-X 255 & RS - 2011
-
№АртикулНазвание
-
1269501774 Upper Storage CoverUpper Storage Cover
-
2269501166 Nut Housing Ass'yNut Housing Ass'y
-
3269501775 RH Mirror HousingRH Mirror Housing
-
4269501776 LH Mirror HousingLH Mirror Housing
-
5293150005 Pop Rivet 3/16''Pop Rivet 3/16''
-
6213200016 Flat Washer, EmhartFlat Washer, Emhart
-
7269501633 RH Mirror Ass'y. Includes 7 to 9RH Mirror Ass'y. Includes 7 to 9
-
8269500697 Frame MirrorFrame Mirror
-
9269500079 Mirror Ball JointMirror Ball Joint
-
10269501634 LH Mirror. Includes 10 to 12LH Mirror. Includes 10 to 12
-
11269500697 Frame MirrorFrame Mirror
-
12269500079 Mirror Ball JointMirror Ball Joint
-
14269500453 Mirror SpringMirror Spring
-
15232661600 Wing Nut M6Wing Nut M6
-
16269501777 Access Cover Ass'yAccess Cover Ass'y
-
17293250087 Gasket, NeopreneGasket, Neoprene
-
18293200020 Seal, MeterSeal, Meter
-
19269500338 HingeHinge
-
20205451660 Socket Head Screw M5 X 16. North AmericaSocket Head Screw M5 X 16. North America
-
21234051600 Flat Washer M5. North AmericaFlat Washer M5. North America
-
22232551200 Elastic Stop Nut 5 mm. North AmericaElastic Stop Nut 5 mm. North America
-
23204000081 Pop Rivet 3/16''Pop Rivet 3/16''
-
24234052600 Flat Washer 5 mm, StainlessFlat Washer 5 mm, Stainless
-
25291001242 Anchoring StudAnchoring Stud
-
26234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
27269501487 LatchLatch
-
28293200093 Neoprene SealNeoprene Seal
-
28293200093 Neoprene SealNeoprene Seal
-
29269501683 Lower Storage Cover. Includes 29 to 30Lower Storage Cover. Includes 29 to 30
-
30269501166 Nut Housing Ass'yNut Housing Ass'y
-
31241141360 Hex. Flanged Screw K40 X 13Hex. Flanged Screw K40 X 13
-
32293830005 Rubber PlugRubber Plug
-
33269501133 Storage BoxStorage Box
-
34269700076 Latch CoverLatch Cover
-
35269700109 Latch Ass'yLatch Ass'y
-
36269700077 Latch LeverLatch Lever
-
37269700017 Latch SpringLatch Spring
-
38207063060 Hex. Screw M6 X 30Hex. Screw M6 X 30
-
39234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
40291002489 Ventilaltion Hose (Black)Ventilaltion Hose (Black)
-
41293730011 Dart, BlackDart, Black
-
42205562060 Socket Head Screw M6 X 20, Scotch GripSocket Head Screw M6 X 20, Scotch Grip
-
43234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
44293100003 Nut M6Nut M6
-
45269501238 Front GrillFront Grill
-
46241141660 Flanged Hex. Screw K40 X 16Flanged Hex. Screw K40 X 16
-
47234042600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
48243163560 Plastite Hex. Screw M6.8 X 35Plastite Hex. Screw M6.8 X 35
-
49234062600 Flat Washer M6, StainlessFlat Washer M6, Stainless
